Aneta Lighting
Scanstrip BRIGHT-27 IP20
Part number71016-01EAN / GTIN7041661270466HS code8539.52
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

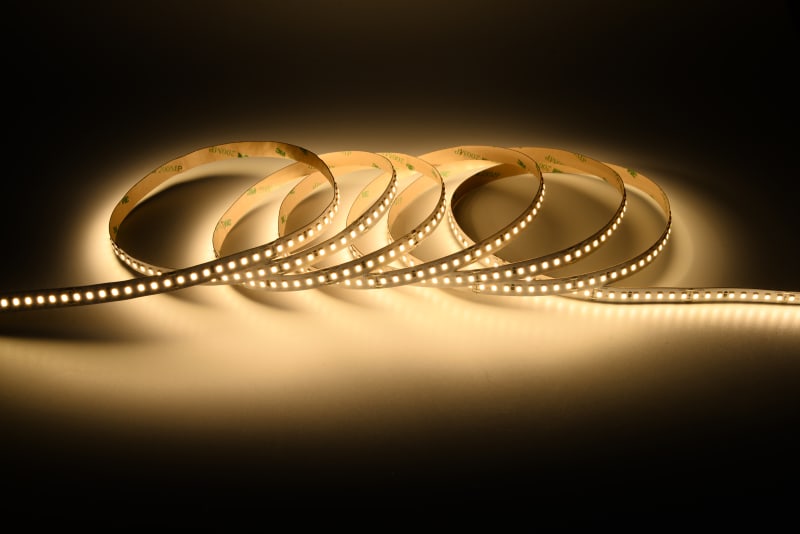

Aneta Lighting 71016-01 Scanstrip BRIGHT-27 IP20 14,4W/m 2700K LED strip.
Technical Specifications
- Manufacturer part number (MPN)
- 71016-01
- EAN / GTIN
- 7041661270466
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 25 pcs
- IP rating
- IP20
- Model
- Strip
- Mounting method
- Surface mounting/recessed mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 160
- Number of nodes per foot
- 49
- Lamp power per meter
- 14.4 W
- Lamp power per foot
- 4.4 W
- Luminous flux per meter
- 1872 lm
- Voltage type
- DC
- Lamp voltage
- 24 V
- Beam angle
- 120 °
- Type of control gear
- LED operating device voltage-controlled
- Suitable for dimmer
- Yes
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- III
- Max. system power
- 72 W
- Colour of light
- White
- Constant light output (CLO)
- No
- Colour temperature
- 2700 K
- Colour rendering index CRI
- 90-100
- Luminous flux adjustable
- Continuously variable
- Width
- 10 mm
- Height/depth
- 1.2 mm
- Length
- 5000 mm
- Lowest bending radius
- 60 mm
- Length of particular segments
- 50 mm
- With end piece
- No
- With connection set
- No
- With protective cover
- No
- Self-adhesive
- Yes
- Type of wiring
- Loop-through wiring included
- Number of poles
- 2
- Conductor cross section
- 0.5 mm²
- Connection type
- Solder
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 7041661270466
- SAP 1200815332
- Code 84007023
Product Documentation
Document preview: Scanstrip BRIGHT-27 IP20 (71016-01) — Specification sheet
