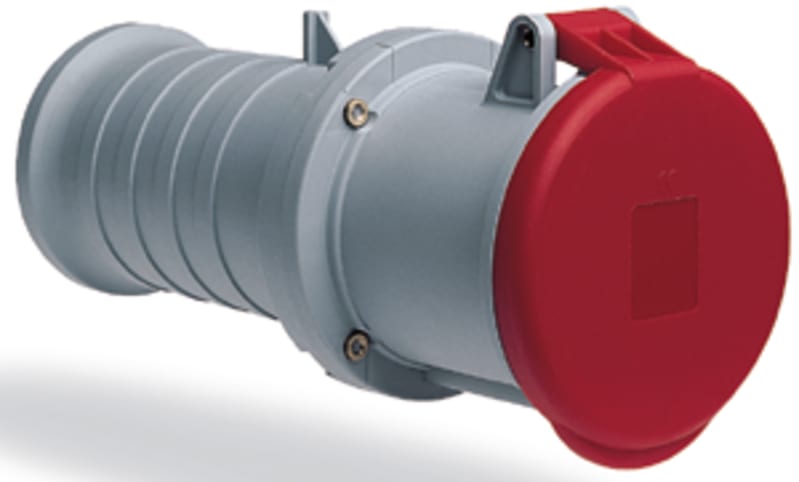

Amphenol CSG 363-6 Panel Connector 63 A 4-Pole 400 V IP44
Pricing
Request a quote
We reply within 24 hours
Product Description
Amphenol 2CMA166850R1000 is a CEE-type panel-mount connector rated 63 A, 4-pole, 380-415 V AC at 6 h clock position, red-identified for three-phase circuits. Straight insert direction with screw terminals and an anti-kink cable sleeve, protection class IP44. Plastic housing with CuZn contacts.
Technical Specifications
- Manufacturer part number (MPN)
- 2CMA166850R1000
- EAN / GTIN
- 7392696668507
- Sales unit
- pcs
- IP rating
- IP44
- IEC-amperage
- 63 A
- Amperage according to UL/CSA (for UL-version)
- 63 A
- Number of poles
- 4
- Voltage according to EN 60309-2
- 380-415 V (50+60 Hz) red
- Clock hour position
- 6 h
- Identification colour
- Red
- RAL-number
- 7001
- Degree of protection (IP)
- IP44
- Connection system
- Screwed terminal
- Insert direction
- Straight
- Cable entry
- Anti-kink sleeve
- Material
- Plastic
- Contact material
- CuZn
- Military model
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7392696668507
- SAP 1000025042
- Code 8195271
Product Documentation
