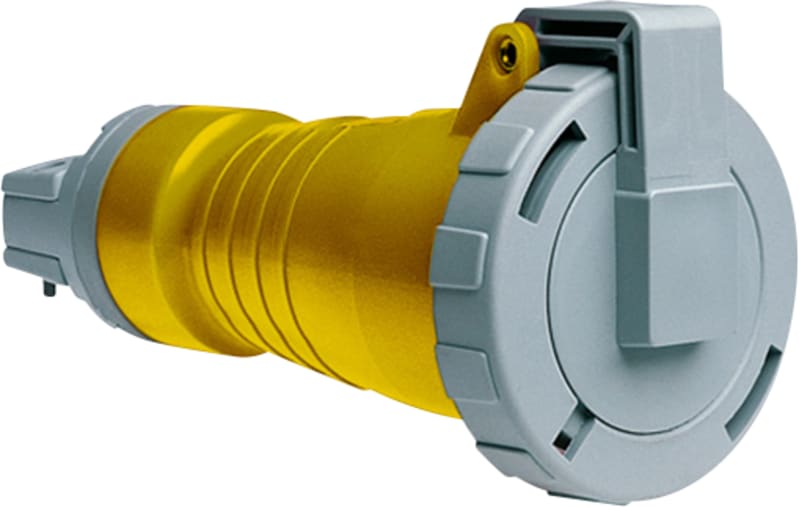

Amphenol IPS HDS 216C4W IP67 industrial connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Amphenol 2CMA100598R1000 is an IP67 industrial connector from the HDS 216-4 range. It provides 3-pole yellow 110 V connection to EN 60309-2, rated 20 A (IEC) or 16 A (UL/CSA) at the 4 h clock position. The plastic housing uses screw terminals with a straight insert direction and an anti-kink cable sleeve.
Technical Specifications
- Manufacturer part number (MPN)
- 2CMA100598R1000
- EAN / GTIN
- 7392696005982
- Sales unit
- pcs
- IP rating
- IP67
- IEC-amperage
- 20 A
- Amperage according to UL/CSA (for UL-version)
- 16 A
- Number of poles
- 3
- Voltage according to EN 60309-2
- 110 V (50+60 Hz) yellow
- Clock hour position
- 4 h
- Identification colour
- Yellow
- RAL-number
- 7001
- Degree of protection (IP)
- IP67
- Connection system
- Screwed terminal
- Insert direction
- Straight
- Cable entry
- Anti-kink sleeve
- Material
- Plastic
- Military model
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7392696005982
- SAP 1000046890
- Code 8788147
Product Documentation
