Amphenol

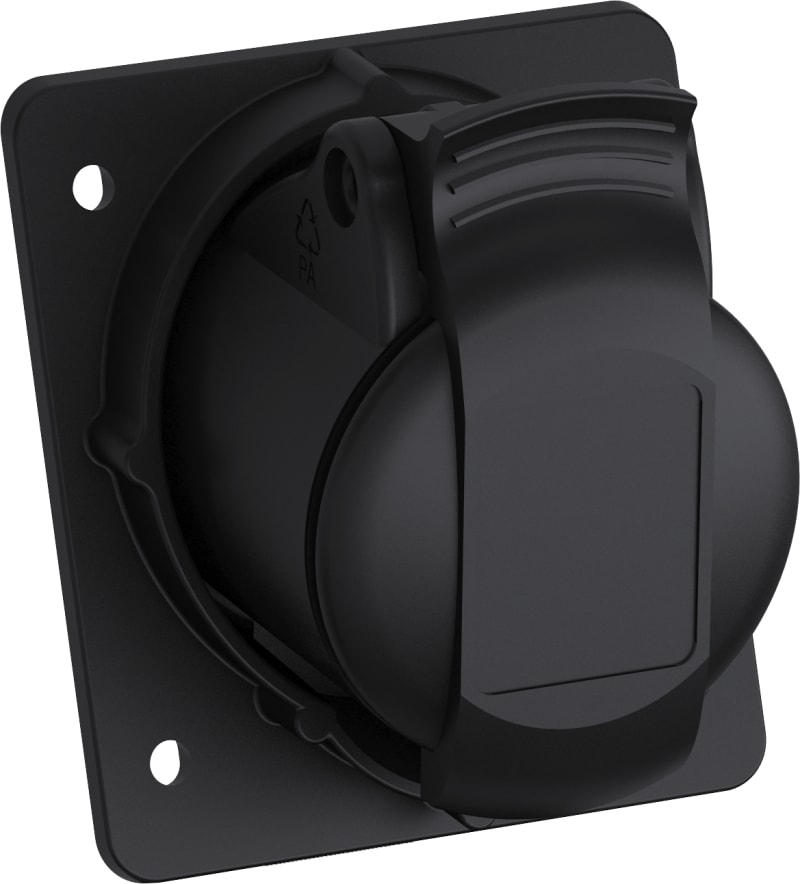

IPS E&s 316RAM6B SO PA.SOCKET
Part number2CMA100544R1000EAN / GTIN7392696005449HS code8536.90
Electrical Components
Industrial Plugs & Sockets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Amphenol 2CMA100544R1000 IPS EASY&SAFE 316RAM6B BLACK PANEL-SOCKET OUTLET.
Technical Specifications
- Manufacturer part number (MPN)
- 2CMA100544R1000
- EAN / GTIN
- 7392696005449
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- RAL-number
- 7001
- Number of poles
- 4
- Rated frequency
- 50–60 Hz
- Material
- Plastic
- IEC-amperage
- 16 A
- Amperage according to UL/CSA (for UL-version)
- 16 A
- Connection system
- Screwed terminal
- Insert direction
- Angled
- Rated voltage
- 380–415 V
- Degree of protection (IP)
- IP44
- Military model
- No
- Clock hour position
- 6 h
- Identification colour
- Red
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Drill hole distance vertical
- 66 mm
- Drill hole distance horizontal
- 66 mm
- Flange size vertical
- 89 mm
- Flange size horizontal
- 83 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7392696005449
- SAP 1000643336
- Code 8419557
Product Documentation
Document preview: IPS E&s 316RAM6B SO PA.SOCKET (2CMA100544R1000) — Specification sheet
More from Amphenol
Amphenol
IPS HISV 332BAU11W APP.INN IP6
2CMA166654R1000
Amphenol
IPS CIV 3125BU9W (2CMA167200R1000)
Amphenol
IPS CUBV 363MHS9W IP67
2CMA167901R1000
Amphenol
IPS HVI 363BS6W (2CMA167350R1000)
Amphenol

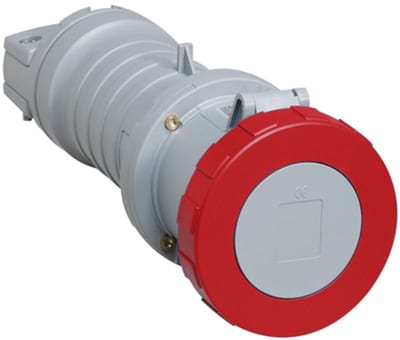

IPS HDS 4125-6 IP67 (2CMA166936R1000)
Amphenol

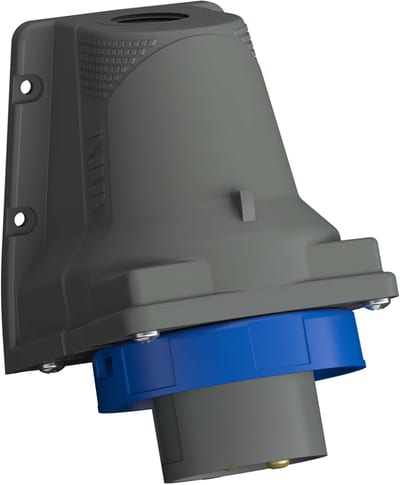

IPS E&S 332EBS9W Device Inlet IP67
2CMA101199R1000
Amphenol

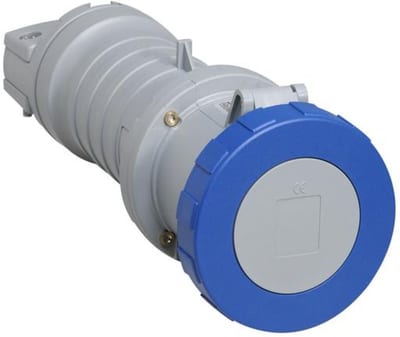

IPS T&s HDS 263C6W SKJ.KO IP67
2CMA166874R1000
Amphenol

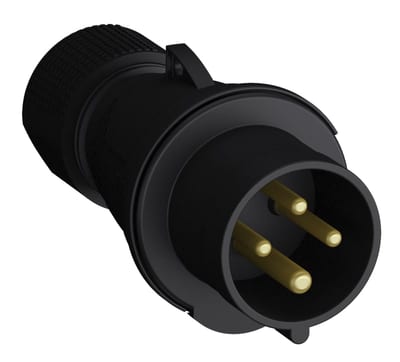

IPS E&s 332EP6B SO PLUG IP44
