Ajax

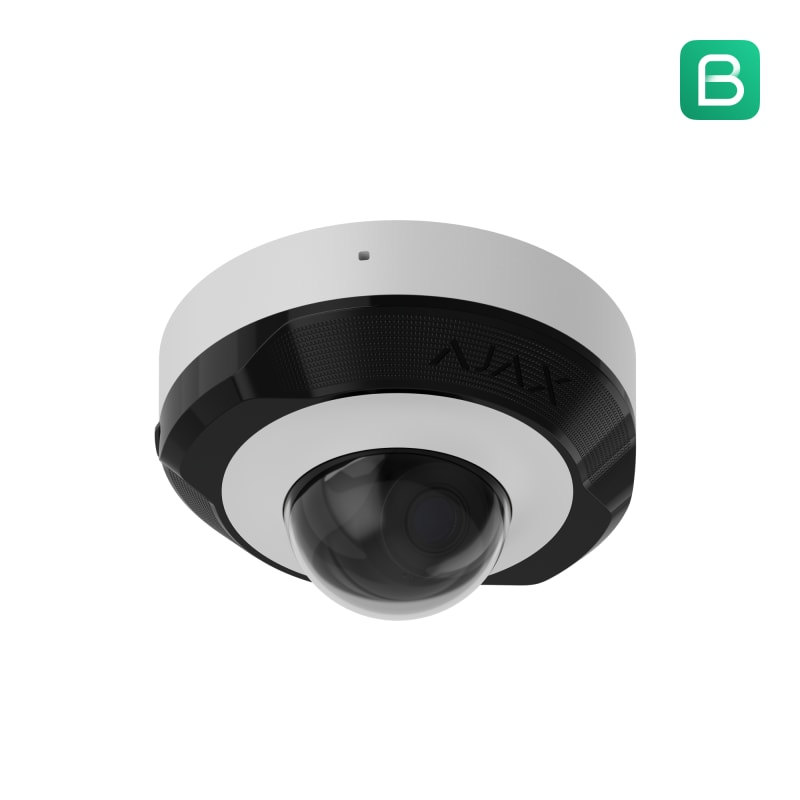

Ajax DomeCam Mini 5 MP/2,8 MM White
Part number76018.214.WH1EAN / GTIN4823114047817HS code8525.89
Safety & Detection
CCTV & Surveillance
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Ajax 76018.214.WH1 Dome Mini in white, 5MP 2.8mm lens, IR up to 30m, with PoE/12V DC and SD slot up to 256GB, WDR, IP65.
Technical Specifications
- Manufacturer part number (MPN)
- 76018.214.WH1
- EAN / GTIN
- 4823114047817
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Mounting method
- Wall/ceiling
- Colour
- White
- Width
- 113 mm
- Height
- 60 mm
- Wireless
- No
- Depth
- 113 mm
- Voltage type
- DC
- Power consumption
- 7.5 W
- Diameter
- 113 mm
- Construction type
- Dome shape
- Memory capacity
- 256 GB
- Picture system
- PAL
- Protocol
- TCP/IP
- Supply voltage
- 12 V
- Focus
- Fixed
- Focal size
- 2.8 mm
- With video motion detector
- Yes
- Degree of protection (IP)
- IP65
- Vandal proof
- Yes
- Scope of application
- Outside
- Number of pixels (Megapixel)
- 5
- Property picture system
- Colour
- With infrared lighting
- Yes
- Power over Ethernet (PoE)
- 802.3 of (PoE)
- With memory card
- No
- With lens
- Yes
- Max. infrared reach
- 30 m
- ONVIF-compliant
- Yes
- Thermal camera
- No
- Modular (lens and camera separated)
- No
- With slot for memory card
- Yes
- Transmission
- TCP/IP
- Country of origin
- Ukraine
Standards & Compliance
- HS Code
- 8525.89
Cross References
- EAN 4823114047817
- SAP 1200705976
- Code 83815535
Product Documentation
Document preview: Ajax DomeCam Mini 5 MP/2,8 MM White (76018.214.WH1) — Specification sheet
