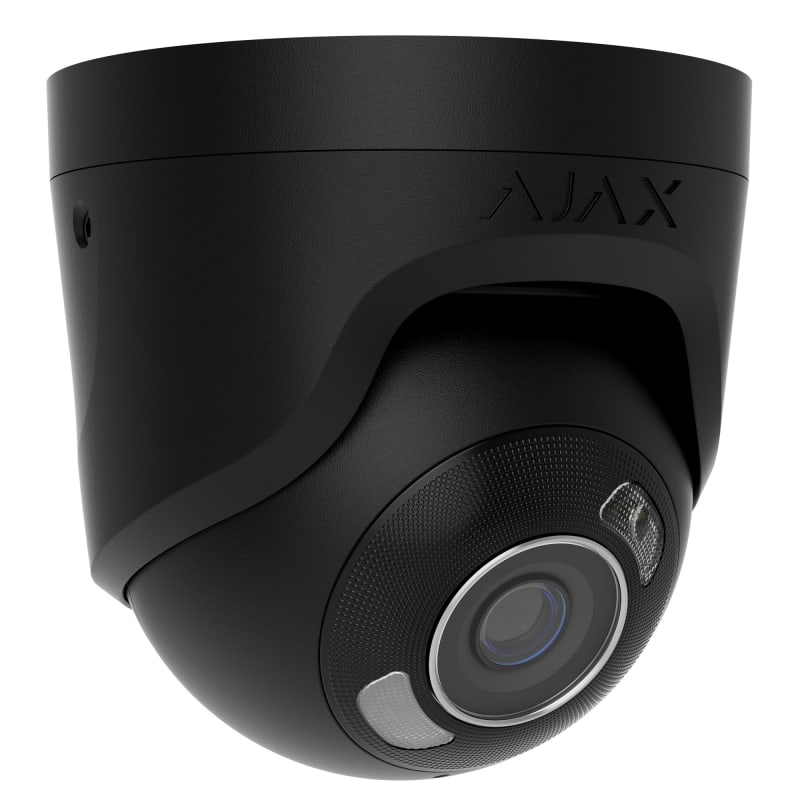

AJAX Turretcam HL 5 MP/2.8 MM Black
Pricing
Request a quote
We reply within 24 hours
Overview
AJAX Turretcam HL 5 MP/2.8 MM Black (part number 126260.197.BL1) is listed under Safety & Detection / CCTV & Surveillance. Sales unit: pcs; Mounting method: Wall/ceiling; Colour: Black; Width: 98 mm; Height: 103 mm; Wireless: No.
Technical Specifications
- Manufacturer part number (MPN)
- 126260.197.BL1
- EAN / GTIN
- 4823114072970
- Sales unit
- pcs
- Mounting method
- Wall/ceiling
- Colour
- Black
- Width
- 98 mm
- Height
- 103 mm
- Wireless
- No
- Depth
- 98 mm
- Voltage type
- DC
- Power consumption
- 8.5 W
- Diameter
- 98 mm
- Construction type
- Turret shape
- Memory capacity
- 256 GB
- Ambient temperature
- -30–60 °C
- Picture system
- PAL
- Protocol
- TCP/IP
- Supply voltage
- 12 V
- Impact strength
- IK08
- Focus
- Fixed
- Focal size
- 2.8 mm
- With video motion detector
- Yes
- Degree of protection (IP)
- IP65
- Vandal proof
- Yes
- Scope of application
- Outside
- Number of pixels (Megapixel)
- 5
- Property picture system
- Colour
- With infrared lighting
- Yes
- Power over Ethernet (PoE)
- 802.3 of (PoE)
- With memory card
- No
- With lens
- Yes
- Max. infrared reach
- 50 m
- Supports H.264 codec
- Yes
- Supports H.265 codec
- Yes
- ONVIF-compliant
- Yes
- With white light
- Yes
- Thermal camera
- No
- Number of video streams
- 5
- Modular (lens and camera separated)
- No
- Max. white light reach
- 50 m
- With slot for memory card
- Yes
- With integrated AI analysis
- Yes
- Transmission
- TCP/IP
- Country of origin
- Ukraine
Standards & Compliance
- HS Code
- 8525.89
Cross References
- EAN 4823114072970
- SAP 1200877525
- Code 84106832
Product Documentation
More from Ajax
Ajax
Ajax Fibra PIR/Camera detector. White
44403.23.WH1
Ajax
AJAX Turretcam HL 8 MP/4 MM White
126267.197.WH1
Ajax
PIR Camera, MotionCam HD S (PhOD), White
118274.309.WH1
Ajax
Ajax NVR H2DAC (8CH) black
140908.122.BL1
Ajax
Ajax Front cover SteetSiren DD. Black
39278.63.BL
Ajax

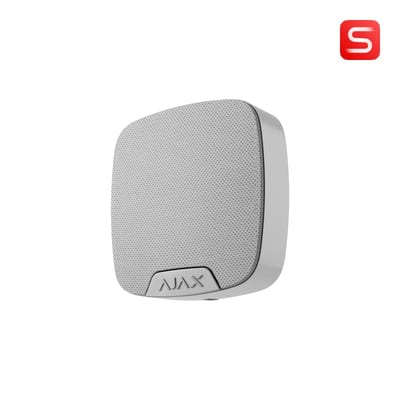

Ajax S-Line HomeSiren indoor. White
133206.11.WH1
Ajax

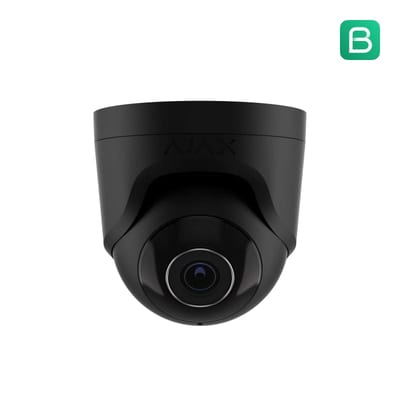

Ajax TurretCam 5 MP/2.8 mm Black
64924.197.BL1
Ajax

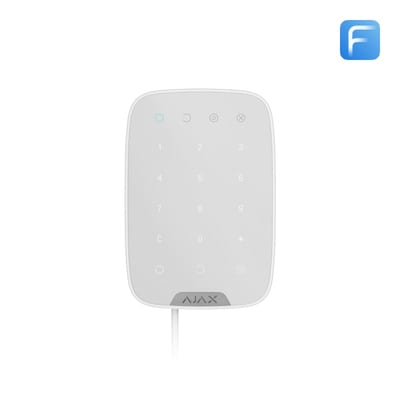

Ajax Fibra operator panel. White
