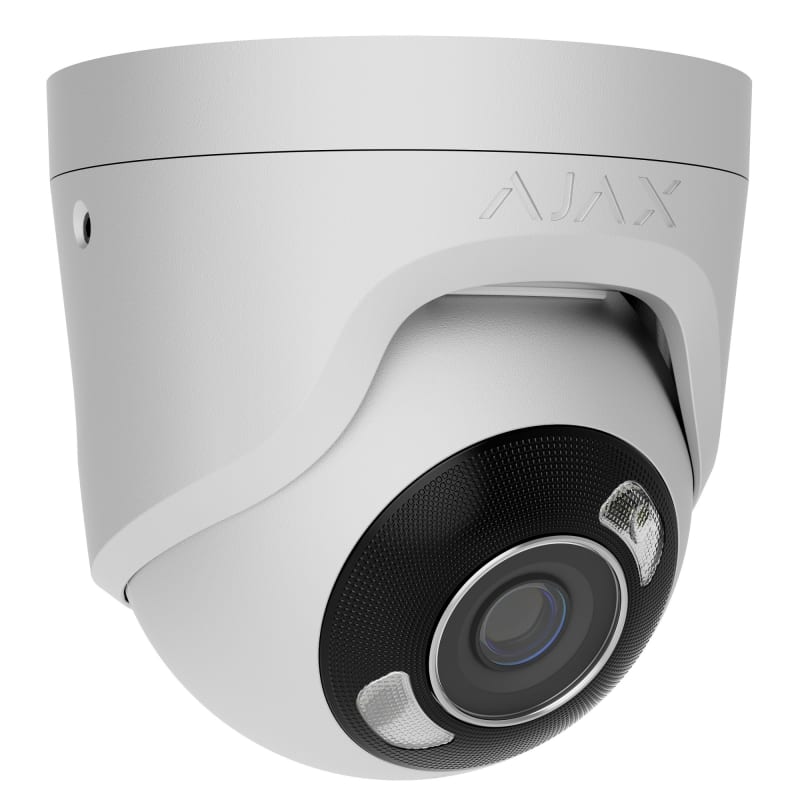

AJAX Turretcam HL 5 MP/2.8 MM White
Pricing
Request a quote
We reply within 24 hours
Overview
AJAX Turretcam HL 5 MP/2.8 MM White (part number 126261.197.WH1) is listed under Safety & Detection / CCTV & Surveillance. Sales unit: pcs; Mounting method: Wall/ceiling; Colour: White; Width: 98 mm; Height: 103 mm; Wireless: No.
Technical Specifications
- Manufacturer part number (MPN)
- 126261.197.WH1
- EAN / GTIN
- 4823114072987
- Sales unit
- pcs
- Mounting method
- Wall/ceiling
- Colour
- White
- Width
- 98 mm
- Height
- 103 mm
- Wireless
- No
- Depth
- 98 mm
- Voltage type
- DC
- Power consumption
- 8.5 W
- Diameter
- 98 mm
- Construction type
- Turret shape
- Memory capacity
- 256 GB
- Ambient temperature
- -30–60 °C
- Picture system
- PAL
- Protocol
- TCP/IP
- Supply voltage
- 12 V
- Impact strength
- IK08
- Focus
- Fixed
- Focal size
- 2.8 mm
- With video motion detector
- Yes
- Degree of protection (IP)
- IP65
- Vandal proof
- Yes
- Scope of application
- Outside
- Number of pixels (Megapixel)
- 5
- Property picture system
- Colour
- With infrared lighting
- Yes
- Power over Ethernet (PoE)
- 802.3 of (PoE)
- With memory card
- No
- With lens
- Yes
- Max. infrared reach
- 50 m
- Supports H.264 codec
- Yes
- Supports H.265 codec
- Yes
- ONVIF-compliant
- Yes
- With white light
- Yes
- Thermal camera
- No
Standards & Compliance
- HS Code
- 8525.89
Cross References
- EAN 4823114072987
- SAP 1200877526
- Code 84106851
Product Documentation
More from Ajax
Ajax
Ajax Superior StreetSiren Plus G3 white
137749.308.WH1
Ajax
Ajax MountCam B1 (168238.372.WH)
Ajax
Ajax NVR H2D16PAC (16CH) black
140916.122.BL1
Ajax
Ajax Superior TurretCam HLVF (4 Mp) wht
135574.197.WH1
Ajax
Ajax Fibra Combined PIR and Microwave Motion Detector, Wired, Black
143623.02.BL1
Ajax
Ajax Superior MultiTransmitter G3 black
135261.62.BL1
Ajax
Ajax Superior HomeSiren G3 white
140411.11.WH1
Ajax
Ajax Superior ReX G3 black
156123.363.BL1
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 126261.197.WH1?
- 126261.197.WH1 can be ordered from cballast.com as a Ajax catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Ajax product?
- The manufacturer part number is 126261.197.WH1.
- What is the HS code for 126261.197.WH1?
- The customs tariff (HS) code for 126261.197.WH1 is 8525.89.
- Who manufactures 126261.197.WH1?
- 126261.197.WH1 is a Ajax product in the Safety & Detection range.
- Is a datasheet available for 126261.197.WH1?
- Yes — the 126261.197.WH1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 126261.197.WH1?
- The minimum order quantity is 1.
- Is 126261.197.WH1 available?
- Yes — 126261.197.WH1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
