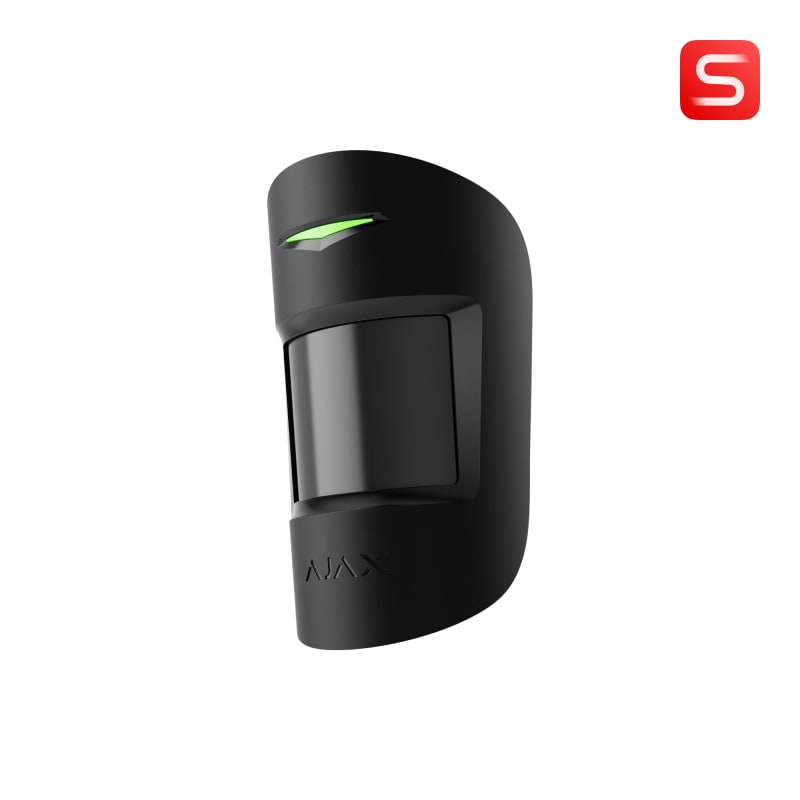

Ajax S-Line Combined PIR and Microwave Detector, Black

Ajax 133223.02.BL1 is a wireless combined passive infrared and microwave motion detector from the S-Line series in black, running on the Ajax 868 MHz two-way radio protocol. Detection reach is 12 m over an 88.5 degree field with pet immunity up to 20 kg at 50 cm distance, and the housing is designed for surface mounting at 2.2 to 2.4 m height. The 110 x 65 x 50 mm unit runs on 3 V and requires no cover-tamper wiring. Typical application is intrusion detection in domestic and small-commercial zones where pets must not trigger alarms.

Manufacturer part number (MPN)

133223.02.BL1

EAN / GTIN

4823114075537

Sales unit

pcs

Package quantity

46 pcs

Recommended mounting height

2.2–2.4 m

Colour

Black

Monitoring radius

12 m

Type of messaging

Passive infrared

Mounting method

Surface mounting

Detection range

88.5 °

Operating voltage

3 V

Height

110 mm

Width

65 mm

Depth

50 mm

Cover monitoring

No

Radio system

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Country of origin

Ukraine

HS Code

8531.10
