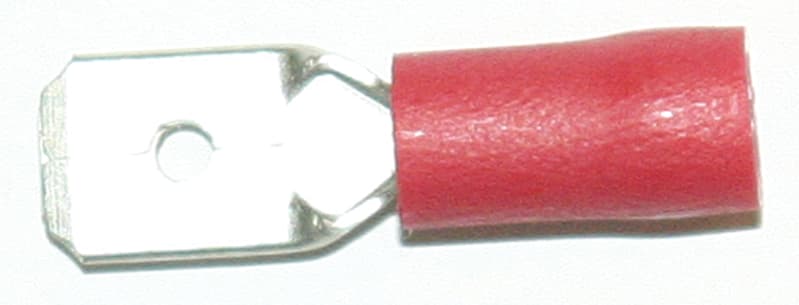

Abiko A 0503 H Insulated Flat Tab 0.5–1.5 mm², 2.8 × 0.8 mm (Red)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 0503 H — insulated flat tab (male push-on blade) for a 2.8 × 0.8 mm flat push-on connection terminating a 0.5–1.5 mm² conductor. The tin-plated brass contact carries a tin-plated copper crimp barrel and a halogen-free Nylon (PA) insulation sleeve, colour-coded red for the 0.5–1.5 mm² conductor range. Operating temperature -20 °C to +105 °C; insulation UL-approved. Crimped to stranded or flexible copper conductors (IEC 60228) with matching Abiko/Elpress dies. Applied in control panels, switchboards, appliance wiring and marine installations.
Technical Specifications
- Type
- Insulated flat tab (male push-on blade) per DIN 46247
- Conductor cross-section
- 0.5–1.5 mm²
- Insulation colour code
- Red
- Tab dimension
- 2.8 × 0.8 mm
- Material
- Brass contact body, tin-plated; copper crimp barrel, tin-plated
- Insulation
- Nylon (PA), halogen-free, easy-entry
- Conductor
- Stranded / flexible copper (IEC 60228)
- Operating temperature
- -20 °C to +105 °C
- Approvals
- Insulation UL-approved
- Standard
- DIN 46247
- Series
- Abiko A (pre-insulated)
- Manufacturer part number (MPN)
- A 0503 H
- EAN / GTIN
- 7070920011465
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920011465
- SAP 1000052553
- Code 8831518
Product Documentation
More from Abiko
Abiko
Abiko 95-8 Copper Tube Cable Lug 95 mm² M8, 90° Angled Palm
95-8 90 GR
Abiko
Abiko KRTS 150-12 Copper Tube Cable Lug 150 mm² M12 (Narrow Palm)
Abiko
Abiko KR 10-10 Copper Tube Cable Lug 10 mm² M10
Abiko
Abiko AKK 95-8 Aluminium-Copper Bimetallic Compression Cable Lug 95 mm² M8
Abiko
Abiko C 15-13 C-Tap Branch Connector 120/95 mm²
Abiko
Assortment case Steel (as 200)
AS 200
Abiko
Abiko Crimping tool for wire-end ferrules (EAP 145)
Abiko
Abiko B 409 FL Uninsulated Flat Receptacle 0.75–1.5 mm², 6.3 × 0.8 mm
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A 0503 H?
- A 0503 H can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is A 0503 H.
- What is the HS code for A 0503 H?
- The customs tariff (HS) code for A 0503 H is 8536.90.
- Who manufactures A 0503 H?
- A 0503 H is a Abiko product in the Electrical Components range.
- Is a datasheet available for A 0503 H?
- Yes — the A 0503 H datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A 0503 H?
- The minimum order quantity is 1.
- Is A 0503 H available?
- Yes — A 0503 H is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
