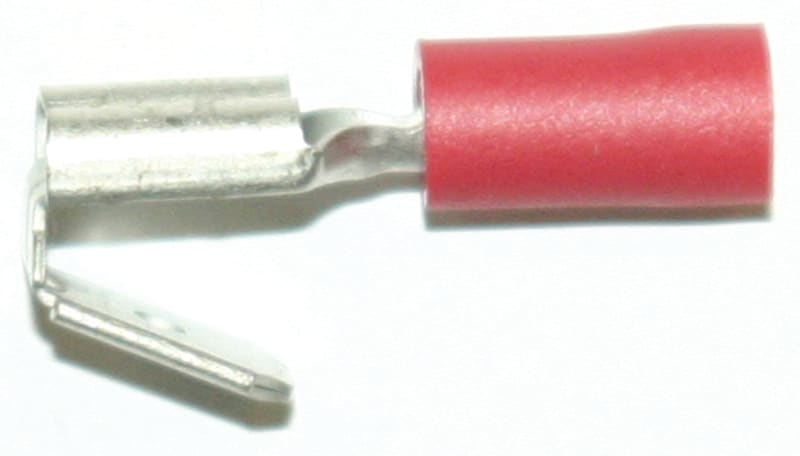

Abiko A 1507 FLH Insulated Piggyback Flat Receptacle 0.5–1.5 mm², 6.3 × 0.8 mm (Red)

Abiko A 1507 FLH — insulated piggyback flat receptacle (female push-on) for a 6.3 × 0.8 mm flat push-on connection terminating a 0.5–1.5 mm² conductor. The tin-plated brass contact carries a tin-plated copper crimp barrel and a halogen-free Nylon (PA) insulation sleeve, colour-coded red for the 0.5–1.5 mm² conductor range. Operating temperature -20 °C to +105 °C; insulation UL-approved. Crimped to stranded or flexible copper conductors (IEC 60228) with matching Abiko/Elpress dies. Applied in control panels, switchboards, appliance wiring and marine installations.

Type

Insulated piggyback flat receptacle (female push-on) per DIN 46247

Conductor cross-section

0.5–1.5 mm²

Insulation colour code

Red

Tab dimension

6.3 × 0.8 mm

Feature

Integral piggyback tap tab for daisy-chaining

Material

Brass contact body, tin-plated; copper crimp barrel, tin-plated

Insulation

Nylon (PA), halogen-free, easy-entry

Conductor

Stranded / flexible copper (IEC 60228)

Operating temperature

-20 °C to +105 °C

Approvals

Insulation UL-approved

Standard

DIN 46247

Series

Abiko A (pre-insulated)

Manufacturer part number (MPN)

A 1507 FLH

EAN / GTIN

7070920011311

HS code

8536.90

HS Code

8536.90

• EAN 7070920011311
• SAP 1000030985
• Code 8228946
