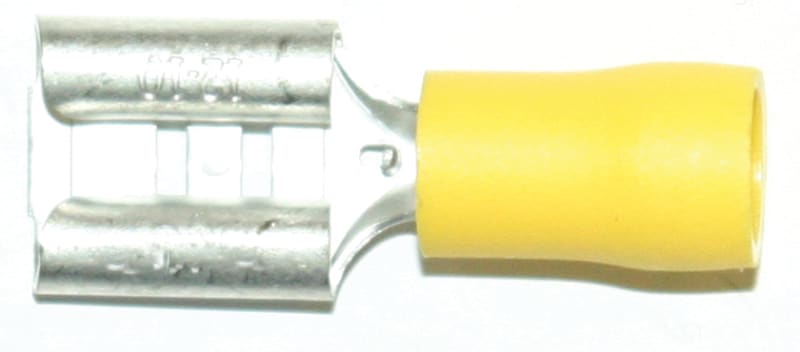

Abiko A 4603 FL Insulated Flat Receptacle, 2.8 × 0.8 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 4603 FL — insulated flat receptacle (female push-on) for a 2.8 × 0.8 mm flat push-on connection. The tin-plated brass contact carries a tin-plated copper crimp barrel and a halogen-free Nylon (PA) insulation sleeve. Operating temperature -20 °C to +105 °C; insulation UL-approved. Crimped to stranded or flexible copper conductors (IEC 60228) with matching Abiko/Elpress dies. Applied in control panels, switchboards, appliance wiring and marine installations.
Technical Specifications
- Type
- Insulated flat receptacle (female push-on) per DIN 46247
- Tab dimension
- 2.8 × 0.8 mm
- Material
- Brass contact body, tin-plated; copper crimp barrel, tin-plated
- Insulation
- Nylon (PA), halogen-free, easy-entry
- Conductor
- Stranded / flexible copper (IEC 60228)
- Operating temperature
- -20 °C to +105 °C
- Approvals
- Insulation UL-approved
- Standard
- DIN 46247
- Series
- Abiko A (pre-insulated)
- Manufacturer part number (MPN)
- A 4603 FL
- EAN / GTIN
- 7070920011274
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920011274
- SAP 1200072103
- Code 81921794
Product Documentation
More from Abiko
Abiko
Abiko AS 150 Aluminium Compression Butt Splice 150 mm² (Uninsulated)
Abiko
Abiko K 6-6 Stainless Steel Tube Cable Lug 6 mm² M6
K 6-6 ST
Abiko
Assortment case Steel (as 1000 C)
AS 1000 C
Abiko
Abiko KR 4-4 Copper Tube Cable Lug 4 mm² M4
Abiko
AUS 1000V Insulated Cable Cutter
KA KK 16
Abiko
Cable TIE with Steel LOCK White 4,8X 186
TY 525 M
Abiko
Steel Strip WITH Coatind 680 7,9
LSC 7,9 680 B
Abiko
Abiko Crimping tool (roll-crimp) (DRB 0805 HD)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A 4603 FL?
- A 4603 FL can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is A 4603 FL.
- What is the HS code for A 4603 FL?
- The customs tariff (HS) code for A 4603 FL is 8536.90.
- Who manufactures A 4603 FL?
- A 4603 FL is a Abiko product in the Electrical Components range.
- Is a datasheet available for A 4603 FL?
- Yes — the A 4603 FL datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A 4603 FL?
- The minimum order quantity is 1.
- Is A 4603 FL available?
- Yes — A 4603 FL is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
