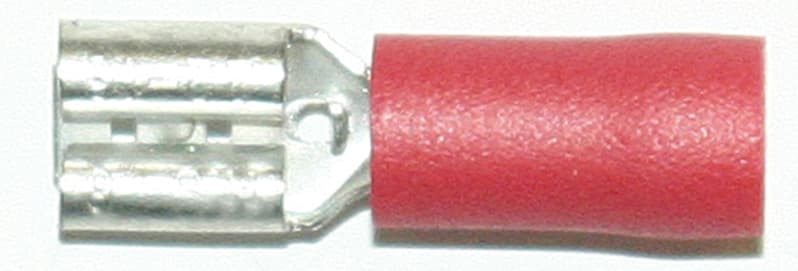

Abiko A 1504 FL 5 Insulated Flat Receptacle, 4.8 × 0.5 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 1504 FL 5 — insulated flat receptacle (female push-on) for a 4.8 × 0.5 mm flat push-on connection. The tin-plated brass contact carries a tin-plated copper crimp barrel and a halogen-free Nylon (PA) insulation sleeve. Operating temperature -20 °C to +105 °C; insulation UL-approved. Crimped to stranded or flexible copper conductors (IEC 60228) with matching Abiko/Elpress dies. Applied in control panels, switchboards, appliance wiring and marine installations.
Technical Specifications
- Type
- Insulated flat receptacle (female push-on) per DIN 46247
- Tab dimension
- 4.8 × 0.5 mm
- Material
- Brass contact body, tin-plated; copper crimp barrel, tin-plated
- Insulation
- Nylon (PA), halogen-free, easy-entry
- Conductor
- Stranded / flexible copper (IEC 60228)
- Operating temperature
- -20 °C to +105 °C
- Approvals
- Insulation UL-approved
- Standard
- DIN 46247
- Series
- Abiko A (pre-insulated)
- Manufacturer part number (MPN)
- A 1504 FL 5
- EAN / GTIN
- 7070920011175
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920011175
- SAP 1000077619
- Code 8568536
Product Documentation
