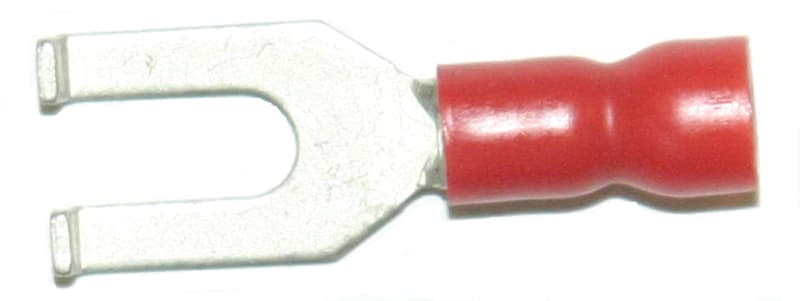

Abiko A1543GB Insulated Angled Fork (Spade) Terminal 0.5–1.5 mm² M4 (Red)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A1543GB — insulated angled fork (spade) terminal for a 0.5–1.5 mm² copper conductor, for an M4 screw stud (fork slot Ø 4.3 mm). Tinned 99.95% copper barrel with a brazed neck in a halogen-free polycarbonate easy-entry sleeve, colour-coded red for the conductor range. The open fork slot fits over a screw stud without removing the nut; crimped to stranded or fine-stranded copper conductors (IEC 60228) with matching Elpress/Abiko dies for terminal-block, contactor and distribution-equipment terminations.
Technical Specifications
- Type
- Insulated angled fork (spade) terminal
- Conductor cross-section
- 0.5–1.5 mm²
- Stud size
- M4 (fork slot Ø 4.3 mm)
- Terminal form
- Fork (spade), open slot
- Insulation
- Halogen-free polycarbonate (PC) easy-entry sleeve
- Insulation colour code
- Red
- Material
- Copper 99.95%, tin-plated, brazed neck
- Conductor
- Stranded / fine-stranded copper (IEC 60228)
- Series
- A (pre-insulated)
- Manufacturer part number (MPN)
- A 1543 GB
- EAN / GTIN
- 7070920011014
- Sales unit
- pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920011014
- SAP 1000051587
- Code 8862163
Product Documentation
