Abiko A 4610 G Insulated Fork Terminal 6 mm² M10 (Yellow)
Abiko · Insulated Fork Terminals

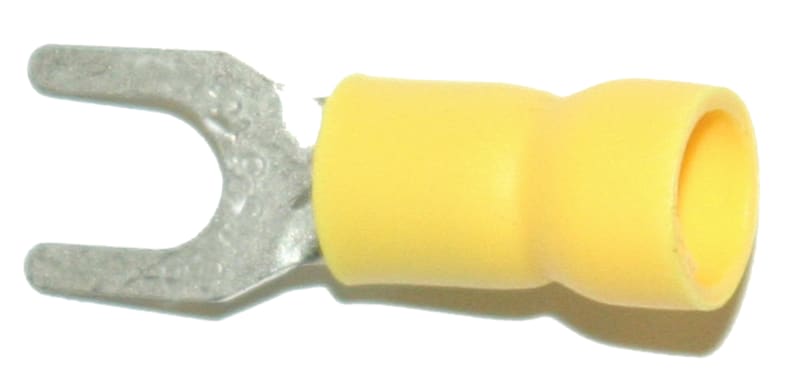

Abiko A 4610 G — pre-insulated compression (crimp) copper fork (spade) terminal for terminating a 6 mm² conductor onto an M10 stud. The barrel is tin-plated electrolytic copper with a brazed neck. The open fork (spade) tongue slides under a partly-loosened screw or nut without full removal. The insulation is halogen-free nylon (PA) with an easy-entry conductor funnel and is colour-coded yellow for the 4-6 mm² conductor range. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight connection. Operating temperature -20 °C to +105 °C; insulation UL-approved; terminal to DIN 46237. Applied in control panels, switchboards, motor terminations and marine and offshore installations.
Specifications
- Part number
- A 4610 G
- HS code
- 8536.90
Also known as — OEM cross-references & superseded numbers
- EAN 7070920010949
- SAP 1000005247
- Code 828988
