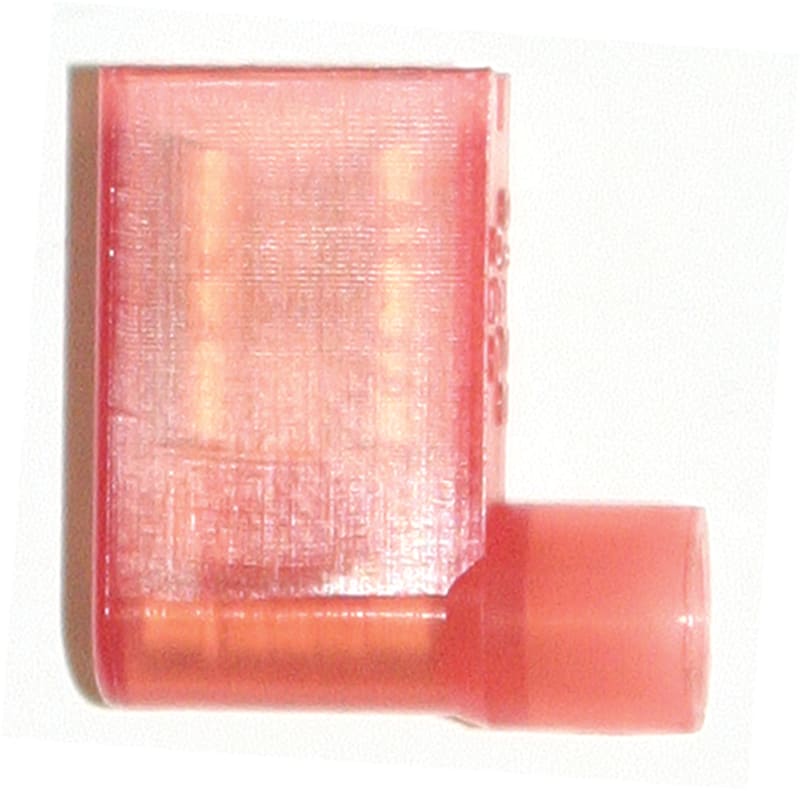

Abiko A 1504 FLB 8 Insulated Flag Flat-Tab 1.5 mm² (Red)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 1504 FLB 8 — insulated flag (angled) flat push-on tab terminating a 1.5 mm² conductor on a 4.8 × 0.8 mm blade. Tin-plated brass contact and tin-plated copper crimp barrel in a halogen-free Nylon (PA) easy-entry sleeve, colour-coded red for the conductor range; operating temperature -20 °C to +105 °C, insulation UL-approved. Crimped to stranded or flexible copper conductors (IEC 60228) with matching Abiko/Elpress dies for control-panel, switchboard, appliance and marine wiring.
Technical Specifications
- Type
- Insulated flag flat push-on tab per DIN 46247
- Conductor cross-section
- 1.5 mm²
- Tab dimension
- 4.8 × 0.8 mm
- Orientation
- Flag (angled entry)
- Insulation colour code
- Red
- Insulation
- Nylon (PA), halogen-free, easy-entry
- Material
- Brass contact, tin-plated; copper crimp barrel, tin-plated
- Conductor
- Stranded / flexible copper (IEC 60228)
- Operating temperature
- -20 °C to +105 °C
- Approvals
- Insulation UL-approved
- Standard
- DIN 46247
- Series
- Abiko A (pre-insulated)
- Manufacturer part number (MPN)
- A 1504 FLB 8
- EAN / GTIN
- 7070920009950
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009950
- SAP 1200075808
- Code 81923162
Product Documentation
