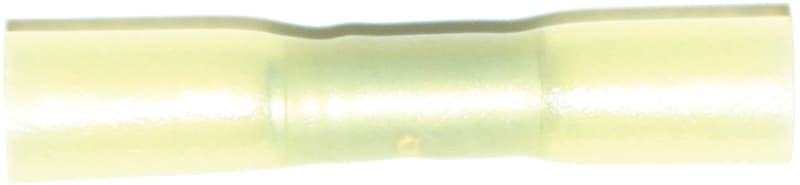

Abiko A 4652 SC Heat-Shrink Insulated Butt Splice 6 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 4652 SC insulated butt splice connector for joining two conductors of 6 mm² cross-section. Tin-plated copper barrel; adhesive-lined polyolefin heat-shrink sleeve (3:1 shrink ratio). Crimp connection inside an adhesive-lined heat-shrink sleeve for a waterproof, insulated joint. Rated -40 °C to +105 °C, to IEC 60228.
Technical Specifications
- Type
- Insulated cable butt splice (joins two conductors of equal cross-section)
- Manufacturer part number (MPN)
- A 4652 SC
- EAN / GTIN
- 7070920009929
- Conductor cross-section
- 6 mm²
- Material
- Tin-plated copper barrel; adhesive-lined polyolefin heat-shrink sleeve (3:1 shrink ratio)
- Insulation
- Adhesive-lined polyolefin heat-shrink, colour-coded; min. shrink temperature 100 °C
- Sealing
- Adhesive lining gives a waterproof joint
- Connection
- Crimp (requires Abiko CLD 125 or equivalent tool)
- Voltage/current
- 600 V / 30 A
- Operating temperature
- -40 °C to +105 °C
- Standard
- IEC 60228
- Approvals
- UL, RoHS, Halogen-free, Waterproof (sealed)
- HS code
- 8536.90
Standards & Compliance
- Standard
- IEC 60228
- Material
- Tin-plated copper barrel; adhesive-lined polyolefin heat-shrink sleeve (3:1 shrink ratio)
- Temperature Range
- -40 °C to +105 °C
- Classification / Approval
- UL, RoHS, Halogen-free, Waterproof (sealed)
- HS Code
- 8536.90
Cross References
- EAN 7070920009929
- SAP 1200071992
- Code 81923067
Product Documentation
More from Abiko
Abiko
Abiko KRF 16-6 Copper Tube Cable Lug 16 mm² M6
KRF 16- 6
Abiko
Abiko KRF 95-12 Copper Tube Cable Lug 95 mm² M12
Abiko
Round PIN, Insulated MALE 0,75 mm²
A 0802 HA
Abiko
Abiko A 2537 R Insulated Ring Terminal 2.5 mm² M3.5 (Blue)
Abiko
Abiko B 0503 FL 8 Uninsulated Flat Receptacle 0.5–1.5 mm², 2.8 × 0.8 mm
Abiko
Assortment case Steel (as 1000)
AS 1000
Abiko
Abiko KRT 35-16 Copper Tube Cable Lug 35 mm² M16
Abiko
Abiko A 1565 G Insulated Fork Terminal 1.5 mm² M6 (Red)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A 4652 SC?
- A 4652 SC can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is A 4652 SC.
- What is the HS code for A 4652 SC?
- The customs tariff (HS) code for A 4652 SC is 8536.90.
- Who manufactures A 4652 SC?
- A 4652 SC is a Abiko product in the Electrical Components range.
- Is a datasheet available for A 4652 SC?
- Yes — the A 4652 SC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A 4652 SC?
- The minimum order quantity is 1.
- Is A 4652 SC available?
- Yes — A 4652 SC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
