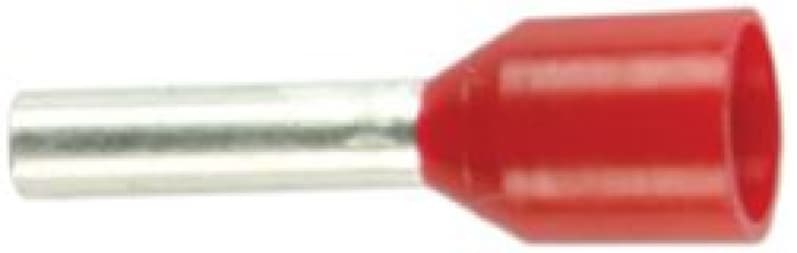

Abiko Insulated Wire-End Ferrule 1.5 mm² Red type HL
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 1,5 rød HL — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 1.5 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded red by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule Conductor cross-section: 1.5 mm² Insulation: Polypropylene (PP), colour-coded by size (DIN 46228-4) Insulation colour: Red Barrel material: Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated Conductor type: Fine-stranded / flexible copper (IEC 60228 Class 5/6) Insulation heat resistance: +105 °C Standard: DIN 46228-4 Series: Abiko (Elpress Group) Manufacturer part number (MPN): 1,5 rød HL EAN / GTIN: 7070920008854 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920008854
- SAP 1200072030
- Code 81922746
Product Documentation
More from Abiko
Abiko
Abiko KRT 300-12 Copper Tube Cable Lug 300 mm² M12
Abiko
Abiko B 410 FL Uninsulated Flat Receptacle 1.5–2.5 mm², 6.3 × 0.8 mm
Abiko
Abiko B 410 H Uninsulated Flat Tab 1.5–2.5 mm², 6.3 × 0.8 mm
Abiko
Abiko Crimping tool for uninsulated connectors, 10–70 mm²
T 3165 A
Abiko
Abiko Crimping tool for wire-end ferrules, 4–16 mm²
PZ 16
Abiko
Abiko Insulated Wire-End Ferrule 10 mm² GIGASTOR Long (18 mm collar)
10 ELF. GST LANG
Abiko
Abiko Novopress HPM 400 Hydraulic Hand Press for Cu/Al Lugs
Abiko
Abiko Crimping tool for uninsulated connectors, 4–16 mm²
T 2258
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1,5 rød HL?
- 1,5 rød HL can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is 1,5 rød HL.
- What is the HS code for 1,5 rød HL?
- The customs tariff (HS) code for 1,5 rød HL is 8536.90.
- Who manufactures 1,5 rød HL?
- 1,5 rød HL is a Abiko product in the Electrical Components range.
- Is a datasheet available for 1,5 rød HL?
- Yes — the 1,5 rød HL datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1,5 rød HL?
- The minimum order quantity is 1.
- Is 1,5 rød HL available?
- Yes — 1,5 rød HL is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
