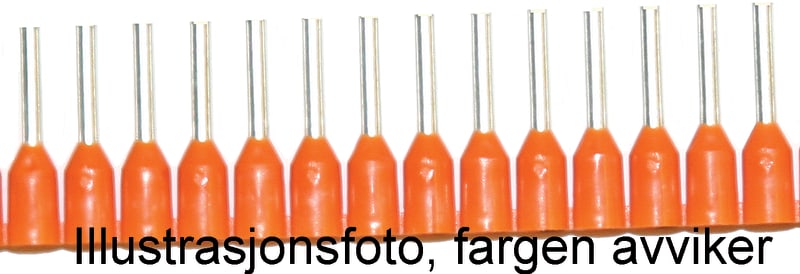

Abiko Insulated Wire-End Ferrule 1.5 mm² Bandoliered

Abiko Insulated Wire-End Ferrule 1.5 mm² Bandoliered — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 1.5 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The polypropylene (PP) collar is colour-coded by conductor size to DIN 46228-4. Supplied bandoliered on a plastic strip for automatic and sequential crimping tools (e.g. Abiko EAP series). Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.

Type

Insulated wire-end ferrule (cord-end terminal), supplied bandoliered

Conductor cross-section

1.5 mm²

Insulation

Polypropylene (PP), colour-coded by size to DIN 46228-4

Barrel material

Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated

Conductor type

Fine-stranded / flexible copper (IEC 60228 Class 5/6)

Insulation heat resistance

+105 °C

Supply form

Bandoliered on plastic strip for automatic / sequential crimping tools

Standard

DIN 46228-4

Series

Abiko (Elpress Group)

Manufacturer part number (MPN)

1,5 BÅND

EAN / GTIN

7070920009721

Sales unit

pcs

Package quantity

500 pcs

HS code

8536.90

HS Code

8536.90

• EAN 7070920009721
• SAP 1000026211
• Code 8206320
