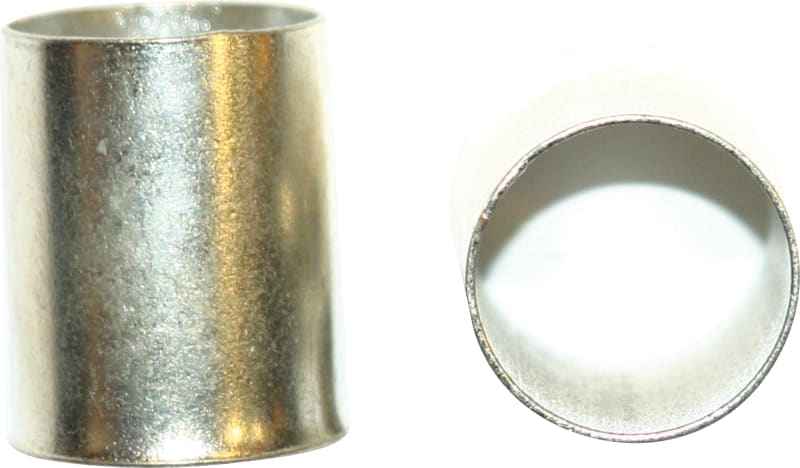

Abiko Uninsulated Wire-End Ferrule 0.75 mm² 15 mm barrel
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 0,75-15 — uninsulated wire-end ferrule (cord-end terminal) that terminates a 0.75 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The bare (uninsulated) barrel is crimped directly to the conductor to DIN 46228-1. Barrel length 15 mm. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-1. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Uninsulated Wire-End Ferrule
- Conductor cross-section
- 0.75 mm²
- Barrel length
- 15 mm
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Standard
- DIN 46228-1
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 0,75-15
- EAN / GTIN
- 7070920008939
- Sales unit
- pcs
- Package quantity
- 1000 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920008939
- SAP 1000034818
- Code 8512731
Product Documentation
More from Abiko
Abiko
Abiko B6043G Uninsulated Flanged Fork (Spade) Terminal 4–6 mm² M4
B 6043 G
Abiko
Abiko C 8-6 C-Tap Branch Connector 35/25 mm²
Abiko
Abiko LS 4.6 520 B stainless ball-lock steel strap 4.6 x 520 mm
LS 4,6 520 B
Abiko
Abiko LS 4.6 360 B stainless ball-lock steel strap 4.6 x 360 mm
LS 4,6 360 B
Abiko

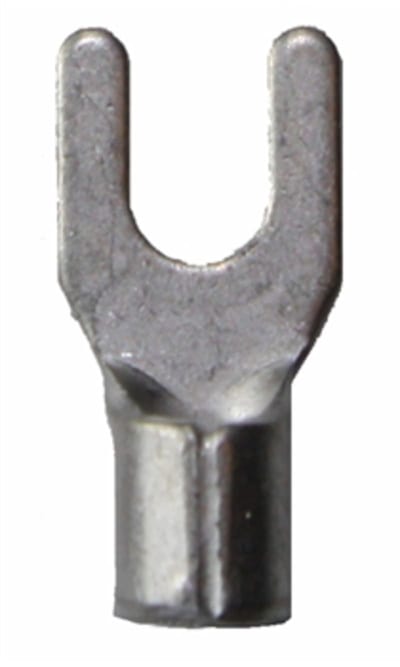

Abiko B6053G Uninsulated Flanged Fork (Spade) Terminal 4–6 mm² M5
