Abiko Insulated Wire-End Ferrule 2.5 mm² Blue Gigastor
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 2,5 BLÅ GST — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 2.5 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded blue by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule Conductor cross-section: 2.5 mm² Insulation: Polypropylene (PP), colour-coded by size (DIN 46228-4) Insulation colour: Blue Barrel material: Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated Conductor type: Fine-stranded / flexible copper (IEC 60228 Class 5/6) Insulation heat resistance: +105 °C Standard: DIN 46228-4 Series: Abiko Gigastor (Elpress Group) Manufacturer part number (MPN): 2,5 BLÅ GST EAN / GTIN: 7070920008762 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920008762
- SAP 1000008274
- Code 866321
Product Documentation
More from Abiko
Abiko
Abiko Uninsulated Wire-End Ferrule 6 mm² 10 mm barrel
6-10
Abiko
Abiko B 25 SR Uninsulated Pin Cable Lug 25 mm²
Abiko
AUS 7500V Insulated GLOVE-size10
KA HAN 7,5kV 10
Abiko
Cable Cutter 0- 34 MM Outer DIA.
KS 34
Abiko

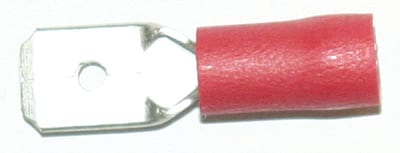

Abiko A 1507 H Insulated Flat Tab 0.5–1.5 mm², 6.3 × 0.8 mm (Red)
Abiko

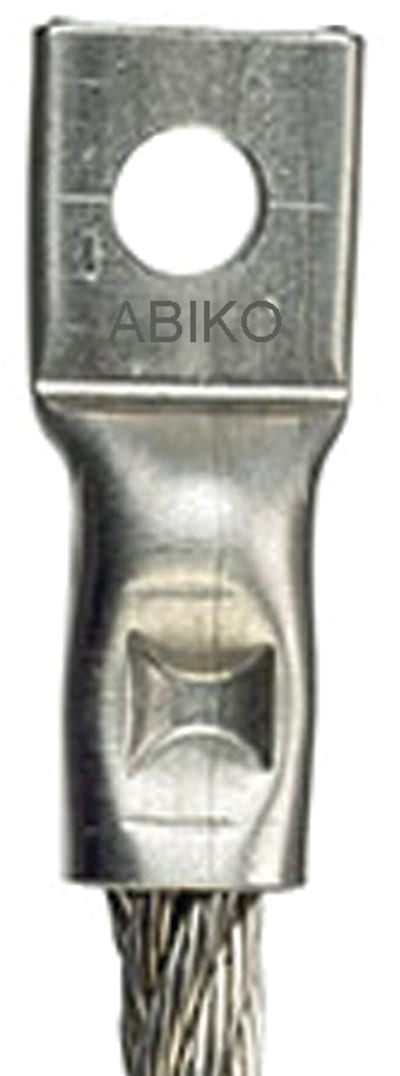

Abiko K 35-10 Stainless Steel Tube Cable Lug 35 mm² M10
K 35-10 ST
Abiko

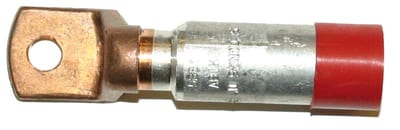

Abiko AKK 35-8 Aluminium-Copper Bimetallic Compression Cable Lug 35 mm² M8
