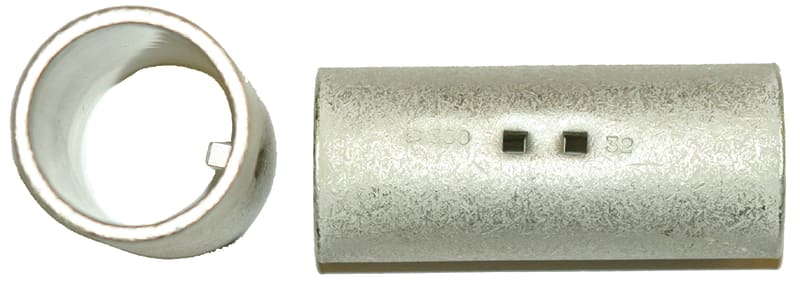

Abiko KSF 120 Copper Compression Butt Splice 120 mm² (Uninsulated)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KSF 120 Tin-plated copper compression (press) butt splice for joining two conductors of 120 mm² cross-section; conductor inspection hole. Crimped with the correct press tool; the inspection hole confirms full conductor insertion. Rated Max +150 °C. To IEC 61238-1 (crimp performance); IEC 60228 Cl.2/Cl.5 conductors.
Technical Specifications
- Type
- Uninsulated compression butt splice (copper conductors)
- Manufacturer part number (MPN)
- KSF 120
- EAN / GTIN
- 7070920006973
- Conductor cross-section
- 120 mm²
- Material
- Tin-plated electrolytic copper
- Connection
- Crimp / compression (press tool)
- Feature
- Conductor inspection hole
- Operating temperature
- Max +150 °C
- Standard
- IEC 61238-1 (crimp performance); IEC 60228 Cl.2/Cl.5 conductors
- Approvals
- RoHS
- HS code
- 8536.90
Standards & Compliance
- Standard
- IEC 61238-1 (crimp performance); IEC 60228 Cl.2/Cl.5 conductors
- Material
- Tin-plated electrolytic copper
- Temperature Range
- Max +150 °C
- Classification / Approval
- RoHS
- HS Code
- 8536.90
Cross References
- EAN 7070920006973
- SAP 1000026967
- Code 8215350
Product Documentation
More from Abiko
Abiko
Abiko C 5 C-Connector 16 mm²
Abiko

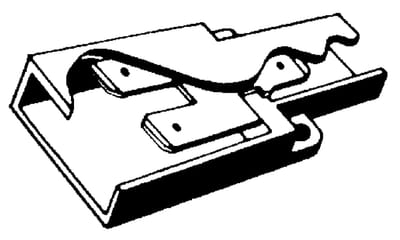

Abiko 405/3 Flat-Tab In-Line Coupler
