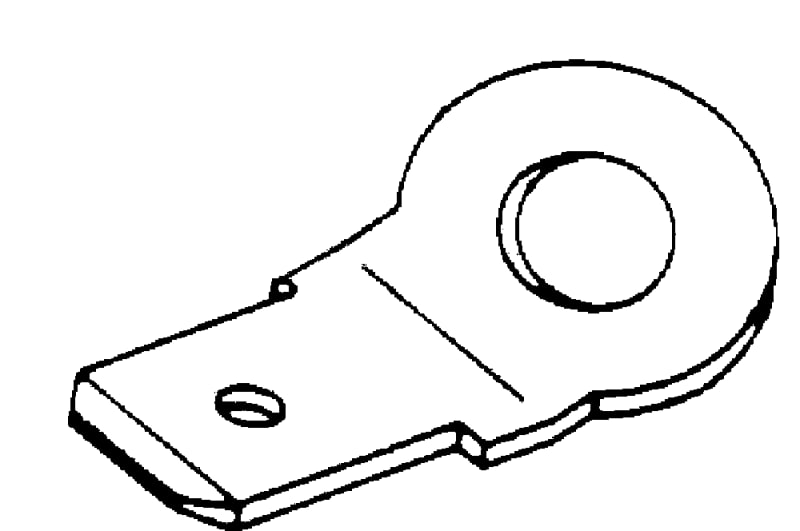

Abiko B 1457 H 8 Uninsulated Flat-Tab Screw Terminal M8
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko B 1457 H 8 — uninsulated flat-tab screw terminal that adapts a 6.3 mm flat push-on connection to an M8 bolted stud, straight form. Tin-plated brass to DIN 46247.
Technical Specifications
- Type
- Uninsulated flat push-on terminal with bolt hole (tab-to-stud adapter)
- Stud / bolt hole
- M8
- Orientation
- straight
- Tab dimension
- 6.3 × 0.8 mm
- Material
- Brass, tin-plated
- Standard
- DIN 46247
- Manufacturer part number (MPN)
- B 1457 H 8
- EAN / GTIN
- 7070920006478
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920006478
- SAP 1200071911
- Code 81923945
Product Documentation
