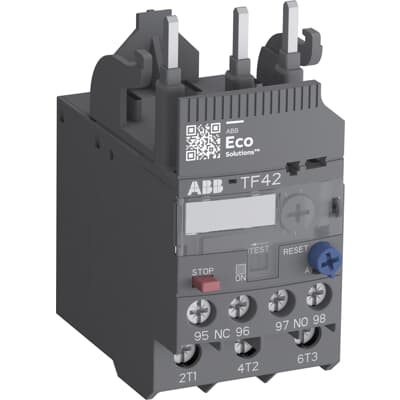

ABB TF42 10-16A
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB TF42-16 thermal overload relay, 10-16 A range, code TF42-16. For direct-on-line motor starter protection per IEC 60947-4-1. Class 10 tripping characteristic. Mounts directly on AF-line contactors AF9-AF38. Applications: pump, fan, compressor motor overload protection up to ~7.5 kW at 400 V AC-3. Interchange to Siemens 3RU2126-4EB0 and Schneider LRD22 in equivalent current range.
Technical Specifications
- Approval
- CE, UL, CSA, CCC, EAC, IEC 60947-4-1
- Standards
- IEC 60947-4-1, IEC 60947-4-1
- Approvals
- CE, UL, CSA, EAC
- HS code
- 8536.20
- Setting range
- 10-16 A
Standards & Compliance
- Classification / Approval
- CE, UL, CSA, CCC, EAC, IEC 60947-4-1
- HS Code
- 8536.20
Compatibility & Fitment
ABB TF42 thermal overload relay, 3-pole bimetallic, Class 10A trip, IEC 60947-4-1. Mates with AF09-AF38 contactors (direct mount or separate mount kit).
