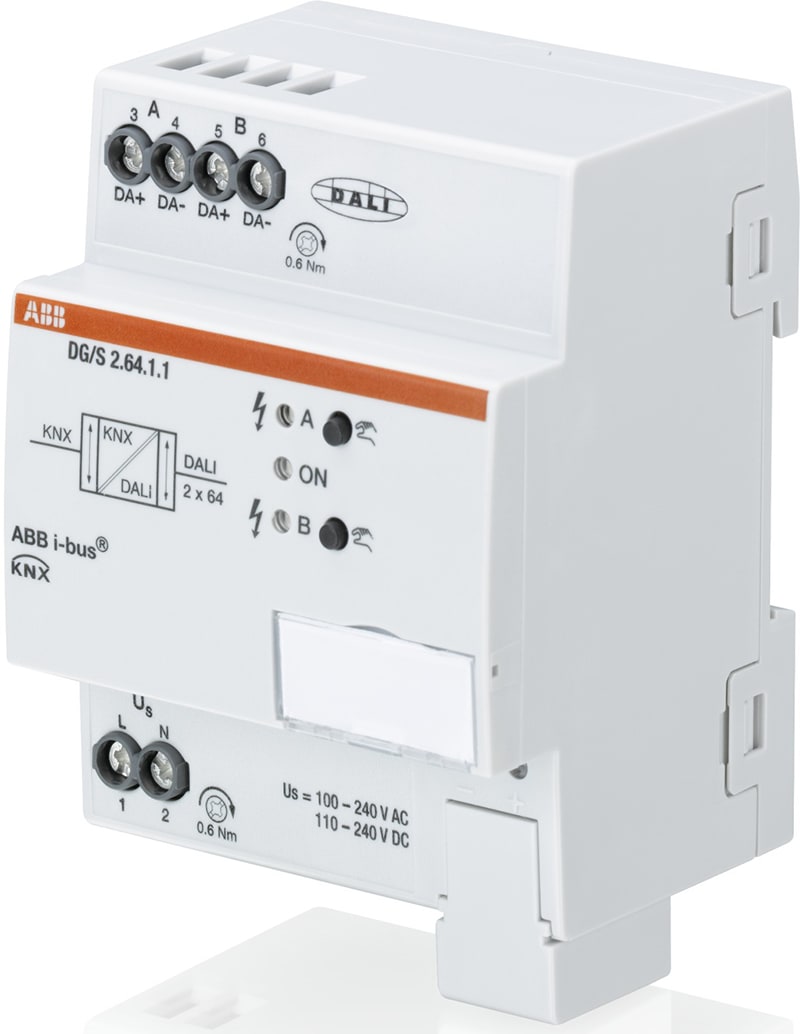

Dali gateway 2-Channel
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB DG/S2.64.1.1 — Single-Master DALI Controller certificated acc. to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 standard devices via ABB i-bus® KNX. Two DALI outputs for up to 2x64 DALI participants. The DALI power supply is integrated. Control and status feedback is carried out via KNX per DALI participants (2x64), with lighting groups (2x16), together in broadcast or per scenes (2x16). Extensive fault and error messages are available. Slave-, staircase-, force-, block- and scene- function are integrated. Self-contained emergency converter, DT1 acc. EN 62386-202 will be supported. By means of KNX and emergency converter, different emergency tests (e.g., function and duration test) can be triggered. Other DALI devices e.g., DT6 can be controlled via standard DALI commands acc. to EN 62386-102.For diagnostic use and individual change of the DALI address or group assignment a separate software tool (ABB i-bus® Tool) is available.
Technical Specifications
- Manufacturer part number (MPN)
- DG/S2.64.1.1
- EAN / GTIN
- 4016779942850
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941167P0001
- Wiring Diagram
- 9AKK108464A0347
- Mounting Type
- DIN-Rail
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC507165D0111
- Communication Interface
- DALI
- Number of Outputs
- 2
- Number of LEDs
- 1
- Compatible Bus Systems
- KNX (TP); DALI
- Product Range
- KNX
- Software Updateable
- Yes
- Integrated Webserver
- No
- Manual Operation
- Yes
- Number of Batteries
- 0
- Auxiliary Voltage AC/DC
- 230 V AC; 110 V DC
- Input Voltage (U in )
- 85 ... 264 V AC; 110...240 V DC
- Power Loss
- 4 W; Total 4 W
- Color
- light grey
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 70 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 63.5 mm
- Dimension Diagram
- 2CDC072033F0015
- EPLAN Data
- 9AAC189178_EPLAN
- CB Certificate
- 9AKK108466A1905
- Declaration of Conformity - CE
- 2CDK507169D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0648
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001099 - System interface/media gateway for bus system
- eClass
- V11.0 : 27143136
- UNSPSC
- 43222605
- IDEA Granular Category Code (IGCC)
- 6809 >> System interface/media gateway for bus system
- Object Classification Code
- A
- Standards
- DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007; DIN EN 60669-2-1:2010-09; EN 60669-2-1 2004/A12:2010
- Model
- Light system interface/DALI
- Operating voltage
- 230 V
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Other bus systems
- DALI
- Bus system LON
- No
- Demounting protection
- No
- Radio interface
- No
- IR interface
- No
- Provider dependent
- No
- Updateable
- Yes
- Visualization
- No
- Web-Server
- No
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4016779942850
- SAP 1200030191
- Code 81466800
Product Documentation
More from ABB Automasjon
ABB Automasjon

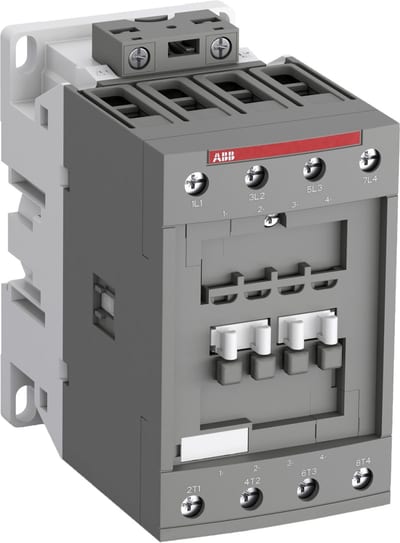

Contactor AF40-22-00-11 (AF40-22-00-11 24-60V50/60HZ 20-60VDC)
ABB Automasjon

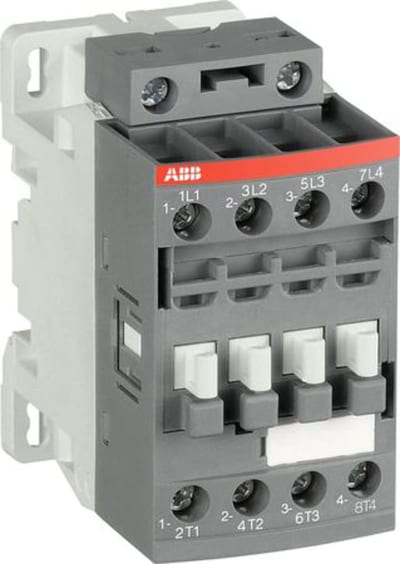

AF16Z-40-00-23 100-250V AC/DC
AF16Z-40-00-23 100-250V50/60HZ-DC
ABB Automasjon

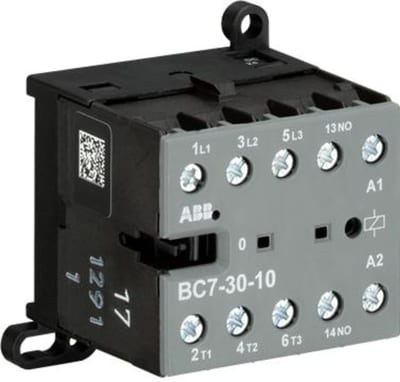

Contactor BC7-30-10 24V DC
BC7-30-10-01
ABB Automasjon
OTE75T4M IP65 EMC (1SCA022812R4670)
ABB Automasjon

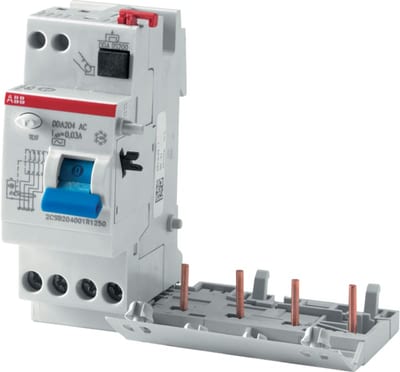

Residual Current Block DDA204A 25A/100MA
2CSB204101R2250
ABB Automasjon
ZLS 202 HJ.STRRAIL 231 CM
2CCF002773R0001
ABB Automasjon

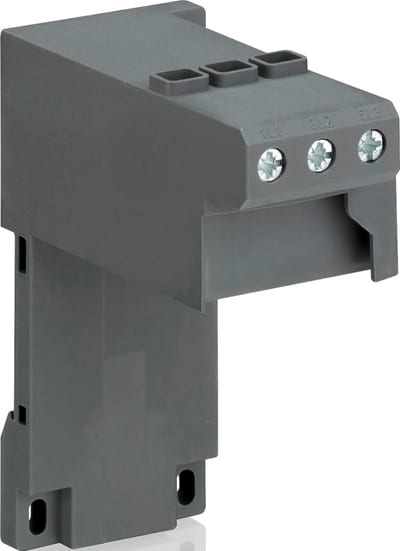

Adapter DB42
ABB Automasjon

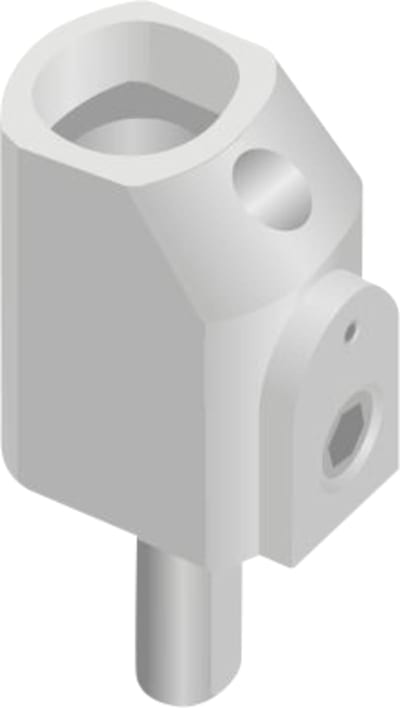

ABB OZXT6 Terminal SET
