Motor protection circuit breaker-only k.sl. MO132-6.3

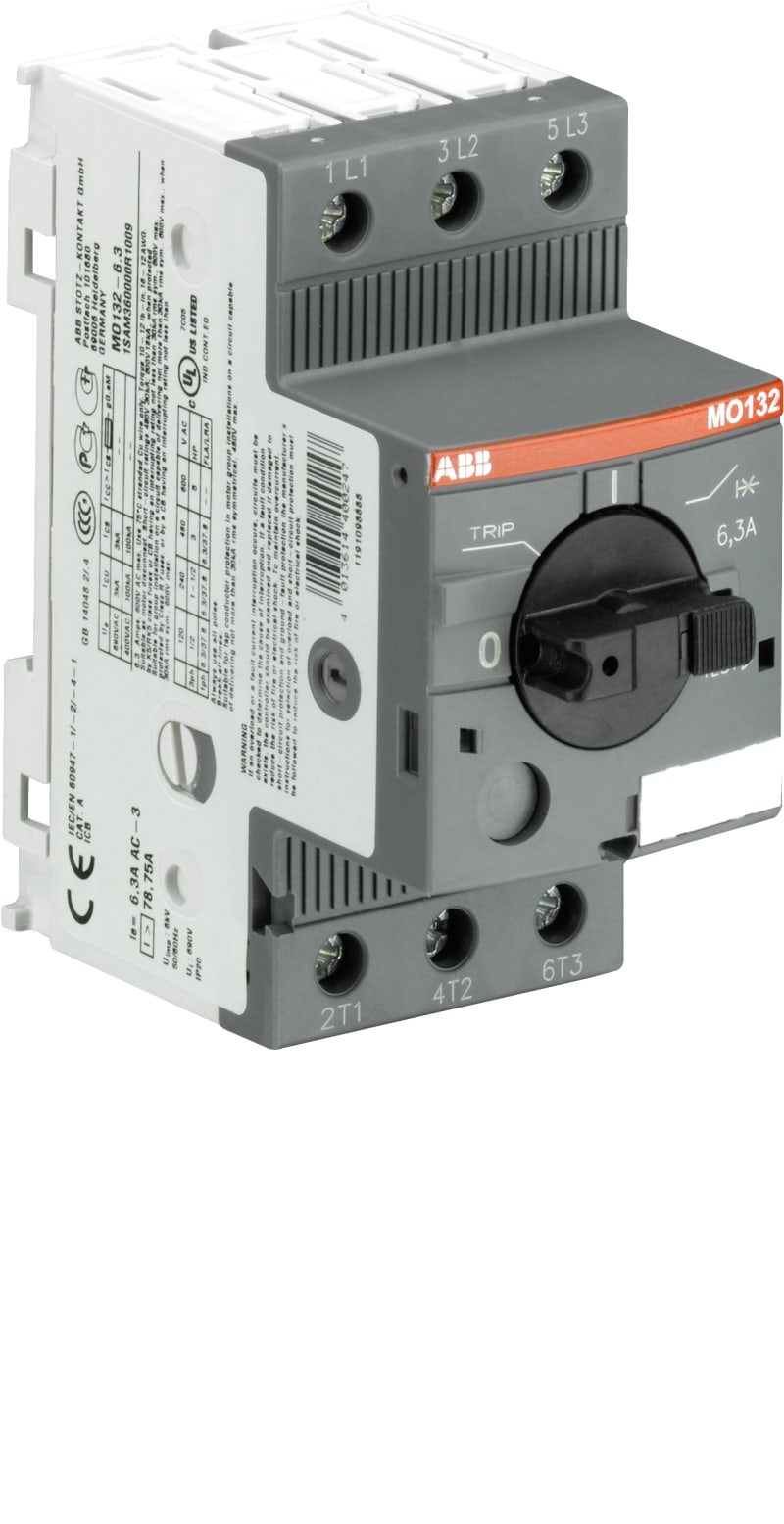

ABB MO132-6.3 — The MO132-6.3 manual motor starter magnetic only is a compact 45 mm width device with a rated operational current of Ie = 6.30 A. This device is used to manually switch on and off loads/motors and to protect them reliably and without the need for a fuse from short-circuits. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 V AC. A combination together with overload relays or motor controllers allows the protection of motors. Further features are the built-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter magnetic only is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks are available as accessory.

Manufacturer part number (MPN)

MO132-6.3 EAN / GTIN: 4013614400247 Sales unit: pcs Country of Origin: Germany Lead Time: 0 day Product Sales Status: Active Product Net Width: 45 mm Product Net Height: 90 mm Product Net Depth / Length: 86.75 mm Rated Service Short-Circuit Breaking Capacity (I cs ): (230 V AC) 100 kA; (400 V AC) 100 kA; (440 V AC) 30 kA; (500 V AC) 20 kA; (690 V AC) 3 kA Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (230 V AC) 100 kA; (400 V AC) 100 kA; (440 V AC) 30 kA; (500 V AC) 20 kA; (690 V AC) 3 kA Rated Instantaneous Short-Circuit Current Setting (I i ): 78.8 A Setting Range: None Rated Operational Power AC-3 (P e ): (400 V) Three Phase 2.2 kW Rated Operational Power AC-3e (P e ): (400 V) Three Phase 2.2 kW Rated Operational Voltage: Main Circuit 690 V AC Rated Operational Current (I e ): 6.3 A Rated Operational Current AC-3 (I e ): 6.3 A Rated Operational Current AC-3e (I e ): 6.3 A Rated Frequency (f): Main Circuit 50 Hz; Main Circuit 60 Hz Operating Frequency (f sw ): 0 ... 400 Hz Rated Impulse Withstand Voltage (U imp ): Main Circuit 6 kV Rated Insulation Voltage (U i ): 690 V Power Loss: at Rated Operating Conditions per Pole 1.1 W Number of Poles: 3P Conventional Free-air Thermal Current (I th ): Main Circuit 6.3 A Degree of Protection: Housing IP20; Main Circuit Terminals IP10 Pollution Degree: 3 Electrical Durability: 50000 cycle Mechanical Durability: Nr. Operations 100000 cycle Terminal Type: Screw Terminals Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible 1/2x 0.75 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm² Tightening Torque: Main Circuit 0.8 ... 1.2 N·m Wire Stripping Length: Main Circuit 9 mm Recommended Screw Driver: Pozidriv 2 Mounting Position: 1 ... 6 Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 minimum Mounting Distance: Electrical Conductive Board, Horizontal - Up to 400 V 0 mm; Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm; Electrical Conductive Board, Vertical 75 mm; Other Device Same Type, Horizontal 0 mm; Other Device Same Type, Vertical 150 mm Contact Position Indication: ON / OFF / TRIP Standards: IEC/EN 60947-1; IEC/EN 60947-2; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L Remarks: For overload protection of the motors, an appropriate thermal or electronic overload relays must be used Short-Circuit Current Rating (SCCR): Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kA; Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 35 kA; Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kA; Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 18 kA; Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA; Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC Horsepower Rating UL/CSA: (200 V AC) Three Phase 1 Hp; (208 V AC) Three Phase 1 Hp; (220 ... 240 V AC) Three Phase 1.5 Hp; (440 ... 480 V AC) Three Phase 3 Hp; (550 ... 600 V AC) Three Phase 5 Hp Full Load Amps Motor Use: (200 V AC) Three Phase 6.3 A; (208 V AC) Three Phase 6.3 A; (220 ... 240 V AC) Three Phase 6.3 A; (440 ... 480 V AC) Three Phase 4.8 A; (550 ... 600 V AC) Three Phase 6.1 A Locked Rotor Amps: (200 V AC) Three Phase 37.8 A; (208 V AC) Three Phase 37.8 A; (220 ... 240 V AC) Three Phase 37.8 A; (440 ... 480 V AC) Three Phase 32 A; (550 ... 600 V AC) Three Phase 36.8 A General Use Rating UL/CSA: (600 V AC) 6.3 A Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 16-12 AWG; Stranded 1/2x 16-12 AWG Tightening Torque UL/CSA: Main Circuit 10 in·lb Ambient Air Temperature: Around the Enclosure 0 ... +40 °C; Operation -25 ... +60 °C; Storage -50 ... +80 °C Ambient Air Temperature Compensation: No Maximum Operating Altitude Permissible: 2000 m Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g Resistance to Vibrations: 5g 3 ... 150 Hz ABB EcoSolutions: Yes ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available EcoSolutions Profile: 1SFC100125C0353 End Of Life Disassembling Instructions: 1SAC200332H0001 Environmental Product Declaration - EPD: 1SAC200360H0001; 1SAC200385H0001 Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 80 % A2L Certificate – IEC: 1SAA963000-4601 ABS Certificate: 1SAA963001-0101 BV Certificate: 1SAA963001-0202 CB Certificate: 1SAA963002-2002; 1SAA963007-2002 CCC Certificate: 2024010307654702; 2024010307658958 CQC Certificate: CQC2010010307387700; CQC2019010307243864 Declaration of Conformity - CCC: 2020980307003526; 2020980307003041 Declaration of Conformity - CE: 1SAD101100-3403 Declaration of Conformity - UKCA: 1SAD201100-3403 DNV GL Certificate: 1SAA963001-0304 EAC Certificate: 1SAA963000-2701 LR Certificate: 1SAA963001-0503 RINA Certificate: 1SAA963002-0802 RMRS Certificate: 1SAA918000-0704 UL Certificate: E137861-20090225; E345003-20090225 Object Classification Code: F ETIM 9: EC000074 - Motor protection circuit-breaker eClass: V11.0 : 27370401 UNSPSC: 39121521 IDEA Granular Category Code (IGCC): 4731 >> Manual Starters E-Number (Finland): 3705887 E-Number (Norway): 4364093 E-Number (Sweden): 3110037

HS Code

8536.20
