Shunt Trip 200-240V
Pricing
Request a quote
We reply within 24 hours
Product Description

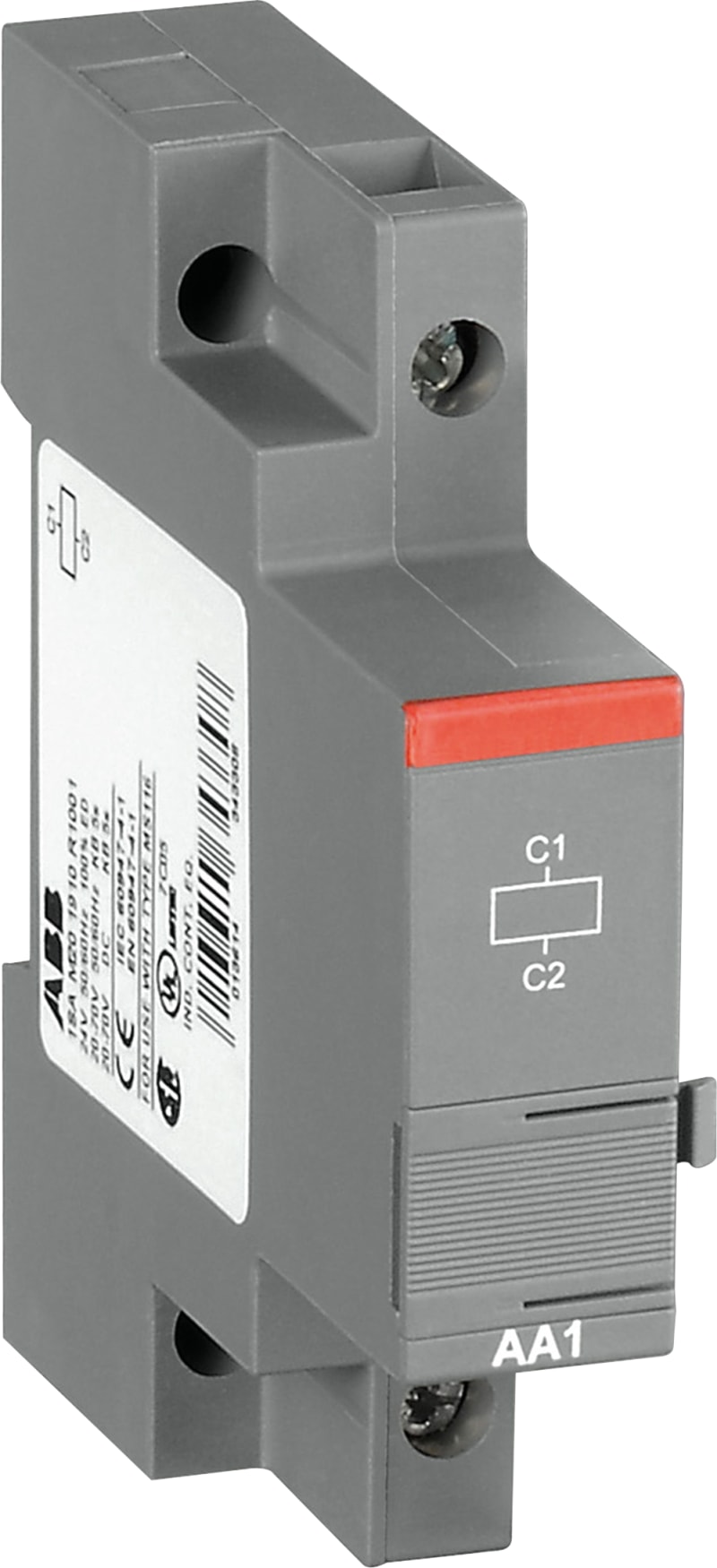

ABB AA1-230 — Shunt trips AA1 release manual motor starters used for remote tripping. They are attached laterally on the left side of MS116, MS132 or MS165. In accordance with IEC 60947-1, the manual motor starter is switched off by AA1 if the supply voltage of the shunt trip measured during the tripping operation remains between 70% and 110% of the rated control circuit supply voltage.
Technical Specifications
- Manufacturer part number (MPN)
- AA1-230
- EAN / GTIN
- 4013614343346
- Sales unit
- pcs
- Country of Origin
- Germany
- Lead Time
- 0 day
- Product Sales Status
- Active
- Product Net Width
- 18 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 75.5 mm
- Rated Frequency (f)
- Auxiliary Circuit 50 Hz; Auxiliary Circuit 60 Hz; Auxiliary Circuit DC
- Rated Impulse Withstand Voltage (U imp )
- Auxiliary Circuit 6 kV
- Rated Insulation Voltage (U i )
- 690 V
- Power Loss
- 39 W
- Terminal Type
- Screw Terminals
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²; Flexible 1/2x 0.75 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm²
- Tightening Torque
- Auxiliary Circuit 0.8 ... 1.2 N·m
- Wire Stripping Length
- Auxiliary Circuit 10 mm
- Recommended Screw Driver
- Pozidriv 2
- Mounting Position
- 1 ... 6
- Standards
- CSA 22.2 No. 14; IEC/EN 60947-1; IEC/EN 60947-4-1; UL 508; UL 60947-1; UL 60947-4-1
- Remarks
- Please consider 15 min OFF-period after 5s ON-period.; The mechanical and electrical durability of manual motor starters in combination with UA1/AA1 is reduced. Values are provided on request.
- Connecting Capacity Auxiliary Circuit UL/CSA
- Flexible 1/2x 16-12 AWG; Stranded 1/2x 16-12 AWG
- Tightening Torque UL/CSA
- Auxiliary Circuit 7 in·lb
- Ambient Air Temperature
- Operation -25 ... +60 °C; Storage -50 ... +80 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 15g
- ABS Certificate
- 1SAA963001-0101
- BV Certificate
- 1SAA963002-0201
- cUL Certificate
- cUL_E137861
- Declaration of Conformity - CE
- 1SAD101100-3411
- Declaration of Conformity - UKCA
- 1SAD201100-3411
- DNV GL Certificate
- 1SAA963001-0304
- LR Certificate
- 1SAA963001-0502; 1SAA918001-0501
- RINA Certificate
- 1SAA963002-0802
- UL Certificate
- UL_E137861
- Object Classification Code
- Q
- ETIM 9
- EC001023 - Shunt release (for power circuit breaker)
- eClass
- V11.0 : 27370418
- UNSPSC
- 39121601
- IDEA Granular Category Code (IGCC)
- 4879 >> Shunt release (for power circuit breaker)
- E-Number (Finland)
- 3705826
- E-Number (Norway)
- 4364018
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4013614343346
- SAP 1000407501
- Code 8484039
Product Documentation
