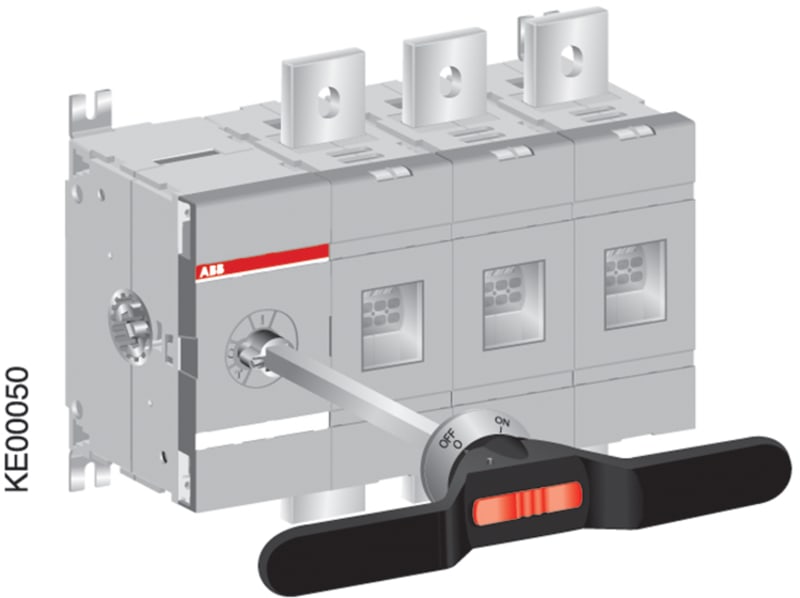

ABB 3-Pole, front operated, base mounted switch-disconnector with black IP65 handle and shaft, terminal bolt kit included OT400E03P
Part numberOT400E03PEAN / GTIN6417019230450HS code8536.90
Switchgear & Protection
Disconnect Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB OT400E03P — 3-pole, front operated, base mounted switch-disconnector with black IP65 handle and shaft, terminal bolt kit included.
Technical Specifications
- Manufacturer part number (MPN)
- OT400E03P
- EAN / GTIN
- 6417019230450
- HS code
- 8536.90
- Sales unit
- pcs
- Country of Origin
- India
- Product Sales Status
- Active
- End Of Life Disassembling Instructions
- 1SCC301118M0201
- Environmental Information
- 1SCC301266D0201
- Environmental Product Declaration - EPD
- 1SCC301283D0201
- Degree of Protection
- Front IP00
- Pollution Degree
- 3
- Product Net Width
- 191 mm
- Product Net Height
- 185 mm
- Product Net Depth / Length
- 107 mm
- Color
- Grey
- Conventional Free-air Thermal Current (I th )
- Θ = 40 °C 400 A
- Conventional Thermal Current (I the )
- Fully Enclosed 400 A
- Distance Between Phases
- Standard
- Handle Color
- Black
- Mechanical Durability
- 16000
- Mounting Type
- Base mounting
- Number of Poles
- 3P
- Operating Mode
- Front
- Position of Line Terminals
- Top In - Bottom Out; Bottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 10 W
- Rated Conditional Short-Circuit Current (I nc )
- (500 A fuse, 500 V) 100 kA; (500 A fuse, 690 V) 80 kA
- Rated Impulse Withstand Voltage (U imp )
- 12 kV
- Rated Insulation Voltage (U i )
- acc. to IEC/EN 60664-1 1000 V
- Rated Operational Current AC-21A (I e )
- (380 ... 415 V) 400 A; (500 V) 400 A; (690 V) 400 A
- Rated Operational Current AC-22A (I e )
- (380 ... 415 V) 400 A; (500 V) 400 A; (690 V) 400 A
- Rated Operational Current AC-23A (I e )
- (380 ... 415 V) 400 A; (500 V) 400 A; (690 V) 400 A
- Rated Operational Power AC-23A (P e )
- (220 ... 240 V) 132 kW; (400 ... 415 V) 230 kW; (500 V) 280 kW; (690 V) 400 kW
- Rated Operational Voltage
- Main Circuit 1000 V
- Rated Short-Circuit Making Capacity (I cm )
- (690 V) 65 kA
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 15 kA
- Special Functions
- No
- Standards
- IEC 60947-3
- Switches Operating Mechanism
- Mechanism at the End of the Switch; 03 (Left Side)
- Terminal Type
- Lug terminals
- Terminal Width
- 25 mm
- Tightening Torque
- acc. IEC 60947-1 30 … 44 N·m
- A2L Certificate – IEC
- 1SCC301337D0201
- ATEX Certificate
- No certification needed
- BV Certificate
- 1SCC301103D0201
- Declaration of Conformity - CE
- 1SCC301135D2704
- DNV GL Certificate
- 1SCC301174D0204
- GL Certificate
- 1SCC301139D0201
- LR Certificate
- 1SCC301144D0201
- UL Certificate
- No certification needed
- VDE Certificate
- No certification needed
- Object Classification Code
- Q
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- UNSPSC
- 39122233
- eClass
- V11.1 : 27371403
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3661440
- E-Number (Norway)
- 4337866
- E-Number (Sweden)
- 3171201
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 6417019230450
- SAP 1000019458
- Code 8491482
Product Documentation
Document preview: ABB 3-Pole, front operated, base mounted switch-disconnector with black IP65 handle and shaft, terminal bolt kit included OT400E03P — Specification sheet
More from ABB Automasjon
ABB Automasjon

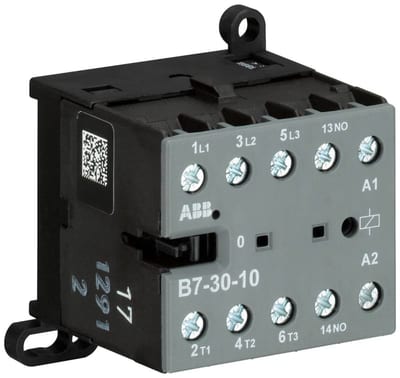

Contactor B 7-30-10 24V AC
B7-30-10-01
ABB Automasjon

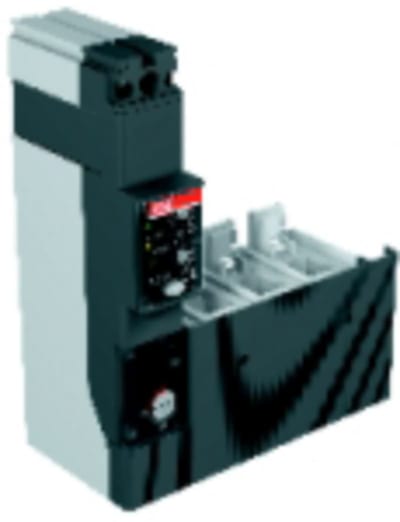

ABB RC222/1 Residual Current Release — 3-pole, for Tmax T1 Moulded-Case Circuit Breaker
RC2221T1FCCU3
ABB Automasjon

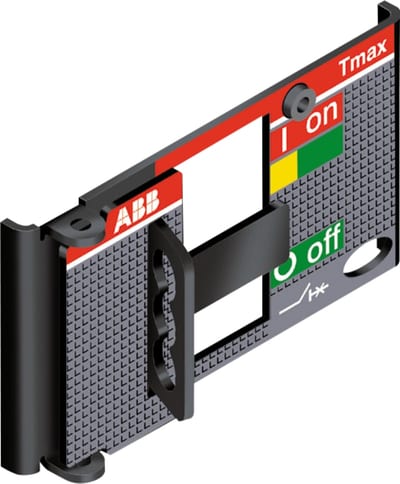

Locking Mechanism PLL FOR TMAX (1SDA051394R0001)
ABB Automasjon

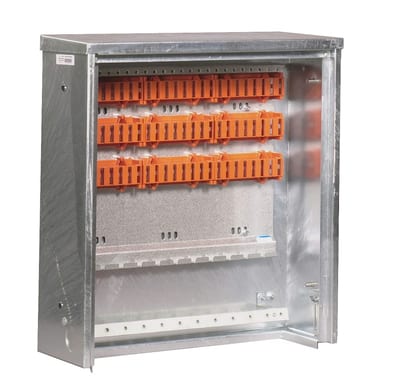

ABB 1SEP407682R0002 KO-500 Galvanized upper part
