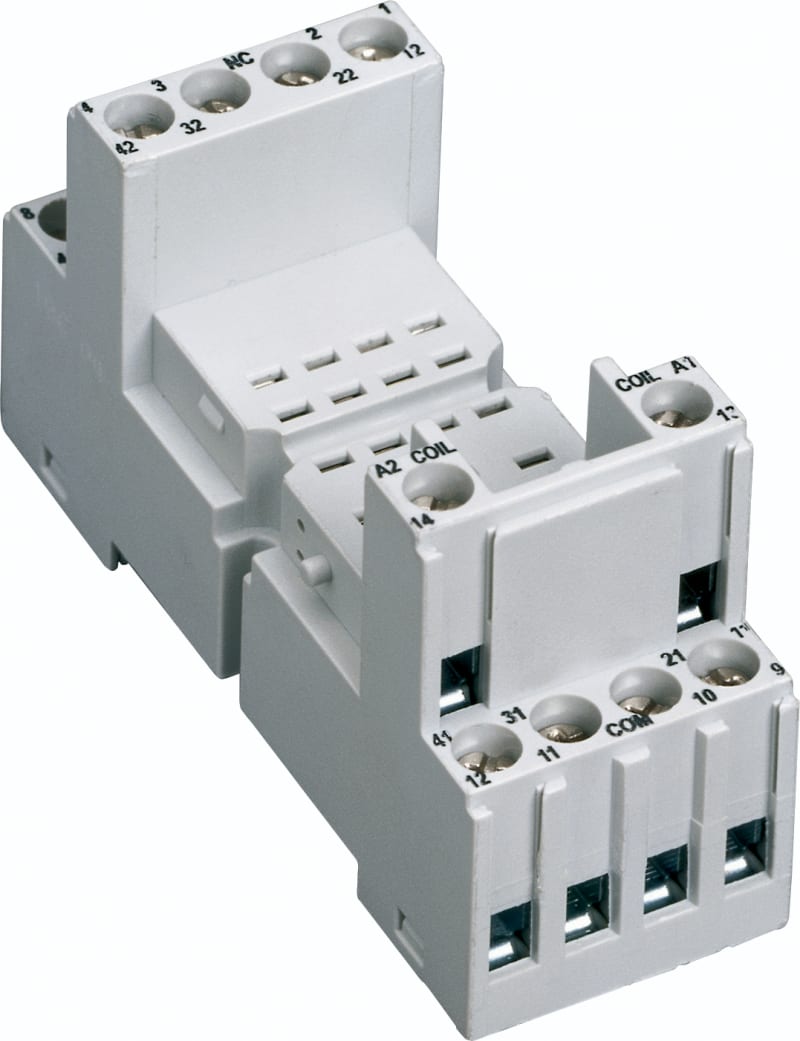

Standard Plinth CR-M3SS

ABB CR-M3SS — The CR-M3SS socket is from the CR-M (miniature) relay range. The standard socket is suitable for CR-M relays with 3 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.

Manufacturer part number (MPN)

CR-M3SS

EAN / GTIN

4013614373794

Sales unit

pcs

Package quantity

10 pcs

Country of Origin

Germany

Lead Time

0 day

Product Sales Status

Active

Product Net Width

27 mm

Product Net Height

42.5 mm

Product Net Depth / Length

82 mm

Function

Accessory for interface relays CR-M

Sub-Function

Socket for miniature relays

Sub-Function 2

Standard socket for miniature relay 3 c/o

Rated Operational Voltage

250 V

Terminal Type

Screw Terminals

Rated Operational Current AC-12 (I e )

(230 V) 7 A

Rated Insulation Voltage (U i )

3 V

Mounting Position

1

Standards

CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61984; UL 508

Connecting Capacity Main Circuit UL/CSA

Flexible with Ferrule 2x 20-16 AWG; Rigid 2x 20-14 AWG; Stranded 2 x 20-14 AWG

Flammability According to UL94

V-0

Ambient Air Temperature

Operation -40 ... +70 °C; Storage -40 ... +70 °C

Maximum Operating Altitude Permissible

2000 m

CSA Certificate

CSA_262671_2785566

cURus Certificate

cURus508_E244328

Declaration of Conformity - CE

1SVD982020-0001

Declaration of Conformity - UKCA

1SVD982020-1000

EAC Certificate

EAC_RU_C-DE.ME77.B.00446-19

Object Classification Code

K

ETIM 7

EC001456 - Relay socket

eClass

V11.0 : 27371603

UNSPSC

39122335

E-Number (Finland)

2712715

E-Number (Norway)

4187432

E-Number (Sweden)

4005372

EAN

4013614528651

HS Code

8536.69

• EAN 4013614373794
• SAP 1000017159
• Code 8488549
