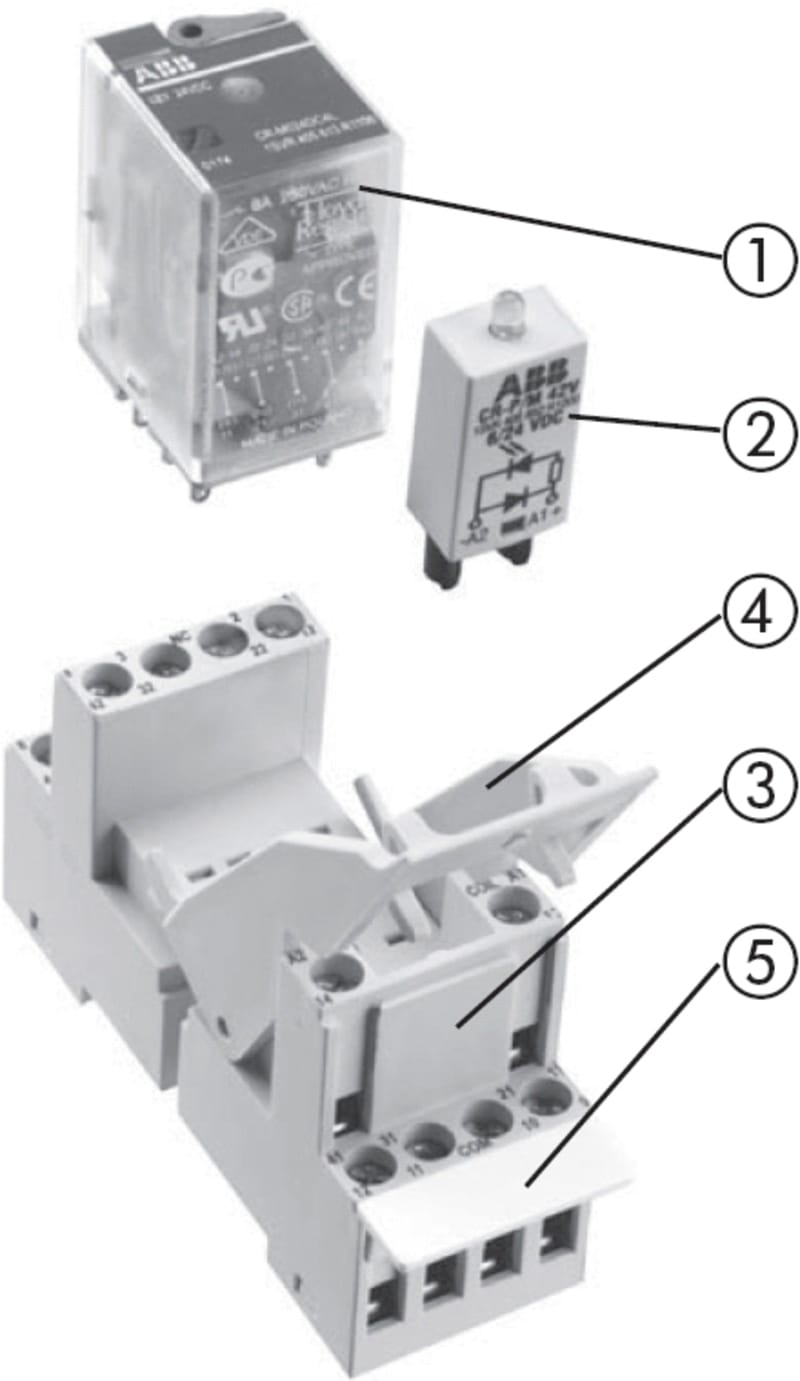

PLUGGB. Relay CR-M110DC2L

ABB 1SVR405611R8100 — The CR-M110DC2L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 110 V DC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 12 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking its output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.

Manufacturer part number (MPN)

1SVR405611R8100

EAN / GTIN

4013614373275

HS code

8536.90

Sales unit

pcs

Country of Origin

Germany

Lead Time

0 day

Product Sales Status

Active

Product Net Width

21.2 mm

Product Net Height

35.6 mm

Product Net Depth / Length

27.5 mm

Function

Pluggable miniature interface relay CR-M

Sub-Function

Relay with built in LED

Rated Control Supply Voltage (U s )

110 V DC

Rated Operational Voltage

250 V AC

Output

2 C/O Contacts

Output Signal

250 V / 12 A

Terminal Type

Flat-Pin Connections

Rated Operational Current AC-12 (I e )

(230 V) 12 A

Rated Operational Current AC-15 (I e )

(120 V) 3 A; (230 V) 1.5 A

Rated Operational Current DC-12 (I e )

(24 V) 12 A

Rated Operational Current DC-13 (I e )

(24 V) 2.5 A; (250 V) 0.1 A

Rated Insulation Voltage (U i )

250 V

Degree of Protection

IP40

Mounting Position

1

Standards

CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61810-1; UL 508

Maximum Operating Voltage UL/CSA

300 V AC

Contact Rating UL/CSA

B300

Pilot Duty UL/CSA

B300

Flammability According to UL94

HB

Ambient Air Temperature

Operation -40 ... +70 °C; Storage -40 ... +85 °C

Maximum Operating Altitude Permissible

Without Derating 2000 m

CCC Certificate

CCC_2014010303720193

CQC Certificate

CQC2014010303720193

CSA Certificate

CSA_2735700

cUR Certificate

cUR_E244330

Declaration of Conformity - CCC

2020980303000200

Declaration of Conformity - CE

1SVD982021-0003

Declaration of Conformity - UKCA

1SVD982021-1000

EAC Certificate

EAC_RU_C-DE.ME77.B.00446-19

RMRS Certificate

RMRS_1740019250

UR Certificate

UR_E244330

VDE Certificate

VDE_40040327

Object Classification Code

K

ETIM 7

EC001437 - Switching relay

eClass

V11.0 : 27371601

UNSPSC

39122331

E-Number (Finland)

2712685

E-Number (Norway)

4187388

EAN

4013614497391

HS Code

8536.90
