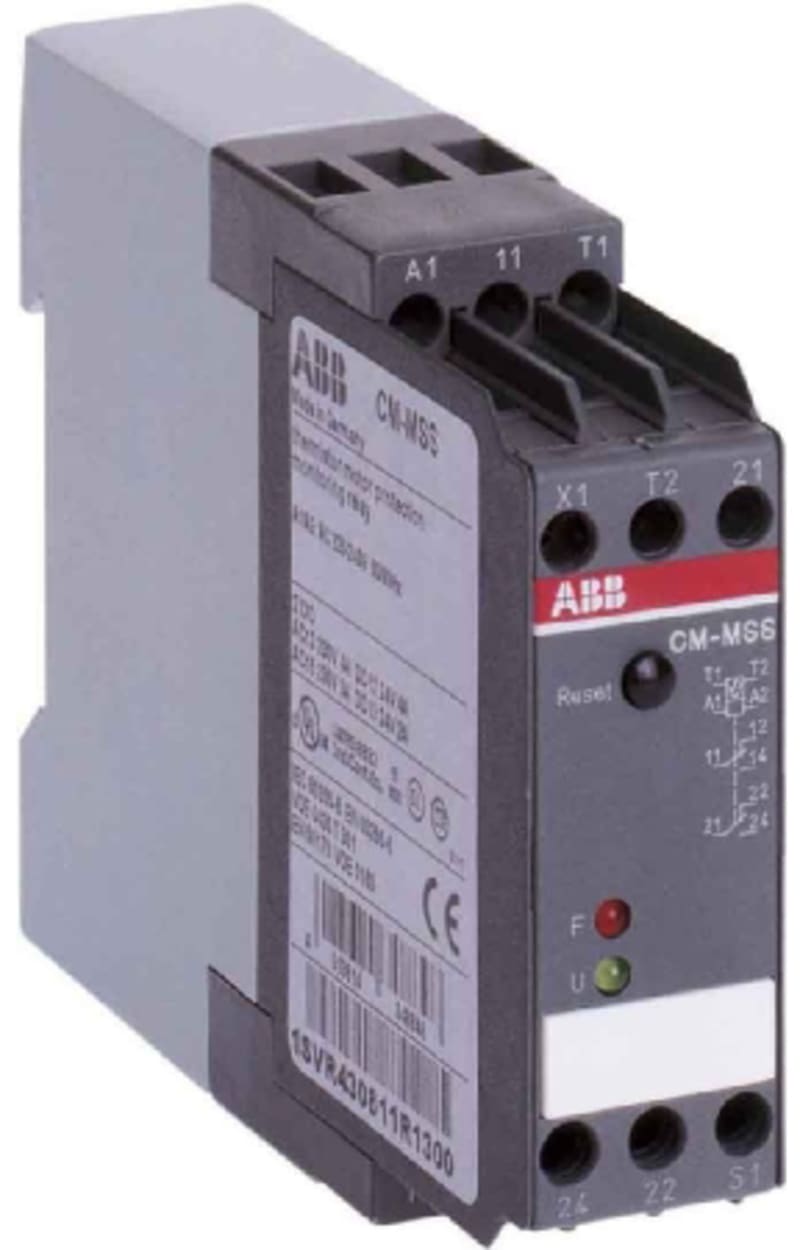

THERMISTOR Relay,240VAC CM-MSS

ABB 1SVR730712R2200 — The CM-MSS.33S belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 110-130 V AC and 220-240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The sensor circuit of this CM-MSS.33S is short-circuit, as well as interrupted-wire monitored and the relay can be reset automatically, manually or remotely after the failure has been removed. This protection relay is certified according to the ATEX directive 94/9/EC and is equipped with a reset / test button. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

Manufacturer part number (MPN)

1SVR730712R2200 EAN / GTIN: 4013614348877 Sales unit: pcs Voltage: 240 V AC Product Net Width: 22.5 mm Product Net Height: 85.6 mm Product Net Depth / Length: 103.7 mm Function: 1 sensor circuit; Short-circuit detection; Dynamic interrupted wire detection; Auto; manual or remote reset; ATEX approved Rated Control Supply Voltage (U s ): 110 ... 130 V AC; 220 ... 240 V AC Rated Operational Voltage: Auxiliary Circuit 250 V AC Rated Frequency (f): Supply Circuit 50/60 Hz Output: 2 C/O Contacts Terminal Type: Screw Terminals Rated Operational Current AC-12 (I e ): (230 V) 4 A Rated Operational Current AC-15 (I e ): (230 V) 3 A Rated Operational Current DC-12 (I e ): (24 V) 4 A Rated Operational Current DC-13 (I e ): (24 V) 2 A minimum Switching Capacity: 24 V; 10 mA Rated Impulse Withstand Voltage (U imp ): Output Circuit 1 / Output Circuit 2 4 kV; Output Circuit 4 kV Rated Insulation Voltage (U i ): Measuring Circuit / Output Circuit 300 V; Output Circuit 1 / Output Circuit 2 300 V; Supply Circuit / Measuring Circuit 300 V; Supply Circuit / Output Circuit 300 V Degree of Protection: Housing IP50; Terminals IP20 Overvoltage Category: III Pollution Degree: 3 Short-Circuit Protective Devices: Output Circuit NC - F Type Fuses 10 A; Output Circuit NO - F Type Fuses 10 A Electrical Durability: AC-12 100000 cycle Mechanical Durability: Nr. Operations 30000000 cycle Connecting Capacity: Flexible 1x 0.5 ... 2.5 mm²; Flexible 2x 0.5 ... 1.5 mm²; Rigid 1x 0.5 ... 4 mm²; Rigid 2x 0.5 ... 2.5 mm² Tightening Torque: 0.6 ... 0.8 N·m Wire Stripping Length: 8 mm Recommended Screw Driver: 0.8 x 4; 4.5; Pozidriv 1 Mounting Position: 1 ... 6 Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 Standards: CAN/CSA C22.2 No.14; EN 50495; IEC/EN 63000; IEC/EN 60079-7; IEC/EN 60947-5-1; IEC/EN 60947-8; UL 508 Maximum Operating Voltage UL/CSA: Output Circuit 300 V AC Contact Rating UL/CSA: B300 Connecting Capacity UL/CSA: Flexible 1x 18-14 AWG; Flexible 2x 18-16 AWG; Rigid 1x 20-12 AWG; Rigid 2x 20-14 AWG Tightening Torque UL/CSA: 7.08 in·lb Pilot Duty UL/CSA: B300 Flammability According to UL94: V-0 Ambient Air Temperature: Operation -25 ... +60 °C; Storage -40 ... +85 °C Maximum Operating Altitude Permissible: Without Derating 2000 m ABB EcoSolutions: Yes Environmental Product Declaration - EPD: 1SAC200438H0001 ATEX Certificate: EU Type Examination Certificate_TPS_18_ATEX_044254_0018_X CB Certificate: CB_DK-40837-UL CCC Certificate: CCC_2005010303165479 cULus Certificate: cULus508_20140912-E140448 Declaration of Conformity - CCC: 2020980303000194 Declaration of Conformity - CE: 1SVD981007 Declaration of Conformity - UKCA: 1SVD981007-10 DNV GL Certificate: DNVGL_TAE00003W4 Object Classification Code: B ETIM 7: EC002568 - Relay for thermistor protection (PTC) eClass: V11.0 : 27371503 UNSPSC: 39122331 E-Number (Finland): 2712510 E-Number (Norway): 4185887 E-Number (Sweden): 3860736 EAN: 4013614496646

HS Code

8536.49

• EAN 4013614348877
• SAP 1000028297
• Code 8503766
