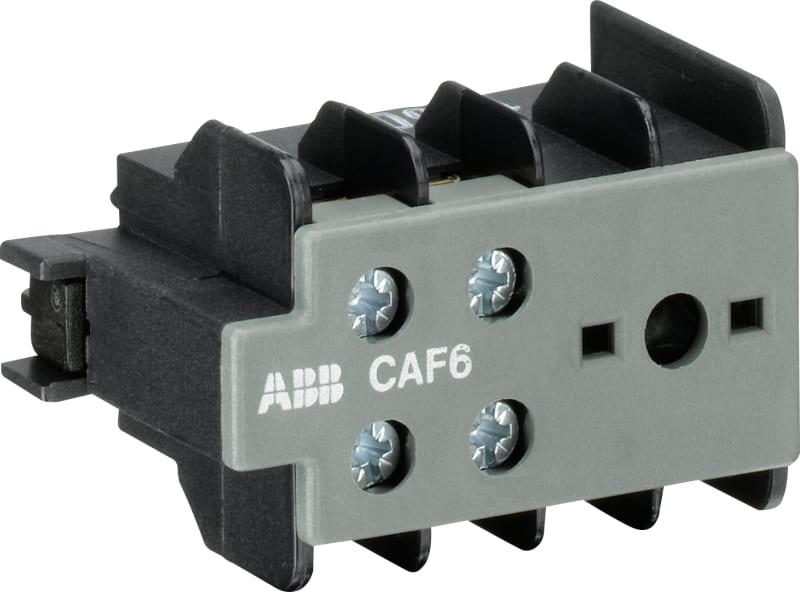

Auxiliary Contact Block CAF6-11M

ABB CAF6-11M — The CAF6-11M is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals.

Manufacturer part number (MPN)

CAF6-11M EAN / GTIN: 4013614142659 Sales unit: pcs Country of Origin: India Product Sales Status: Active Product Net Width: 47.5 mm Product Net Depth / Length: 26.5 mm Product Net Height: 29 mm Dimension Diagram: GJL1200446F0001 Number of Main Contacts NO: 0 Number of Main Contacts NC: 0 Number of Auxiliary Contacts NO: 1 Number of Auxiliary Contacts NC: 1 Number of Poles: 2P Standards: IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L Rated Operational Voltage: Auxiliary Circuit 690 V AC; Auxiliary Circuit 250 V DC Rated Frequency (f): Auxiliary Circuit 50 Hz; Auxiliary Circuit 60 Hz; Auxiliary Circuit DC Conventional Free-air Thermal Current (I th ): Auxiliary Circuit 6 A Rated Operational Current AC-15 (I e ): (24 V) 4 A; (240 V) 4 A; (500 V) 2 A; (380 / 400 V) 3 A Rated Operational Current DC-13 (I e ): (24 V) 1.5 A; (110 V) 0.4 A; (220 / 240 V) 0.04 A Short-Circuit Protective Devices: gG Type Fuses 10 A Rated Insulation Voltage (U i ): 690 V Rated Impulse Withstand Voltage (U imp ): Auxiliary Circuit 6 kV Maximum Electrical Switching Frequency: (AC-15) 600 cycles per hour; (DC-13) 600 cycles per hour minimum Switching Capacity: 17 V; 5 mA Power Loss: at Rated Operating Conditions per Pole 0.27 W Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 1 ... 2.5 mm²; Flexible 1/2x 1 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm² Wire Stripping Length: Auxiliary Circuit 9 mm Degree of Protection: IP20 Tightening Torque: Auxiliary Circuit 0.8 ... 1.1 N·m Terminal Type: Screw Terminals Suitable For: B6-30-10; BC6-30-10; B7-30-10; BC7-30-10; VB6-30-10; VBC6-30-10; VB7-30-10; VBC7-30-10; VB6A-30-10; VBC6A-30-10; VB7A-30-10; VBC7A-30-10 Suitable for Product Class: Mini Contactors Maximum Operating Voltage UL/CSA: 600 V AC General Use Rating UL/CSA: (600 V AC) 5 A Connecting Capacity Auxiliary Circuit UL/CSA: Stranded 1/2x 22-10 AWG Contact Rating UL/CSA: A600 Tightening Torque UL/CSA: Auxiliary Circuit 7 in·lb Ambient Air Temperature: Operation -25 ... +55 °C; Storage -40 ... +80 °C Maximum Operating Altitude Permissible: 2000 m Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 15g Resistance to Vibrations: 5g 5 ... 150 Hz A2L Certificate – IEC: 1SAA938000-4601 CCC Certificate: 2024010305658959 cULus Certificate: cUL_E48139 Declaration of Conformity - CE: 1SAD101100-3101 Declaration of Conformity - UKCA: 1SAD201100-3101 RMRS Certificate: 1SAA938001-0704 UL Certificate: UL_E48139 Object Classification Code: K ETIM 7: EC000041 - Auxiliary contact block eClass: V11.0 : 27371302 UNSPSC: 39121522 IDEA Granular Category Code (IGCC): 4743 >> Auxiliary contact block E-Number (Finland): 3709108 E-Number (Norway): 4184088 EAN: 4013614412240

HS Code

8536.50

• EAN 4013614142659
• SAP 1000037989
• Code 8518180
