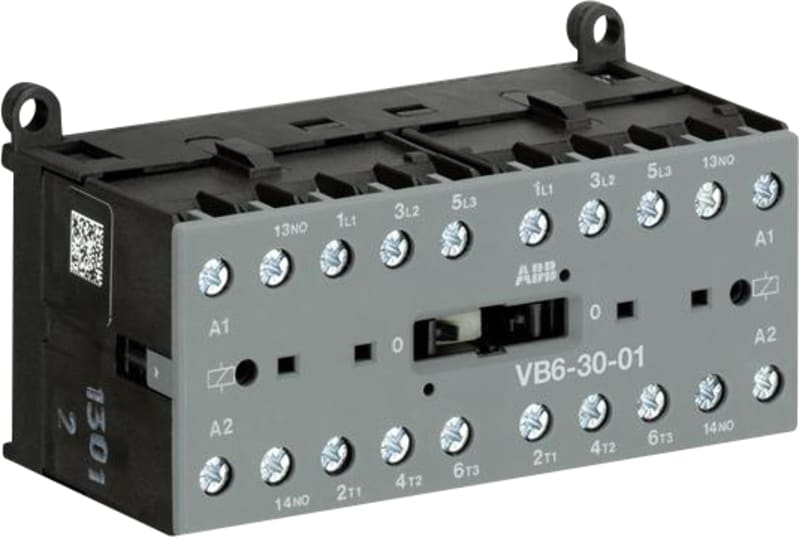

REV.Selector Switch VB6-30-10 220/50

ABB GJL1211901R8100 — The VB6-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.

Manufacturer part number (MPN)

GJL1211901R8100 EAN / GTIN: 4013614153150 Sales unit: pcs Country of Origin: India Product Sales Status: Active Product Net Width: 96.2 mm Product Net Depth / Length: 46.7 mm Product Net Height: 57.5 mm Dimension Diagram: GJL1200447F0001 Number of Main Contacts NO: 3 Number of Main Contacts NC: 0 Number of Auxiliary Contacts NO: 1 Number of Auxiliary Contacts NC: 0 Number of Poles: 3P Standards: IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L Rated Operational Voltage: Auxiliary Circuit 690 V AC; Auxiliary Circuit 250 V DC; Main Circuit 690 V AC; Main Circuit 220 V DC Rated Frequency (f): Control Circuit 400 Hz; Control Circuit 50 Hz; Control Circuit 60 Hz; Main Circuit 60 Hz; Main Circuit 50 Hz; Main Circuit DC Conventional Free-air Thermal Current (I th ): Main Circuit 20 A Rated Operational Current AC-1 (I e ): (220 / 240 V) 40 °C 20 A; (220 / 240 V) 55 °C 16 A; (380 / 440 V) 40 °C 20 A; (380 / 440 V) 55 °C 16 A; (690 V) 40 °C 6 A; (690 V) 55 °C 6 A Rated Operational Current AC-3 (I e ): (230 V) 55°C 9 A; (400 V) 55 °C 9 A; (500 V) 55 °C 6.5 A; (690 V) NO 55°C 3.5 A Rated Operational Current AC-15 (I e ): (440 V AC) 3 A; (24 V) 4 A; (120 V) 4 A; (240 V) 4 A; (500 V) 2 A; (380 / 400 V) 3 A Rated Operational Current DC-13 (I e ): (24 V) 2.5 A; (110 V) 0.7 A; (220 / 240 V) 0.4 A Rated Operational Power AC-3 (P e ): (230 V) Three Phase 2.2 kW; (400 V) Three Phase 4 kW; (500 V) Three Phase 4 kW; (690 V) Three Phase, NO 3 kW Rated Breaking Capacity AC-3: 8 x Ie / AC-3 Rated Making Capacity AC-3: 10 x Ie / AC-3 Rated Short-time Withstand Current Low Voltage (I cw ): at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A Rated Insulation Voltage (U i ): 690 V; acc. to UL/CSA 600 V Rated Impulse Withstand Voltage (U imp ): Main Circuit 6 kV Maximum Electrical Switching Frequency: (AC-1) 300 cycles per hour; (AC-15) 600 cycles per hour; (AC-3) 600 cycles per hour; (DC-1) 600 cycles per hour; (DC-13) 600 cycles per hour; (DC-3) 600 cycles per hour Mechanical Durability: Nr. Operations 10000000 cycle minimum Switching Capacity: Auxiliary Circuit 17 V; Auxiliary Circuit 5 mA Coil Operating Limits: (acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C); (acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) Rated Control Circuit Voltage (U c ): 220 ... 240 V AC Coil Consumption: Average Holding Value 50 Hz 3.5 V·A; Average Pull-in Value 50 Hz 3.5 V·A Power Loss: at Rated Operating Conditions AC-1 per Pole 1 W Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 1 ... 2.5 mm²; Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²; Flexible 1/2x 1 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm² Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 1 ... 2.5 mm²; Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²; Flexible 1/2x 1 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm² Connecting Capacity Control Circuit: Flexible with Ferrule 1/2x 1 ... 2.5 mm²; Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²; Flexible 1/2x 1 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm² Wire Stripping Length: Auxiliary Circuit 9 mm; Main Circuit 9 mm Degree of Protection: Auxiliary Circuit Terminals IP20; Control Circuit Terminals IP20; Main Circuit Terminals IP20 Recommended Screw Driver: M3; Pozidriv 1 Tightening Torque: Control Circuit 0.8 ... 1.1 N·m; Main Circuit 0.8 ... 1.1 N·m Terminal Type: Screw Terminals Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC General Use Rating UL/CSA: (300 V AC) 12 A Horsepower Rating UL/CSA: (115 V AC) Single Phase 0.25 Hp; (200 V AC) Three Phase 1 Hp; (220 ... 240 V AC) Three Phase 2 Hp; (230 V AC) Single Phase 0.5 Hp; (440 ... 480 V AC) Three Phase 3 Hp; (550 ... 600 V AC) Three Phase 1 Hp Connecting Capacity Main Circuit UL/CSA: Stranded 1/2x 22-10 AWG Connecting Capacity Auxiliary Circuit UL/CSA: Stranded 1/2x 22-10 AWG Contact Rating UL/CSA: A600 Tightening Torque UL/CSA: Auxiliary Circuit 7 in·lb; Control Circuit 7 in·lb; Main Circuit 7 in·lb Full Load Amps Motor Use: (115 V AC) Single Phase 5.8 A; (200 V AC) Three Phase 4.8 A; (220 ... 240 V AC) Three Phase 6.8 A; (230 V AC) Single Phase 4.9 A; (440 ... 480 V AC) Three Phase 4.8 A; (550 ... 600 V AC) Three Phase 1.7 A Ambient Air Temperature: Operation -20 ... +55 °C; Storage -40 ... +80 °C Maximum Operating Altitude Permissible: 2000 m Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 15g Resistance to Vibrations: 5g 5 ... 150 Hz Pollution Degree: 3 ABB EcoSolutions: Yes ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available EcoSolutions Profile: 1SFC100125C0354 End Of Life Disassembling Instructions: 1SBC100156C0263 Environmental Product Declaration - EPD: 1SAC200410H0001 Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 87.8 % A2L Certificate – IEC: 1SAA938000-4601 CB Certificate: 1SAA938000-2002 CCC Certificate: 2024010304658943 Declaration of Conformity - CE: 1SAD101100-3101 Declaration of Conformity - UKCA: 1SAD201100-3101 DNV GL Certificate: 1SAA938000-0306 RMRS Certificate: 1SAA938000-0704 UL Certificate: E191658-19881208 Object Classification Code: Q ETIM 7: EC000010 - Combination of contactors eClass: V11.0 : 27371009 UNSPSC: 39121529 IDEA Granular Category Code (IGCC): 4761 >> Magnet contactor, AC-switching E-Number (Finland): 3709118 E-Number (Norway): 4184070 EAN: 4013614413780

HS Code

8536.50

• EAN 4013614153150
• SAP 1000005496
• Code 830765
