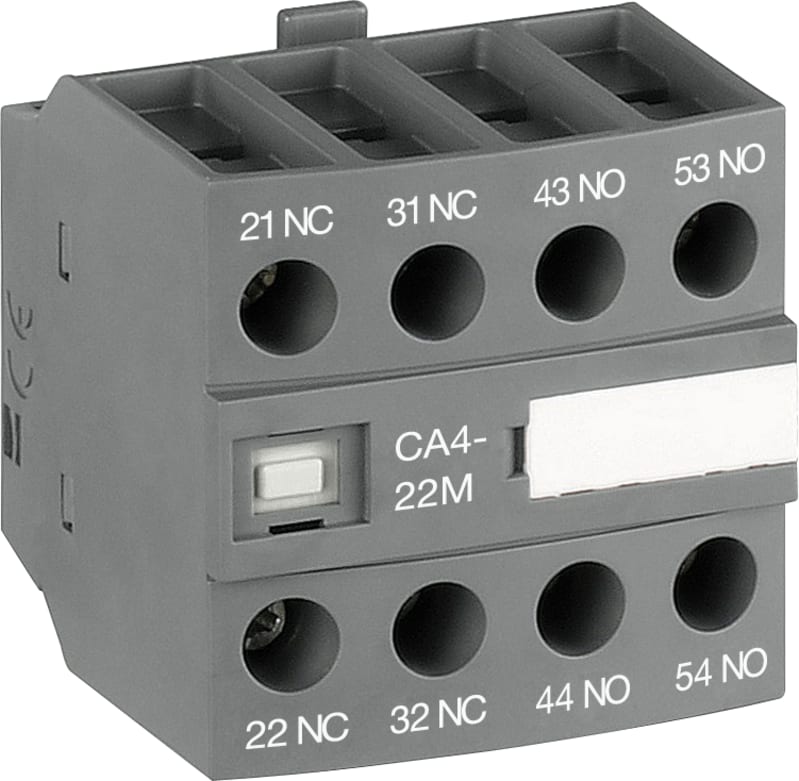

CA4-22M, 2NO+2NC auxiliary contact front

ABB CA4-22M — is a 4-pole front mounted auxiliary contact block equipped with screw terminals. CA4-.M version offers terminal assortment matching the marking of 3-pole AF(C)09.16(Z)(B)-30-10 contactors. CA4-22M is available with 2 N.O. and 2 N.C. instantaneous contacts for standard industrial environments.

Manufacturer part number (MPN)

CA4-22M

EAN / GTIN

3471523130166

Sales unit

pcs

Contact configuration

2 NO + 2 NC

Country of Origin

Poland

Lead Time

0 day

Product Sales Status

Active

Product Net Width

43 mm

Product Net Depth / Length

39.5 mm

Product Net Height

43 mm

Number of Auxiliary Contacts NO

2

Number of Auxiliary Contacts NC

2

Number of Poles

4P

Standards

IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 60947-5-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-5-1-14

Rated Operational Voltage

Auxiliary Circuit 690 V

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I th )

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-15 (I e )

(500 V) 2 A; (690 V) 2 A; (24 / 127 V) 6 A; (220 / 240 V) 4 A; (400 / 440 V) 3 A

Rated Operational Current DC-13 (I e )

(24 V) 6 A / 144 W; (48 V) 2.8 A / 134 W; (72 V) 1 A / 72 W; (110 V) 0.55 A / 60 W; (125 V) 0.55 A / 69 W; (220 V) 0.27 A / 60 W; (250 V) 0.27 A / 68 W; (400 V) 0.15 A / 60 W; (500 V) 0.13 A / 65 W; (600 V) 0.1 A / 60 W

Rated Short-time Withstand Current Low Voltage (I cw )

for 0.1 s 140 A; for 1 s 100 A

Rated Insulation Voltage (U i )

acc. to IEC 60947-5-1 690 V; acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U imp )

6 kV

Maximum Electrical Switching Frequency

(AC-15) 1200 cycles per hour; (DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency

3600 cycles per hour

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Rigid Solid 1/2x 1 ... 2.5 mm²; Rigid Stranded 1/2x 1 ... 2.5 mm²

Wire Stripping Length

Auxiliary Circuit 10 mm

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Tightening Torque

Auxiliary Circuit 1.2 N·m

Terminal Type

Screw Terminals

Suitable For

AF09; AF09Z; AF12; AF12Z; AF16; AF16Z; AFC09; AFC12; AFC16; AF09B; AF09ZB; AF12B; AF12ZB; AF16B; AF16ZB

Connecting Capacity Auxiliary Circuit UL/CSA

Rigid Solid 1/2x 18-14 AWG; Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL/CSA

Auxiliary Circuit 11 in·lb

A2L Certificate – UL

9AKK108469A4897; 9AKK108469A4898

ABS Certificate

ABS_26-0348269-PDA_FR

BV Certificate

BV_2634H24900C1

CB Certificate

SE-118824

CCC Certificate

CCC_2024010305648906

Declaration of Conformity - CCC

2020980304001258; 2020980304001259

Declaration of Conformity - CE

1SBD250007U1000

Declaration of Conformity - UKCA

1SBD250038U1000

DNV Certificate

DNV_TAE00001BV-5

LR Certificate

LRS_LR23403517TA-02

RINA Certificate

RINA_ELE084013XG

RMRS Certificate

RMRS_1802703280

UL Certificate

UL-US-L252354-131-82119002-7; UL-CA-L252354-331-82119002-6

UL Listing Card

UL_E252354

Object Classification Code

K

ETIM 7

EC000041 - Auxiliary contact block

eClass

V11.0 : 27371302

UNSPSC

39121522

IDEA Granular Category Code (IGCC)

4743 >> Auxiliary contact block

E-Number (Finland)

3706515

E-Number (Sweden)

3211420

HS Code

8538.90

• EAN 3471523130166
• SAP 1000225412
• Code 8945973
