CA4-10, 1NO Auxiliary contact frontm.

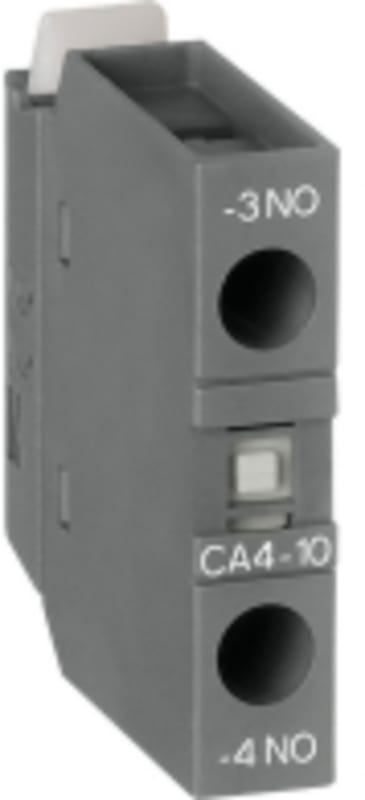

ABB CA4-10 — is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AF(C)09(Z)(B).96 contactors and NF(C)(Z)(B) contactor relays. CA4-10 is available with 1 N.O. instantaneous contacts for standard industrial environments.

Manufacturer part number (MPN)

CA4-10

EAN / GTIN

3471523130005

Sales unit

pcs

Contact configuration

1 NO

Country of Origin

Czechia

Lead Time

0 day

Product Sales Status

Active

Configuration Only

No

Criticality

No

Note

No

Product Availability Class

Replaced

Replacement Part ID

3AUA0000091262

Storage Location

4001

Product Net Width

9.9 mm

Product Net Depth / Length

39.5 mm

Product Net Height

43 mm

Number of Auxiliary Contacts NO

1

Number of Auxiliary Contacts NC

0

Number of Poles

1P

Standards

IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 60947-5-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-5-1-14

Rated Operational Voltage

Auxiliary Circuit 690 V

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I th )

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-15 (I e )

(500 V) 2 A; (690 V) 2 A; (24 / 127 V) 6 A; (220 / 240 V) 4 A; (400 / 440 V) 3 A

Rated Operational Current DC-13 (I e )

(24 V) 6 A / 144 W; (48 V) 2.8 A / 134 W; (72 V) 1 A / 72 W; (110 V) 0.55 A / 60 W; (125 V) 0.55 A / 69 W; (220 V) 0.27 A / 60 W; (250 V) 0.27 A / 68 W; (400 V) 0.15 A / 60 W; (500 V) 0.13 A / 65 W; (600 V) 0.1 A / 60 W

Rated Short-time Withstand Current Low Voltage (I cw )

for 0.1 s 140 A; for 1 s 100 A

Rated Insulation Voltage (U i )

acc. to IEC 60947-5-1 690 V; acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U imp )

6 kV

Maximum Electrical Switching Frequency

(AC-15) 1200 cycles per hour; (DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency

3600 cycles per hour

Power Loss

at 6 A per Pole 0.1 W

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Rigid 1/2x 1 ... 2.5 mm²; Rigid Solid 1/2x 1 ... 2.5 mm²; Rigid Stranded 1/2x 1 ... 2.5 mm²

Wire Stripping Length

Auxiliary Circuit 10 mm

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Tightening Torque

Auxiliary Circuit 1.2 N·m

Terminal Type

Screw Terminals

Suitable For

AF09; AF09Z; AF12; AF12Z; AF16; AF16Z; AF26; AF26Z; AF30; AF30Z; AF38; AF38Z; AF40; AF52; AF65; AF80; AF96; AFC09; AFC12; AFC16; AFC26; AFC30; AFC38; AFC40; AFC52; AFC65; AFC80; AFC96; AF09B; AF09ZB; AF12B; AF12ZB; AF16B; AF16ZB; AF26B; AF26ZB; AF30B; AF30ZB; AF38B; AF38ZB; AF40B; AF52B; AF65B; AF80B; AF96B; NF22E; NFZ22E; NF31E; NFZ31E; NF40E; NFZ40E; NFC22E; NFC31E; NFC40E; NFZB22E; NFB22E; NFZB31E; NFB31E; NFZB40E; NFB40E

Connecting Capacity Auxiliary Circuit UL/CSA

Rigid Solid 1/2x 18-14 AWG; Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL/CSA

Auxiliary Circuit 11 in·lb

A2L Certificate – UL

9AKK108469A4897; 9AKK108469A4898

ABS Certificate

ABS_26-0348269-PDA_FR; ABS_26-0348269-PDA-DUP_CN

BV Certificate

BV_2634H24900C1

CB Certificate

FR-719194

CCC Certificate

CCC_2024010305656857; CCC_2024010305656311

Declaration of Conformity - CCC

2020980304001258; 2020980304001259; 2020980304001053

Declaration of Conformity - CE

1SBD250007U1000

Declaration of Conformity - UKCA

1SBD250038U1000

DNV Certificate

DNV_TAE00001BV-5

LR Certificate

LRS_LR23403517TA-02

RINA Certificate

RINA_ELE084013XG

RMRS Certificate

RMRS_1802703280

UL Certificate

UL-US-L252354-131-82119002-7; UL-CA-L252354-331-82119002-6

UL Listing Card

UL_E252354

Object Classification Code

K

ETIM 7

EC000041 - Auxiliary contact block

eClass

V11.0 : 27371302

UNSPSC

39121522

IDEA Granular Category Code (IGCC)

4743 >> Auxiliary contact block

E-Number (Finland)

3706500

E-Number (Sweden)

3211416

HS Code

8538.90
