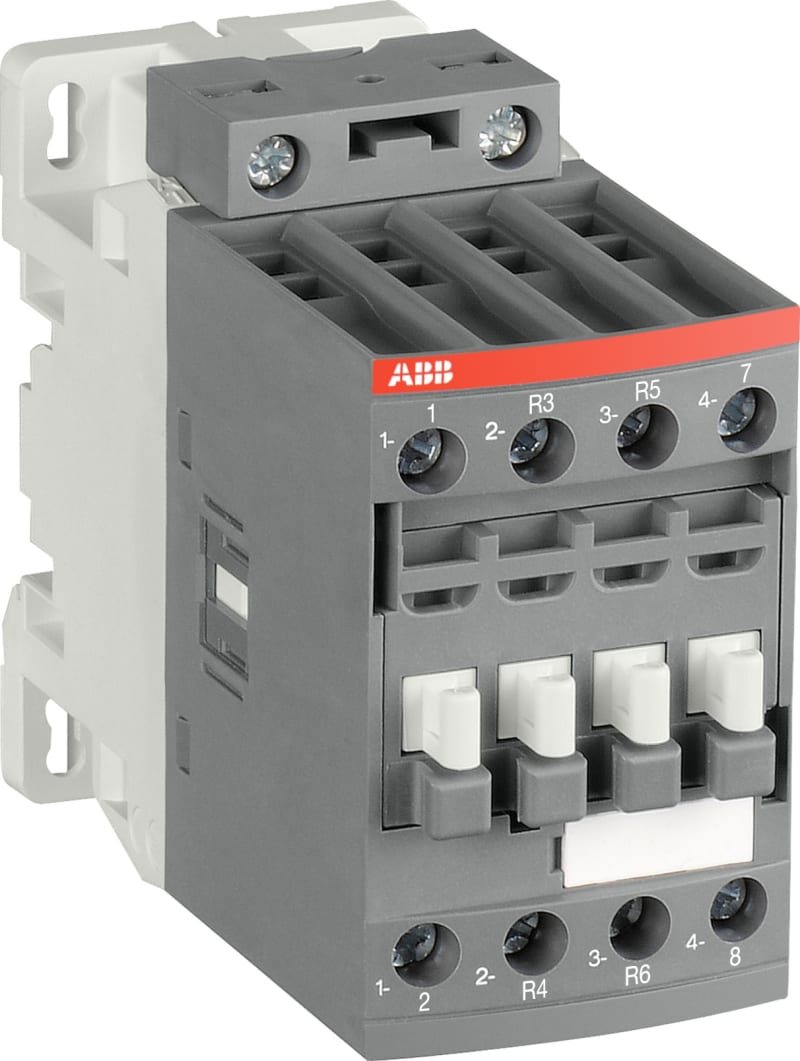

AF38Z-22-00-20, 12-20VDC (AF38Z-22-00-20 12-20VDC)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon AF38Z-22-00-20 12-20VDC AF38Z-22-00-20.
Technical Specifications
- Manufacturer part number (MPN)
- AF38Z-22-00-20 12-20VDC
- EAN / GTIN
- 3471523116900
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 86 mm
- Depth
- 101 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 11 kW
- Number of normally open contacts as main contact
- 2
- Number of normally closed contacts as main contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 22 A
- Rated operation current Ie at AC-1, 400 V
- 55 A
- Rated control supply voltage AC 50 Hz
- 12–20 V
- Rated control supply voltage AC 60 Hz
- 12–20 V
- Rated control supply voltage DC
- 12–20 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523116900
- SAP 1200092838
- Code 81961170
Product Documentation
More from ABB Automasjon
ABB Automasjon
ABB AA1-24 Shunt Trip 20-24V, 50/60 Hz for MS116/132
AA1-24 24V, 50/60HZ
ABB Automasjon

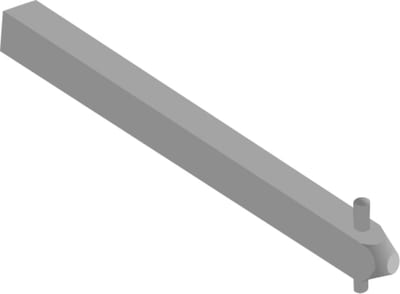

ABB OXP12X250 SHAFT for pistol handle
ABB Automasjon

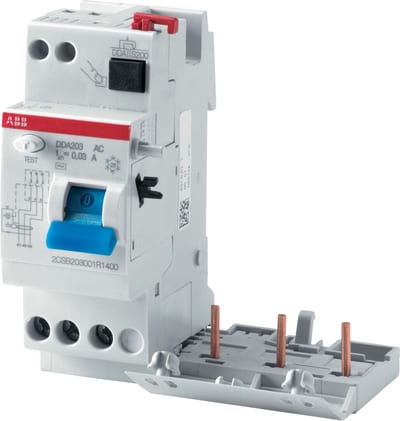

Residual Current Block DDA203A 40A30MA
2CSB203491R1400
ABB Automasjon

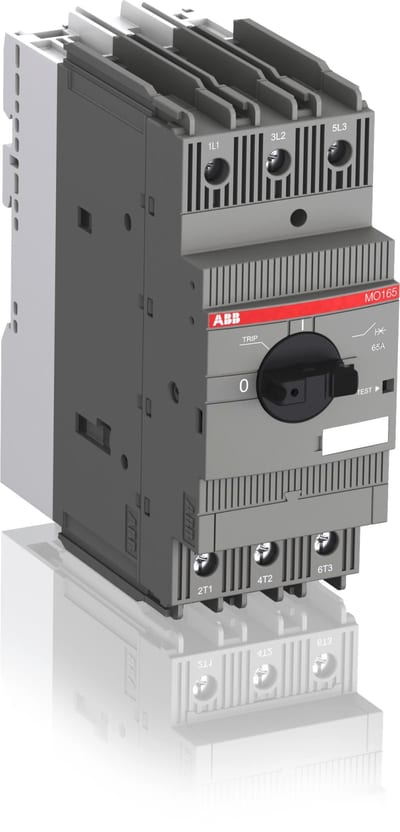

Motor protection circuit breaker-only k.sl MO165-20
ABB Automasjon

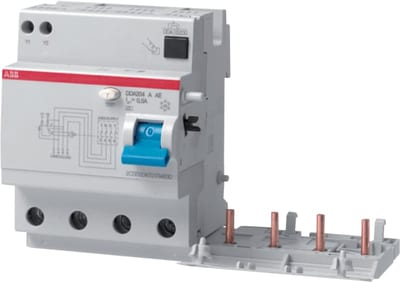

Residual Current Block DDA204A S63A/100MA
2CSB204201R2630
ABB Automasjon

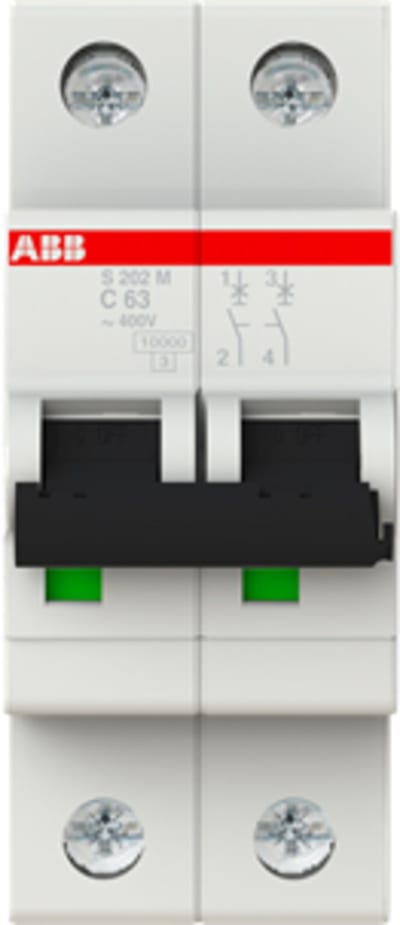

Circuit Breaker S202M-C 63
S202M-C63
ABB Automasjon

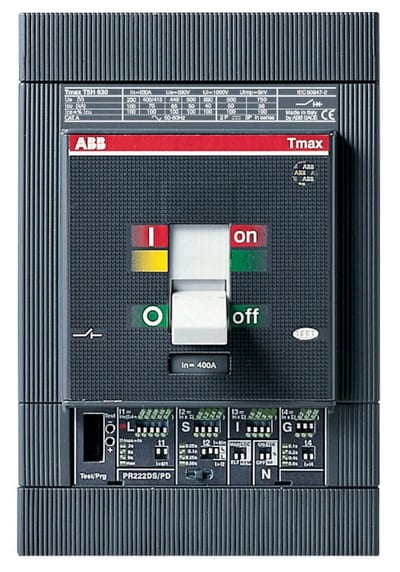

EFF.BR.3P T5N 400-Lsi In=400
T5N 400 PR222DS/P-LSI In=400 3p F F
ABB Automasjon
Contactor B 6-30-01P 24/50
B6-30-01-P-01 24V 40-450HZ
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AF38Z-22-00-20 12-20VDC?
- AF38Z-22-00-20 12-20VDC can be ordered from cballast.com as a ABB Automasjon catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB Automasjon product?
- The manufacturer part number is AF38Z-22-00-20 12-20VDC.
- What is the HS code for AF38Z-22-00-20 12-20VDC?
- The customs tariff (HS) code for AF38Z-22-00-20 12-20VDC is 8536.90.
- Who manufactures AF38Z-22-00-20 12-20VDC?
- AF38Z-22-00-20 12-20VDC is a ABB Automasjon product in the Electrical Components range.
- Is a datasheet available for AF38Z-22-00-20 12-20VDC?
- Yes — the AF38Z-22-00-20 12-20VDC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AF38Z-22-00-20 12-20VDC?
- The minimum order quantity is 1.
- Is AF38Z-22-00-20 12-20VDC available?
- Yes — AF38Z-22-00-20 12-20VDC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
