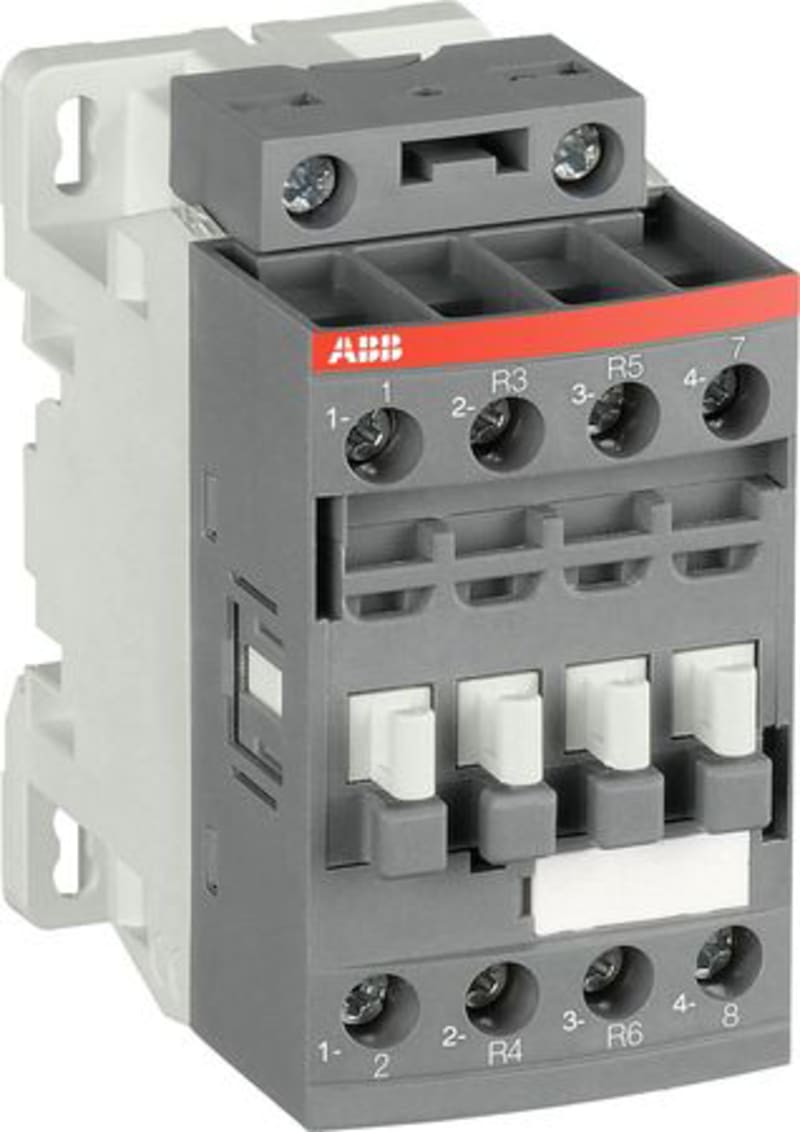

AF16Z-22-00-23 100-250V AC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon AF16Z-22-00-23 100-250V50/60HZ-DC CONTACTOR AF16Z-22-00-23 100-250V50/60HZ-DC, coil consumption<500mA for PLS.
Technical Specifications
- Manufacturer part number (MPN)
- AF16Z-22-00-23 100-250V50/60HZ-DC
- EAN / GTIN
- 3471523116733
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 86 mm
- Depth
- 77 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Number of normally open contacts as main contact
- 2
- Number of normally closed contacts as main contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 18 A
- Rated operation current Ie at AC-1, 400 V
- 30 A
- Rated control supply voltage AC 50 Hz
- 100–250 V
- Rated control supply voltage AC 60 Hz
- 100–250 V
- Rated control supply voltage DC
- 100–250 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523116733
- SAP 1000225360
- Code 8945895
Product Documentation
More from ABB Automasjon
ABB Automasjon
Terminal Cover
OSS250G1L/3
ABB Automasjon
ABB OXP6X150 PSTL Shaft 5.9 6X150
ABB Automasjon
ABB HTC T4 4P Terminal Covers HIGH 2PCS HIGH Terminal-Covers FOUR-POLE 2PCS T4
HTC T4 4p TERMINAL COVERS HIGH 2pcs
ABB Automasjon
ABB 2CDL033202R1630 Busbar PS3/30/16-DDA202T
ABB Automasjon
ABB 1SEP101852R0002 GKUF-500 Galvanized lower part with cable fixing bar and foundation
ABB Automasjon
ABB 1SDA055036R1 Extended Front Terminals 3PCS T5
ABB Automasjon
ABB 1SEP101848R0005 KO-1100 Galvanized upper part with PE/PEN bar
ABB Automasjon
Earth-fault RCD DS204 M A-B25/0,03
2CSR274101R1255
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AF16Z-22-00-23 100-250V50/60HZ-DC?
- AF16Z-22-00-23 100-250V50/60HZ-DC can be ordered from cballast.com as a ABB Automasjon catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB Automasjon product?
- The manufacturer part number is AF16Z-22-00-23 100-250V50/60HZ-DC.
- What is the HS code for AF16Z-22-00-23 100-250V50/60HZ-DC?
- The customs tariff (HS) code for AF16Z-22-00-23 100-250V50/60HZ-DC is 8536.90.
- Who manufactures AF16Z-22-00-23 100-250V50/60HZ-DC?
- AF16Z-22-00-23 100-250V50/60HZ-DC is a ABB Automasjon product in the Electrical Components range.
- Is a datasheet available for AF16Z-22-00-23 100-250V50/60HZ-DC?
- Yes — the AF16Z-22-00-23 100-250V50/60HZ-DC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AF16Z-22-00-23 100-250V50/60HZ-DC?
- The minimum order quantity is 1.
- Is AF16Z-22-00-23 100-250V50/60HZ-DC available?
- Yes — AF16Z-22-00-23 100-250V50/60HZ-DC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
