MEK./ELEKTR.Interlock

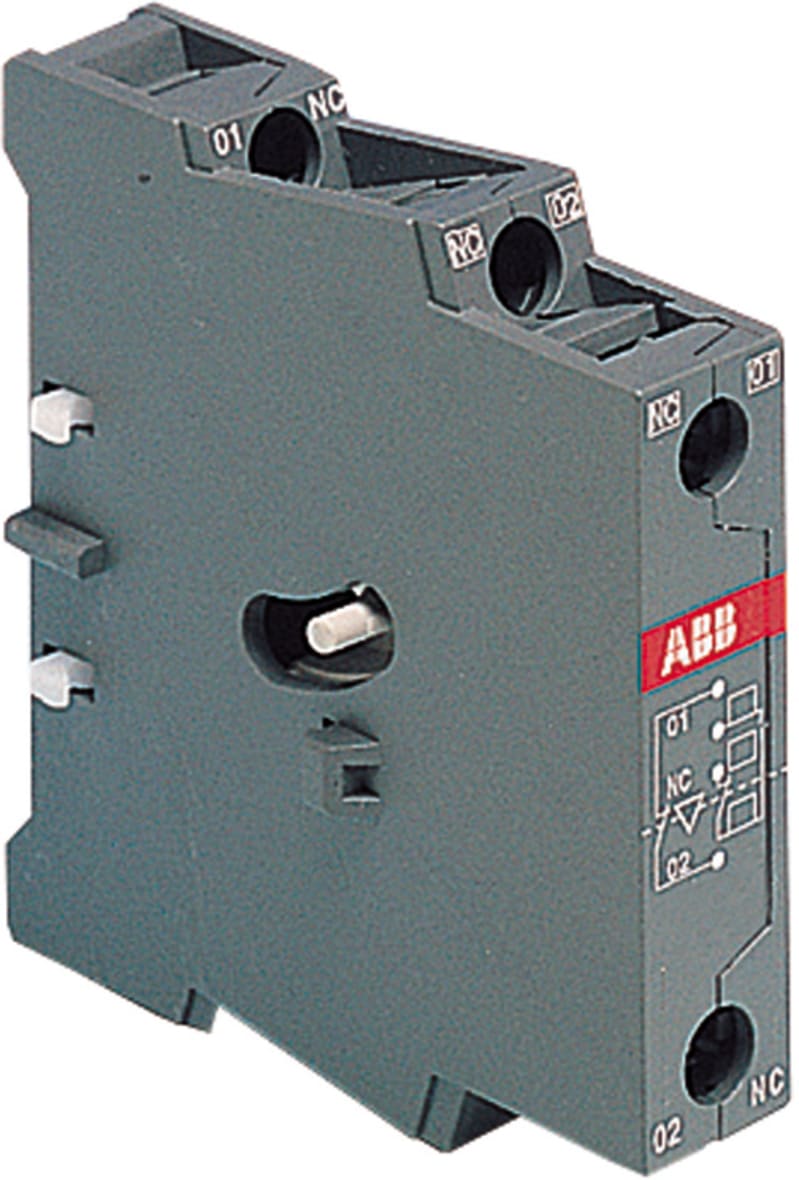

ABB VE5-2 — is a mechanical and electrical interlock unit used for the mechanical and electrical interlocking of two contactor of the A contactor serie, in the case, e.g. of reversing contactors, changeover contactors or star-delta starters.VE5-2 includes 2 built-in N.C. interlocking contacts allowing to create the electrical interlocking with wiring to the respective contactors coils.VE5-1 is available in multiple pack.

Manufacturer part number (MPN)

VE5-2

EAN / GTIN

3471522121387

Sales unit

pcs

Country of Origin

India

Lead Time

0 day

Product Sales Status

Active

Product Net Width

15 mm

Product Net Depth / Length

89.65 mm

Product Net Height

108 mm

Number of Auxiliary Contacts NC

2

Number of Poles

2P

Standards

IEC/EN 60941-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14

Rated Operational Voltage

Auxiliary Circuit 690 V

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I th )

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-15 (I e )

(500 V) 2 A; (690 V) 2 A; (24 / 127 V) 6 A; (220 / 240 V) 4 A; (380 / 400 V) 3 A

Rated Operational Current DC-13 (I e )

(24 V) 6 A; (48 V) 2.8 A; (72 V) 1 A; (125 V) 0.55 A; (250 V) 0.3 A

Short-Circuit Protective Devices

Auxiliary Circuit - gG Type Fuses 10 A

Rated Insulation Voltage (U i )

acc. to IEC 60947-5-1 690 V; acc. to UL/CSA 600 V

Mechanical Durability

5 million

Power Loss

at Rated Operating Conditions per Pole 0.1 W

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Terminal Type

Screw Terminals

Suitable For

AF45; AF50; AF63; AF75; AF95B; A30; A40; A45; A50; A63; A75; A95; A110; AE45; AE50; AE63; AE75; TAE45; TAE50; TAE75; GA75; GAE75; AX32; AX40; AX50; AX65; AX80; AX95; AX115; AX150

CB Certificate

CB_CN_37804

CCC Certificate

CCC_2016010304881659

CQC Certificate

CQC2016010304881659

Declaration of Conformity - CCC

2020970304002733

Declaration of Conformity - CE

1SBD250814U1000

Declaration of Conformity - UKCA

1SBD250831U1000

RINA Certificate

RINA_ELE172319XG001

UL Certificate

UL_20160418-E252354_5_5

ETIM 7

EC001044 - Mechanic interlock for switch

eClass

V11.0 : 27371303

UNSPSC

39122221

IDEA Granular Category Code (IGCC)

5219 >> Switch part or accessory

HS Code

8538.90
