Circuit BREAKERMOD. ED250T XT1/XT3 MOUNTING
Pricing
Request a quote
We reply within 24 hours
Product Description

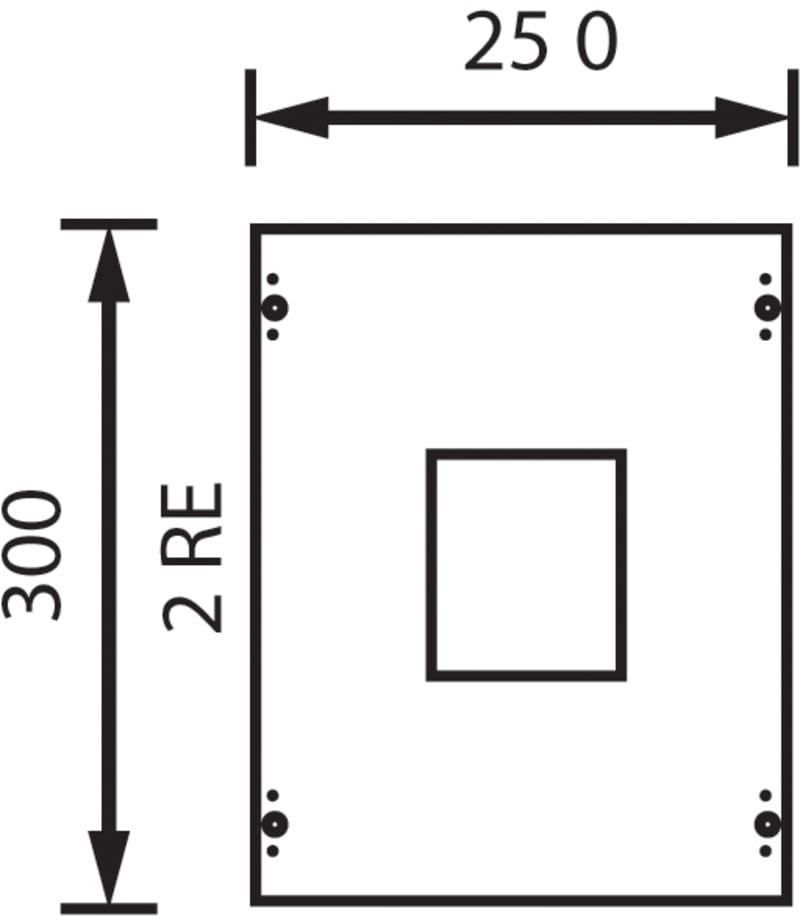

ABB 2CPX037826R9999 — Interior fitting system, Combi-Sets, mounted on EDF-Profile, for Main circuit breaker Tmax not connected, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, mounting plates of sheet steel mm, Stepless adjustable via mounting bracket, unequipped for the installation of MCCB XT1, XT3, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usable as of the cabinet depth of 200 mm, combination sets are plugged into the distributor panel at the top or bottom, and mounted on the other side of the cabinet. The EDF profiles and field connectors are included in the scope of delivery.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX037826R9999
- EAN / GTIN
- 4011617378266
- Sales unit
- pcs
- Rated Operational Current (I e )
- 250 A
- Number of Switches
- 0
- Number of DIN Rails for Mounting
- 0
- Number of Modular Spacings per DIN Rail
- 12
- Number of Panel Heights
- 2
- Number of Rows
- 0
- Design
- EDF Combi Set
- Enclosure Module Equipment
- Excludes Devices
- Device
- XT1, XT3
- Enclosure Type
- Interior fitting system
- Enclosure Type of Height
- 000
- DIN Place Units
- 24
- Meter Boards
- 0
- Module Function
- Main circuit breaker Tmax not connected
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Number of Modules
- 24
- Product Net Width
- 250 mm
- Product Net Height
- 300 mm
- Product Net Depth / Length
- 200 mm
- Section Width
- 1
- Declaration of Conformity - CE
- 2CPC100019X0201
- Mounting Type
- Stepless adjustable via mounting bracket
- ETIM 9
- EC001897 - Distributor assembly switch
- eClass
- V11.0 : 27400611
- Object Classification Code
- U
- Width
- 250 mm
- Height
- 300 mm
- Depth
- 200 mm
- With cover
- Yes
- Plastic cover plate
- Yes
- With auxiliary terminal
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- No
- Rated operation current
- 250 A
- Suitable for no-voltage switch
- No
- Suitable for reverser
- No
- Equipped with switch disconnector
- No
- Equipped with power circuit-breaker
- No
- Equipped with no-voltage switch
- No
- Equipped with reverser
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617378266
- SAP 1000073750
- Code 8741820
Product Documentation
