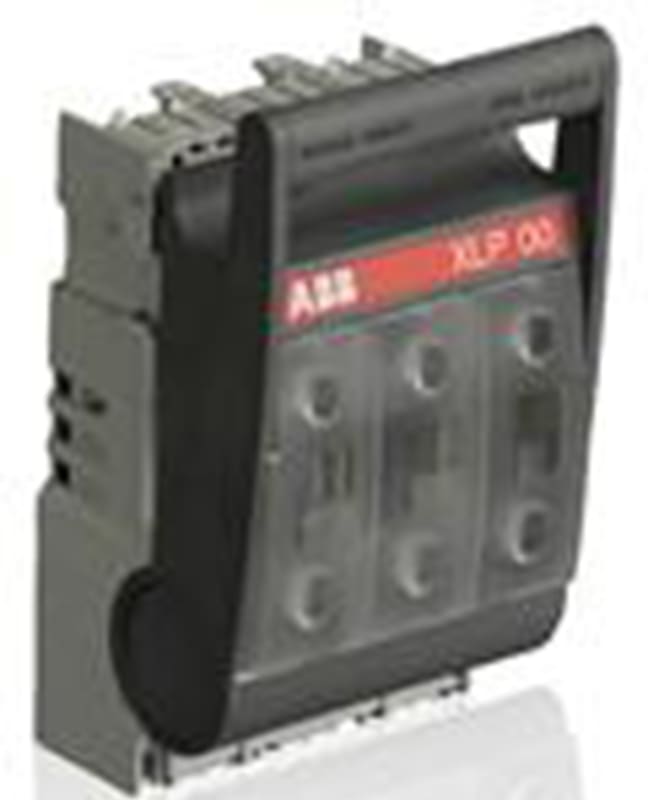

ABB 1SEP101890R0002 XLP00,3-Pole,160A, incl. 6 Bridge Clamps
Pricing
Request a quote
We reply within 24 hours
Overview
ABB Automasjon ABB 1SEP101890R0002 XLP00,3-Pole,160A, incl. 6 Bridge Clamps is listed under Switchgear & Protection / Fuse Switch-Disconnectors. HS code: 8536.90; Sales unit: pcs; Country of Origin: Bulgaria; Product Sales Status: Active; ABB EcoSolutions: Yes; Degree of Protection: IP30.
Technical Specifications
- Manufacturer part number (MPN)
- 1SEP101890R0002
- EAN / GTIN
- 7025840013402
- HS code
- 8536.90
- Sales unit
- pcs
- Country of Origin
- Bulgaria
- Lead Time
- 0 day
- Product Sales Status
- Active
- ABB EcoSolutions
- Yes
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions
- 9AKK108469A3432
- Environmental Product Declaration - EPD
- 9AKK108468A2201; 9AKK108468A2281
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 94.1 %
- Degree of Protection
- IP30
- Product Net Width
- 105 mm
- Product Net Height
- 187 mm
- Product Net Depth / Length
- 90 mm
- Device Type Manager (DTM)
- Fuseswitchdisconnector
- Electronic Fuse Monitoring
- No
- Fuse Size
- NH00; NH000
- Fuse System
- DIN
- Handle Type
- Front Cover 3P
- Mounting Type
- Baseplate
- Number of Poles
- 3P
- Power Loss
- at Rated Load 3.5 W
- Rated Conditional Short-Circuit Current (I nc )
- (690 V) 50 kiloampere rms
- Rated Current (I n )
- 160 A
- Rated Frequency (f)
- Main Circuit 50/60 Hz
- Rated Impulse Withstand Voltage (U imp )
- Main Circuit 8 kV
- Rated Operational Current AC-21B (I e )
- (690 V) 125 A
- Rated Operational Current AC-22B (I e )
- (500 V) 160 A; (800 V) 63 A; (1000 V) 125 A
- Rated Operational Current AC-23B (I e )
- (400V) 125 A
- Rated Operational Voltage
- 400 V AC; 500 V AC; 690 V AC; 800 V AC; 1000 V AC
- Rated Voltage (U r )
- 400 V AC; 500 V AC; 690 V AC; 800 V AC; 1000 V AC
- Special Functions
- Not Included
- Standards
- IEC60947-3; GB/T14048.3
- Terminal Type
- Cable Clamp
- Declaration of Conformity - CE
- 1SEP500050P0001
- Object Classification Code
- S
- ETIM 9
- EC001040 - Fuse switch disconnector
- UNSPSC
- 39121600
- eClass
- V11.1 : 27371401
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3601019
- E-Number (Norway)
- 1687108
- E-Number (Sweden)
- 2307311
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7025840013402
- SAP 1000018279
- Code 8489964
Product Documentation
