Circuit Breaker S803N-D50
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon 2CCS893001R0501 S800N, 36kA Icu, 3-pole, D-characteristic, 50A.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCS893001R0501
- EAN / GTIN
- 7612271205072
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 50 A
- Tripping characteristic
- D
- Power loss
- 12.9 W
- Built-in depth
- 82.5 mm
- Release characteristic
- D
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 4.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -40–70 °C
- Connectable conductor cross section multi-wired
- 0–50 mm²
- Connectable conductor cross section solid-core
- 0–70 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7612271205072
- SAP 1000082879
- Code 8798051
Product Documentation
More from ABB Automasjon
ABB Automasjon
ABB RC222/5 Residual Current Release — 4-pole, for Tmax T5 Moulded-Case Circuit Breaker
RC222/5 T5 4P F
ABB Automasjon
ABB TF42-0.41 Thermal Overload Relay, 0.31-0.41 A
ABB Automasjon

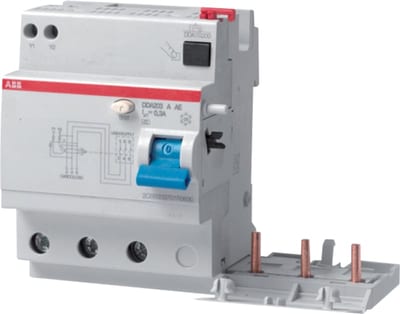

Residual Current Block DDA203A S63A/300MA
2CSB203201R3630
ABB Automasjon
Auxiliary contact CA 5-04M 4NC
1SBN010040R1104
ABB Automasjon

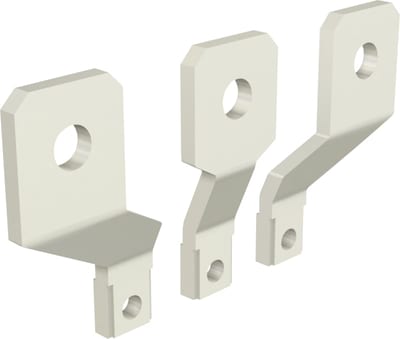

ABB KIT ES T4 3PCS Extended Front Terminals Distance 3PCS T4
ABB Automasjon

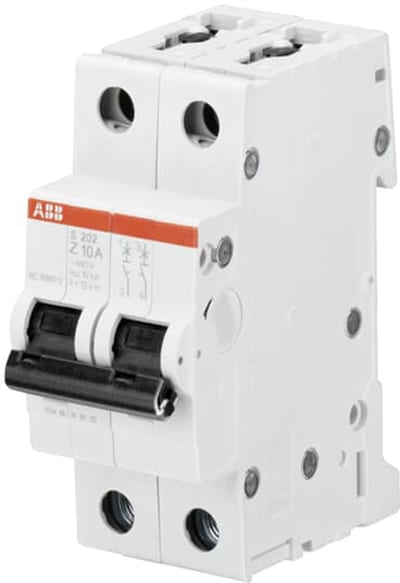

Circuit Breaker S202-Z 6
S202-Z6
ABB Automasjon

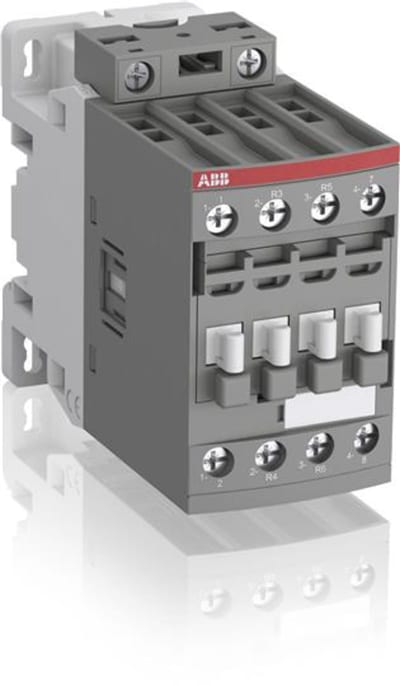

AF26Z-22-00-22, 48-130VAC/DC (AF26Z-22-00-22 48-130V50/60HZ-DC)
