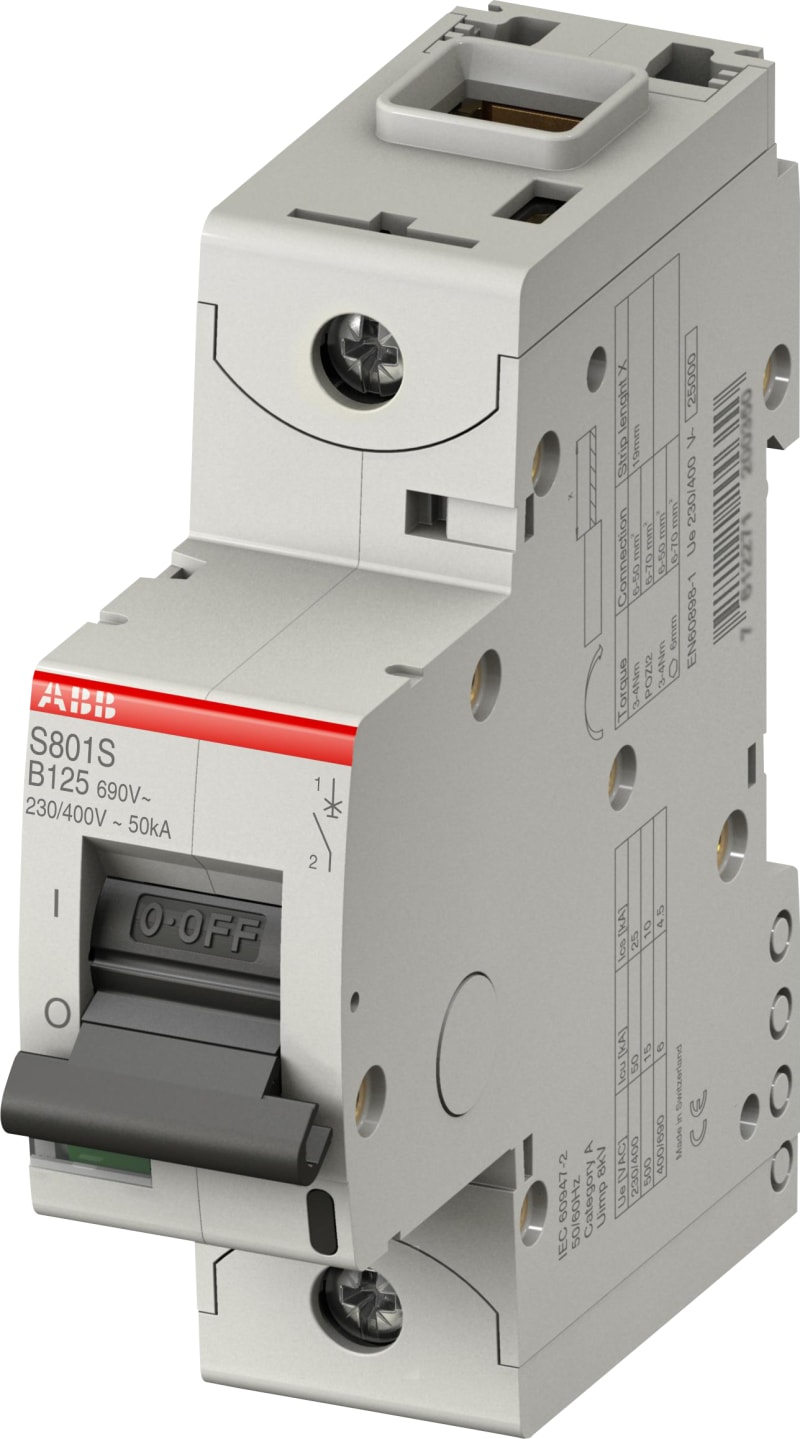

Circuit Breaker S801S-C20
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon 2CCS861001R0204 S800S, 50kA Icu, 1Pol, C-characteristic, 20A.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCS861001R0204
- EAN / GTIN
- 7612271200510
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 20 A
- Tripping characteristic
- C
- Power loss
- 3.5 W
- Built-in depth
- 82.5 mm
- Release characteristic
- C
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 1.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -40–70 °C
- Connectable conductor cross section multi-wired
- 0–50 mm²
- Connectable conductor cross section solid-core
- 0–70 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7612271200510
- SAP 1000005280
- Code 829047
Product Documentation
