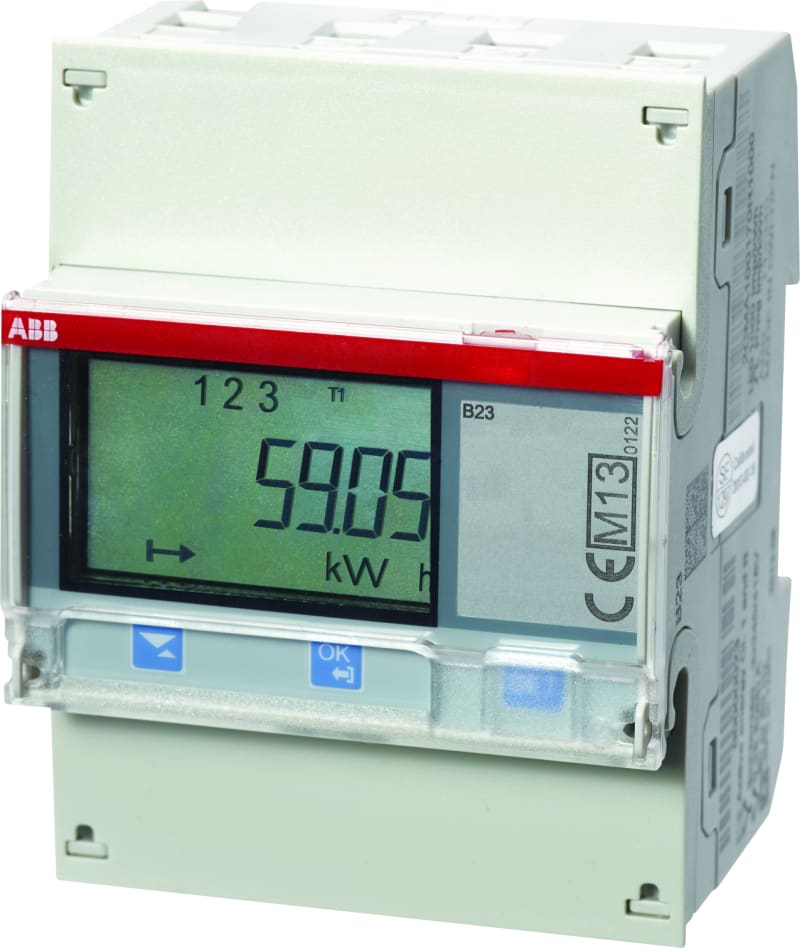

Energy Meter 3-Phase B23 113-100 Steel, Direct Connected, M-Bus + IR + Pulse
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB B23 113-100 Steel three-phase energy meter, direct connected, 3×57–288 / 3×288–500 V, 50/60 Hz, active energy class 1 and class B, M-Bus and IR interfaces, pulse output; DIN-rail mounting.
Technical Specifications
- Manufacturer part number (MPN)
- B23 113-100 Stål M-BUS
- EAN / GTIN
- 7392696001656
- Sales unit
- pcs
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 70 mm
- Model
- Direct measurement
- Height
- 26.5 mm
- Depth
- 65 mm
- Suitable for
- Purchase
- Type of indication
- Digital
- Power consumption
- 0.721 W
- Frequency
- 50–60 Hz
- Max. current (Imax)
- 65 A
- Width in number of modular spacings
- 4
- Number of positions total (counter)
- 7
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Type of interface
- M-bus (wired)
- Energy type
- Effective power
- Tariff type
- One-tariff
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Electrical
- Pulse type
- S0
- Pulse rate
- 1–999999 Imp/kWh (kvarh)
- Accuracy class
- B
- Pole type
- Four conductor
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- No
- Nominal voltage (Un) N-L
- 220–415 V
- Nominal voltage (Un) L-L
- 220–415 V
- Nominal current (In)
- 65 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 7392696001656
- SAP 1000408006
- Code 81095073
Product Documentation
More from ABB
ABB

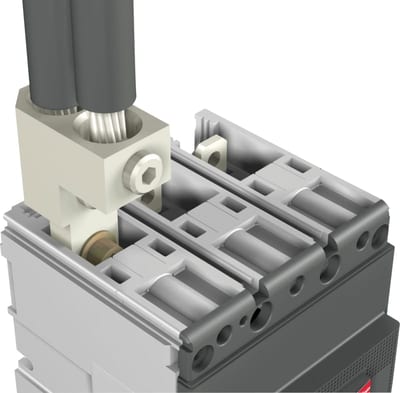

CUAL KL 1X95-240MM2 XT2, 4 PCS
KIT FC CUAL 1X120...240MM2 XT2 4PCS +ADP
ABB

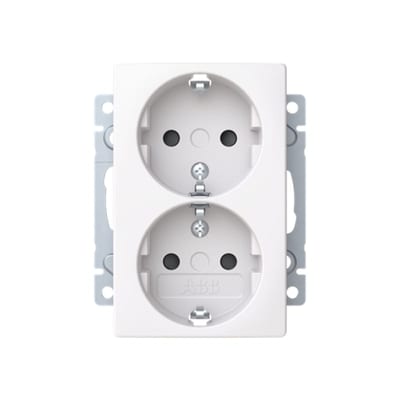

SAGA Flush Socket Double F/100MM Frame
2TKA00004879
ABB

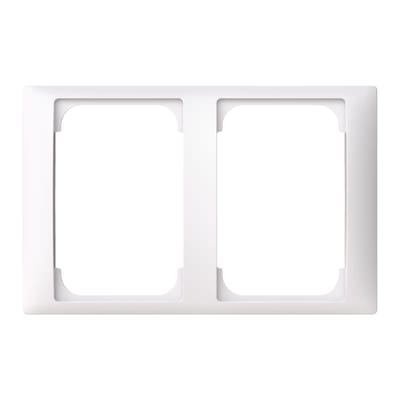

SAGA Frame 2-Hole 100mm
1722F100-916
ABB

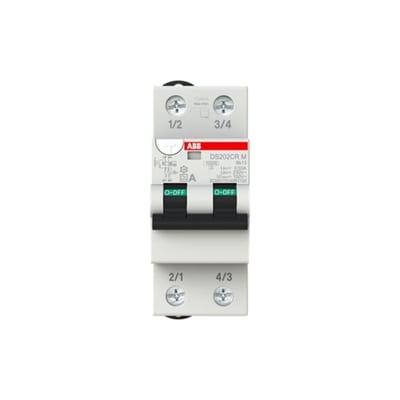

Residual Current Circuit Breaker WITH Overcurrent DS202CRM BK13A 30MA
DS202CR M Bk13 A30
ABB

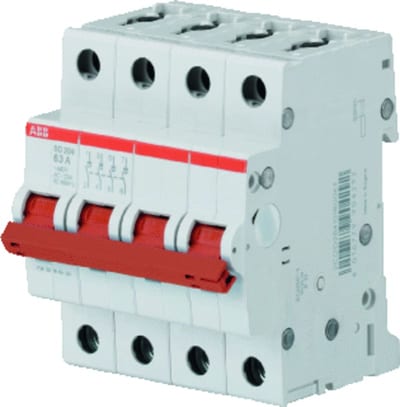

Modular Load-Break Switch SD204/40
2CDD284101R0040
ABB

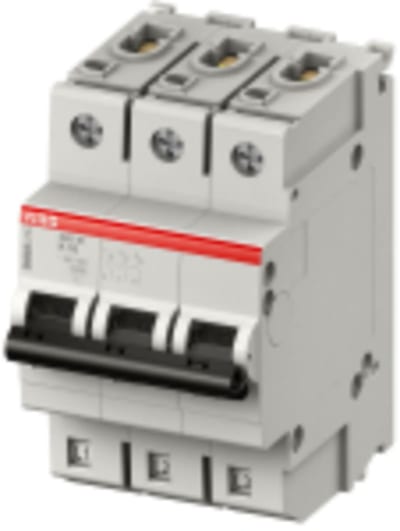

ABB S403-K40 Miniature Circuit Breaker — 3P, Type K, 40 A, 10 kA 2CCS573001R0557
ABB
ABB S203-OV50 Miniature Circuit Breaker — 3P, OV curve, 50 A, 10 kA 2CDS253202R0579
ABB

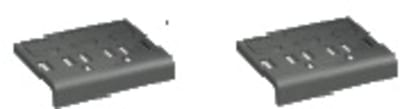

LTC XT4 4P Terminal Covers LOW 2 Pcs
