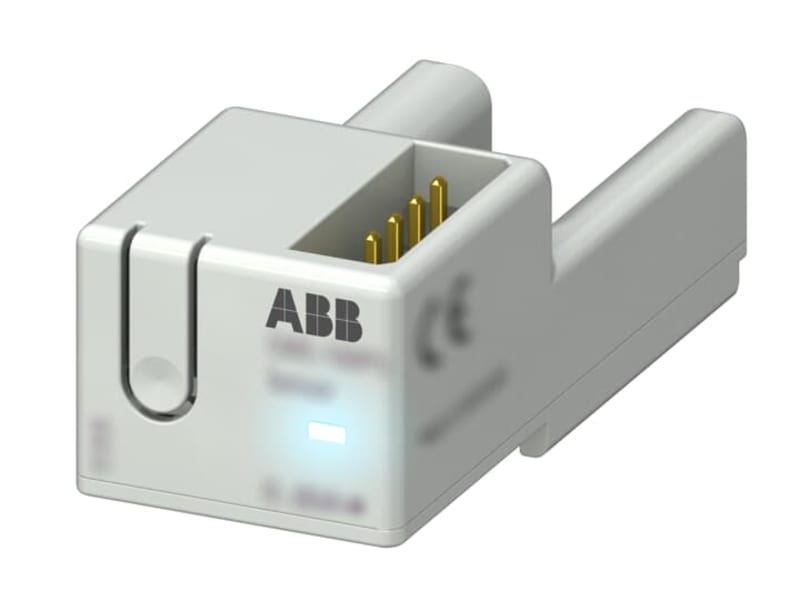

ABB 2CCA880211R0001 CMS-121PS 18mm Open-Core Sensor up tp 40A
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CCA880211R0001 CMS-121PS 18mm Open-Core Sensor up tp 40A is listed under Electrical Components / Current Transformers. HS code: 8536.90; Sales unit: pcs; EcoSolutions Profile: 9AKK108472A0172; Product Compatibility: SCU100 & SCU200; Rated Primary Current (I pn ): 40 A; Communication Interface: InSite bus(Flat cable).
Technical Specifications
- Manufacturer part number (MPN)
- 2CCA880211R0001
- EAN / GTIN
- 7612271452971
- HS code
- 8536.90
- Sales unit
- pcs
- Carbon Footprint (Full Lifecycle)
- 5.07021 kg CO₂ eq
- EcoSolutions Profile
- 9AKK108472A0172
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 74.32 %
- Sustainable Material Content in Packaging (wt. %)
- FSC Mix Cardboard - 72.29 %; FSC 100% Paper - 27.71 %
- Improved Energy Efficiency for Customers
- Process Efficiency - Product improves/optimizes process; Process Efficiency - Product contribute to making customer’s operations more resilient and reliable; Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset
- Extended Product Lifetime
- Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
- End Of Life Disassembling Instructions
- 9AKK108470A1388
- Environmental Product Declaration - EPD
- 9AKK108470A0920
- Product Compatibility
- SCU100 & SCU200
- Rated Primary Current (I pn )
- 40 A
- Communication Interface
- InSite bus(Flat cable)
- Accuracy
- 1% FS
- Measuring Range
- 0.1…40 A
- Number of Inputs
- Primary 1
- Sensor Type
- Open-core (18 mm)
- Frequency ( f )
- Rated Current 50 Hz
- Power Consumption (@P cons )
- 0.18 W
- Ambient Air Temperature
- Operation -25 ... 70 °C
- Environmental Information
- 2CCC481001D0202
- Product Net Width
- 17.4 mm
- Product Net Height
- 26.5 mm
- Product Net Depth / Length
- 41 mm
- Bore Diameter
- 10 mm
- Declaration
- CE; REACH; RoHS
- Declaration of Conformity - CE
- 2CCC005106D0201
- EU Data Act Compliance Declaration
- Not applicable
- Instructions and Manuals
- 9AKK106930A5216
- Mounting Type
- Surface Mounting
- ETIM 9
- EC002048 - Current transformer
- UNSPSC
- 41111928
- eClass
- V11.0 : 27210123
- IDEA Granular Category Code (IGCC)
- 6160 >> Current sensors
- Object Classification Code
- P
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7612271452971
- SAP 1200640223
- Code 83057452
Product Documentation
