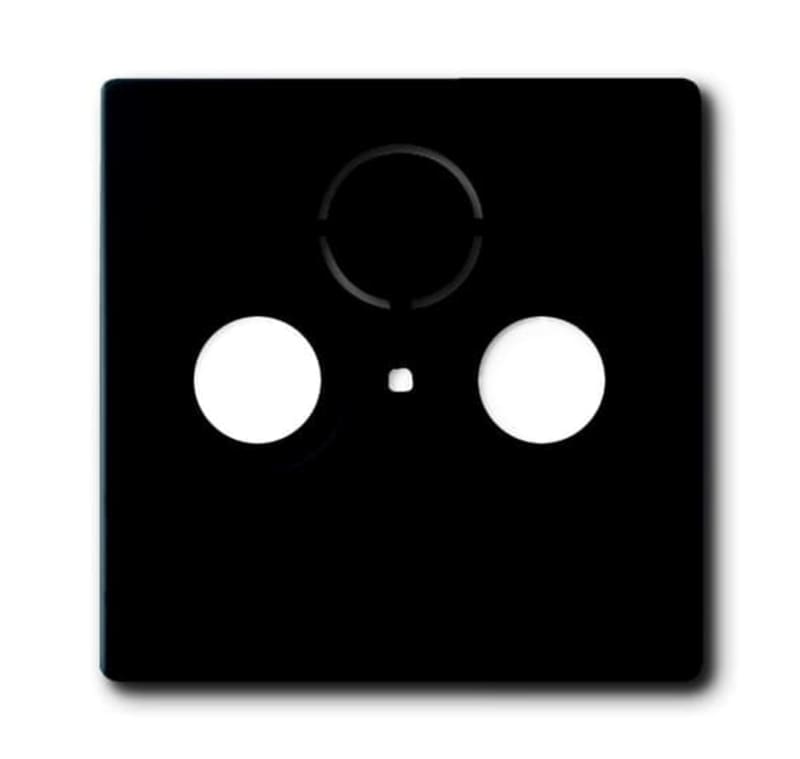

SENT.PL TV/R/SAT, Black MATT
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1743-885 IMPRESSIVO® SENTRAL PLATE TV/R/SAT, BLACK Matte.
Technical Specifications
- Manufacturer part number (MPN)
- 1743-885
- EAN / GTIN
- 4011395128695
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Central cover plate
- Colour
- Black
- Halogen free
- Yes
- With hinged lid
- No
- Utilization
- SAT
- Surface protection
- Lacquered
- Outlet direction
- Straight
- With strain relief
- No
- Material quality
- Thermoplastic
- Imprintable label
- Without indication field
- Suitable for number of connectors
- 3
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Shielded buses
- No
- Shielded housing
- No
- With lighting
- No
- Luster terminal
- No
- RAL-number (similar)
- 9005
- With dust cover
- No
- With imprint
- No
- Impact strength
- IK03
- With buses/couplings
- No
- Support ring
- No
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Device width
- 63 mm
- Device height
- 63 mm
- Device depth
- 63 mm
- Number of modules (module system)
- 1
- Min. depth of built-in installation box
- 32 mm
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395128695
- SAP 1000350548
- Code 81289673
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT7L 1600 Moulded-Case Circuit Breaker — Ekip Hi-Touch LSI, In=1250 A, 3-Pole
1SDA101524R1
ABB
ABB 1SDA066850R1 Front Terminals 4PCS XT1
ABB
Power analyser M4M 20 In/O
2CSG251161R4051
ABB

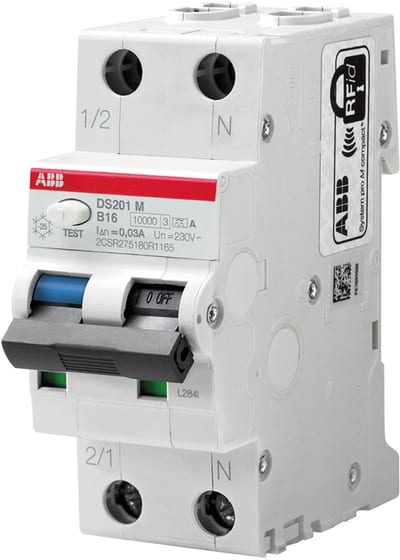

Residual Current Circuit Breaker WITH Overcurrent DS201 M C10 A300MA
2CSR275180R3104
ABB

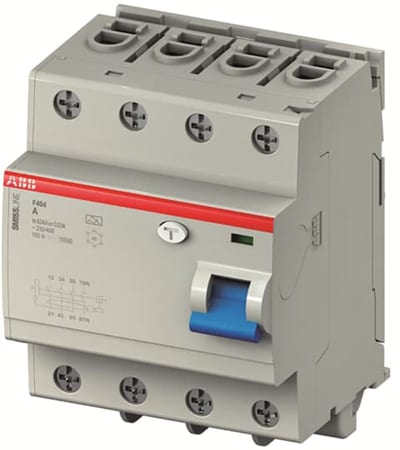

Residual Current Circuit Breaker F404 A 25/30MA
2CCF544110E0250
ABB

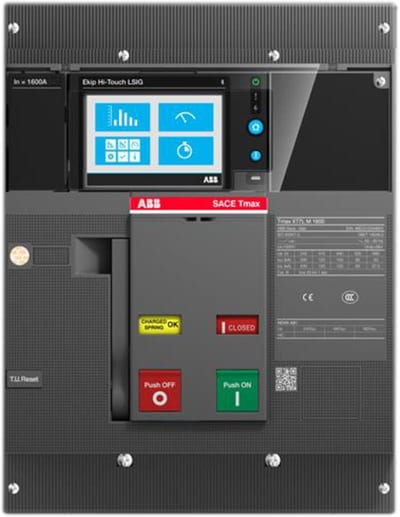

ABB SACE Tmax XT7L 1600 Moulded-Case Circuit Breaker — Ekip M Touch LRIU, In=1250 A, 3-Pole
1SDA101536R1
ABB

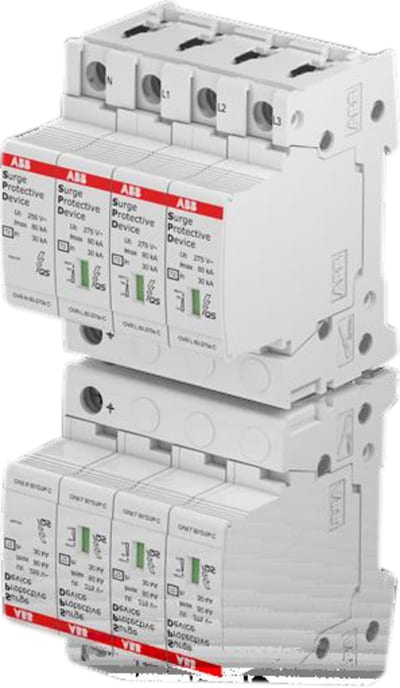

ABB 2CTB815708R2200 OVR T2 N3 80-275S P QS Surge Protective Device
ABB

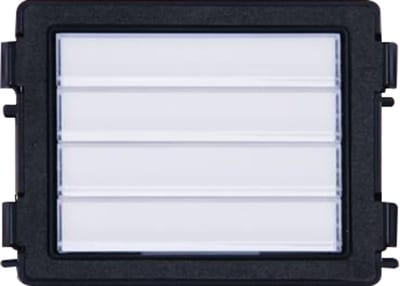

ABB 51381SP4 Outdoor station module,4/8 pushbuttons module, with LED backlight
