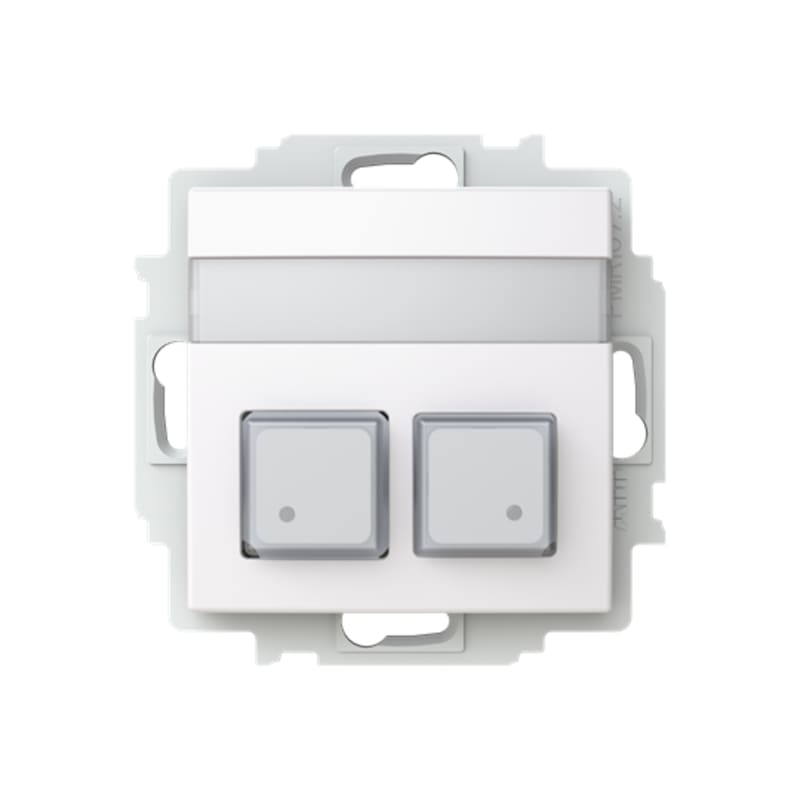

SAGA Signal PUSH-Button FAP2002 2KN
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TKA00004975 — One closing contact for each push button. Push button is planed to be used with FEH2001. Good marking possibilities. Nominal voltage of LED: 24 V AC/DC (operates 8 - 30 V AC/DC, britghtness changes). Loading capacity of switch (max) 30 V AC / 30 V DC, 100 mA AC/DC, 3 VA / 3 W.
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA00004975
- EAN / GTIN
- 6438199010953
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Instructions and Manuals
- 9AKK107492A3920
- Degree of Protection
- IP20
- Environmental Information
- 9AKK108468A8205
- Number of Batteries
- 0
- Rated Voltage (U r )
- 9.5 ... 28 V AC; 9.5 ... 35 V DC
- Input Voltage Type
- AC/DC
- Design Range
- Saga
- RAL Number
- RAL 9003 - Signal White
- Color
- White
- Product Net Width
- 71 mm
- Product Net Height
- 40 mm
- Product Net Depth / Length
- 71 mm
- Dimension Diagram
- 9AKK108470A8359
- End Of Life Disassembling Instructions
- 9AKK108468A8205
- Environmental Product Declaration - EPD
- 9AKK108468A7929
- Declaration of Conformity - CE
- 9AKK10103A2355
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC002247 - Handicapped person element for domestic switching devices
- Model
- Signalling set
- Colour
- White
- Voltage type
- AC/DC
- Nominal voltage AC
- 9.5–28 V
- Nominal voltage DC
- 9.5–35 V
- With transformer
- No
- Device width
- 71 mm
- Device height
- 40 mm
- Device depth
- 71 mm
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8531.20
Cross References
- EAN 6438199010953
- SAP 1200707784
- Code 83748674
Product Documentation
More from ABB
ABB
Meter 3F A44 452-100
2CMA170540R1000
ABB
ABB SACE Tmax XT1C 160 Moulded-Case Circuit Breaker — TMD R32, In=32 A, 3-Pole
1SDA067392R1
ABB

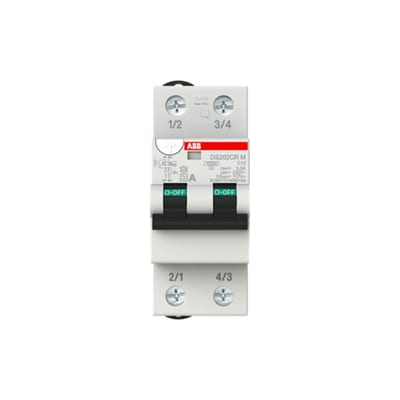

Residual Current Circuit Breaker WITH Overcurrent DS202CRM C10A 300MA
DS202CR M C10 A300
ABB
ABB S401-C25 Miniature Circuit Breaker — 1P+N, Type C, 25 A, 10 kA
2CCS571103R8254
ABB

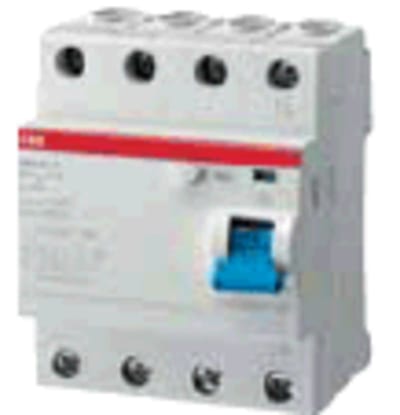

Residual Current Circuit Breaker F204 A S-125A/300MA
2CSF204201R3950
ABB

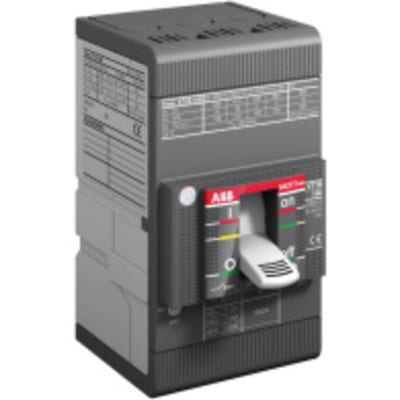

ABB SACE Tmax XT1N 160 Moulded-Case Circuit Breaker — TMD 80-800, In=80 A, 4-Pole
1SDA067423R1
ABB

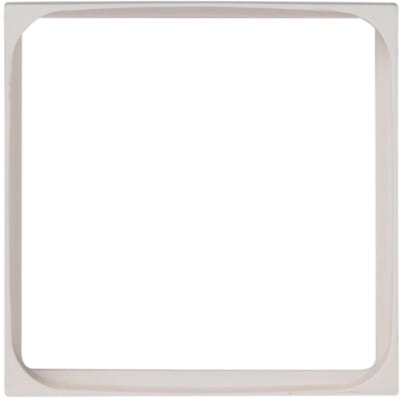

Adapter Frame Jussi FOR RS16
1415699
ABB

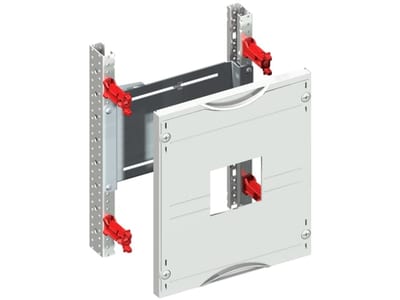

Circuit Breaker Module MBA292XT XT5, 3/4P
