PDP32 PROFIBUS DP plug f/ UMC
Pricing
Request a quote
We reply within 24 hours
Product Description

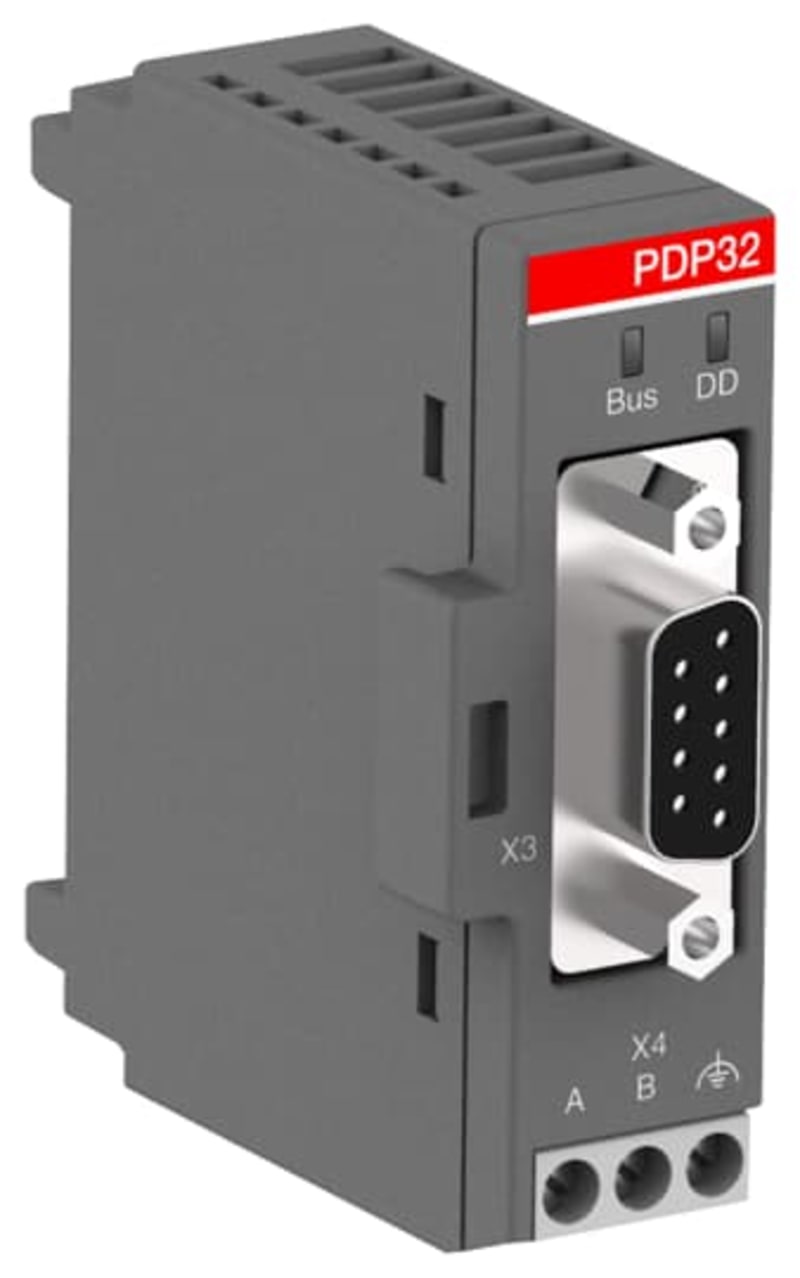

ABB 1SAJ242000R0001 — The PDP32.0 communication interface is a PROFIBUS DP (Decentralized Periphery) module and allowes the UMC100.3 to be connected to the PROFIBUS network. It can be mounted directly onto the UMC100.3 or on the SMK3.0 mounting kit.
Technical Specifications
- Manufacturer part number (MPN)
- 1SAJ242000R0001
- EAN / GTIN
- 4013614496998
- Sales unit
- pcs
- Country of Origin
- Germany
- Lead Time
- 0 day
- Product Sales Status
- Active
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 59 mm
- Product Net Height
- 64 mm
- Connecting Capacity
- 1x 0.2-2.5 mm²
- Mounting Type
- UMC100.3/Single Mounting
- Mounting on DIN Rail
- With Single Mounting KIt
- Power Loss
- Approximately 1 W
- Rated Control Supply Voltage (U s )
- 24 V DC
- Recommended Screw Driver
- Pozidriv 1
- Standards
- CAN/CSA C22.2 No.61010-1; CAN/CSA C22.2 No.61010-2-201; IEC/EN 61131-2; UL 61010-1; UL 61010-2-201
- Suitable For
- UMC100
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 0.5 N·m; Control Circuit 0.5 N·m
- Wire Stripping Length
- 7 mm
- Connecting Capacity UL/CSA
- Flexible with Ferrule 1x 28-12 AWG; Rigid 1x 28-12 AWG
- Degree of Protection
- IP20
- ABS Certificate
- 9AKK106930A7739
- ATEX Certificate
- Not available
- CB Certificate
- DK-41377-UL
- cULus Certificate
- 201410022014_10_02_E179611E179811
- Declaration of Conformity - CE
- 1SVD981004
- DNV Certificate
- TAA000015X-revision4
- EU Data Act Compliance Declaration
- 1SAC200463M0001
- eClass
- V11.0 : 27242608
- E-Number (Norway)
- 4552631
- ETIM 6
- EC001604 - Fieldbus, decentr. periphery - communication module
- IDEA Granular Category Code (IGCC)
- 3587 >> Fieldbus, decentr. periphery - communication module
- Object Classification Code
- K
- UNSPSC
- 32151802
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4013614496998
- SAP 1200640689
- Code 83056479
Product Documentation
