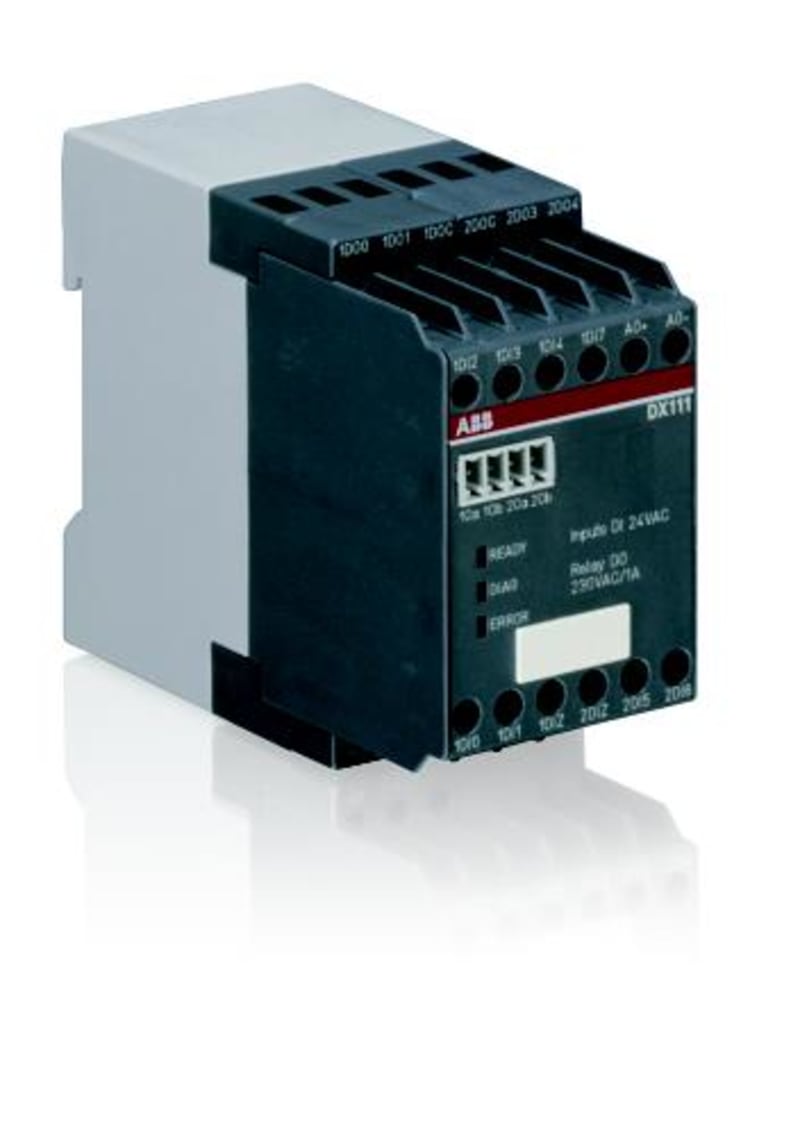

Expansion Unit DX111-FBP.0
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SAJ611000R0101 — DX111 IO-Module for UMC100, 8 DI 24 V DC, 4 DO, 1AO, Supply 24 V DC. One digital extension module can be connected at the same time.
Technical Specifications
- Manufacturer part number (MPN)
- 1SAJ611000R0101
- EAN / GTIN
- 4013614403712
- Sales unit
- pcs
- Country of Origin
- Germany
- Lead Time
- 0 day
- Product Sales Status
- Active
- Configuration Only
- No
- Product Availability Class
- Replaced
- Replacement Part ID
- 1SAJ611000R0102
- Product Net Width
- 45 mm
- Product Net Depth / Length
- 102 mm
- Product Net Height
- 78 mm
- Connecting Capacity
- 1x 0.75-2.5 mm²
- Mounting Position
- Any
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Pollution Degree
- 3
- Power Loss
- Approximately 3 W
- Rated Control Supply Voltage (U s )
- 24 V DC
- Rated Operational Current AC-15 (I e )
- (240 V) 1.5 A
- Rated Operational Current DC-13 (I e )
- (125 V) 0.22 A; (24 V) 1 A; (250 V) 0.11 A
- Rated Operational Voltage
- Auxiliary Circuit 12 ... 250 V AC/DC
- Recommended Screw Driver
- Pozidriv 1
- Short-Circuit Protective Devices
- Auxiliary Circuit - gG Type Fuses 6 A
- Standards
- CAN/CSA C22.2 No.14; IEC/EN 60947-1; IEC/EN 60947-5-1; IEC/EN 61131-2; UL 508
- Sub-Function
- 0 - 10 V
- Suitable For
- UMC100-FBP.0
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 0.22 N·m; Control Circuit 0.6 ... 0.8 N·m
- Wire Stripping Length
- 7 mm
- Connecting Capacity UL/CSA
- Flexible with Ferrule 1x 18-14 AWG; Flexible 1x 18-14 AWG; Rigid 1x 20-12 AWG
- Ambient Air Temperature
- Storage -25 ... +70 °C; Operation 0 ... +55 °C
- Degree of Protection
- IP20
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 150 m/s²
- Resistance to Vibrations
- 5g 3 … 150 Hz
- ABS Certificate
- 9AKK106930A7739
- ATEX Certificate
- Not available
- CB Certificate
- 1SAA962001-2002
- CCC Certificate
- CCC_2012010304541820
- CQC Certificate
- CQC2012010304541820
- cULus Certificate
- cULus_20220318_E48139
- Declaration of Conformity - CCC
- 2020980304001299
- Declaration of Conformity - CE
- 1SVD981039
- DNV Certificate
- DNV_E-13261
- DNV GL Certificate
- TAA000015X
- GL Certificate
- 1SAA962005-0401
- eClass
- V11.0 : 27370805
- E-Number (Finland)
- 3709075
- E-Number (Norway)
- 4552560
- ETIM 6
- EC002613 - Extension module for motor management device
- IDEA Granular Category Code (IGCC)
- 3588 >> Fieldbus, decentr. periphery - digital I/O module
- Object Classification Code
- B
- UNSPSC
- 32151802
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4013614403712
- SAP 1200640684
- Code 83056541
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT2V 160 Moulded-Case Circuit Breaker — Ekip LS/In, In=100 A, 4-Pole
1SDA068007R1
ABB
ABB SACE Tmax XT7H 1250 Moulded-Case Circuit Breaker — Ekip G Dip LS/In IN1250A, In=1250 A, 3-Pole
1SDA100936R1
ABB
ABB S204M-Z8 Miniature Circuit Breaker — 4P, Type Z, 8 A, 10 kA
2CDS274061R0408
ABB
ABB SACE Tmax XT7H 1600 Moulded-Case Circuit Breaker — Ekip Dip LS/In, In=1600 A, 3-Pole
1SDA100893R1
ABB
ABB SACE Tmax XT4S 160 Moulded-Case Circuit Breaker — MA 100 Im=500, In=100 A, 3-Pole
1SDA068437R1
ABB
ABB S201M-Z40 Miniature Circuit Breaker — 1P, Type Z, 40 A, 10 kA
2CDS271061R0558
ABB
ABB SACE Tmax XT7S 1600 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=1000 A, 3-Pole
1SDA101371R1
ABB

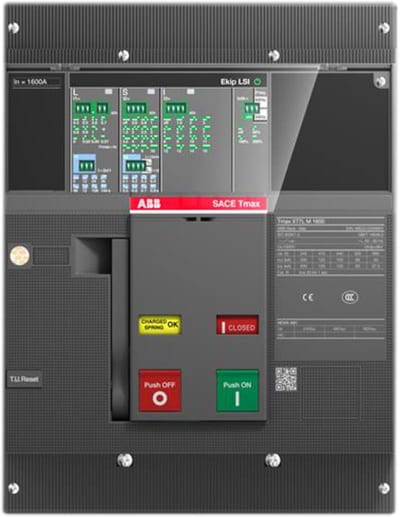

ABB SACE Tmax XT7H 1600 Moulded-Case Circuit Breaker — Ekip M Dip In, In=1250 A, 3-Pole
