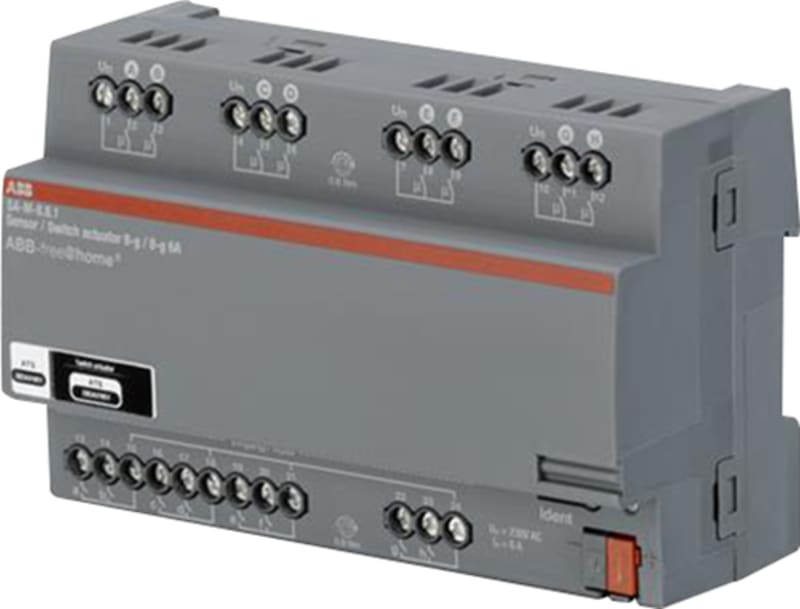

ABB SA-M-8.8.1 free@home Switch Actuator, 8-Gang, 6 A, DIN-Rail
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SA-M-8.8.1 is a free@home switch actuator with 8 outputs rated at 6 A, packaged in an 8-module DIN-rail (MDRC) case. It provides bidirectional radio-frequency control of lighting or general loads up to 1200 W per channel across differing phases. Rated 230 V, IP20; not suitable for C-loads and without local hand operation. Country of origin: Germany.
Technical Specifications
- Manufacturer part number (MPN)
- SA-M-8.8.1
- EAN / GTIN
- 4016779945561
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 6 A
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- free@home
- Radio frequency bidirectional
- Yes
- Width in number of modular spacings
- 8
- Local operation/hand operation
- No
- With LED indication
- No
- Number of digital inputs
- 8
- Max. switching power
- 1200 W
- Output power
- 1380 W
- Suitable for C-load
- No
- Max. number of switching contacts
- 8
- Max. switching current
- 6 A
- Rated operating voltage
- 230 V
- Different phases connectable
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 64.5 mm
- Modular expandability
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779945561
- SAP 1000730631
- Code 8310531
Product Documentation
