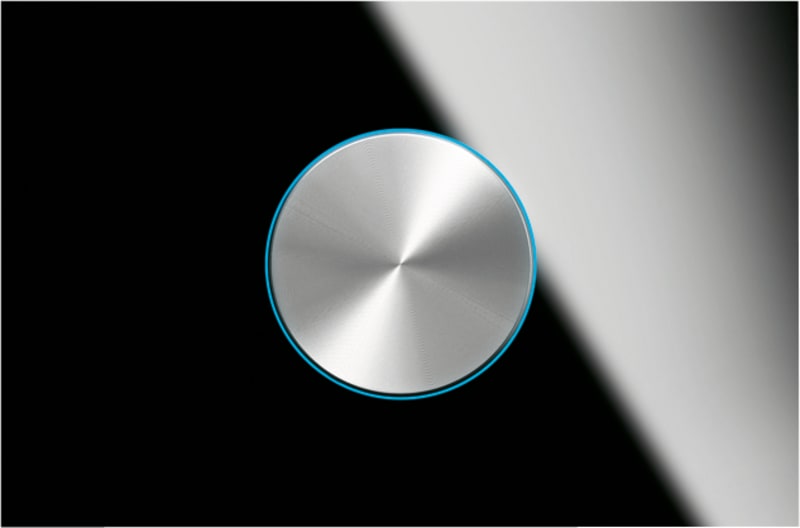

Prion Roter Button 1V 6341-825-101-500
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 6341-825-101-500 — Free programmable multi-function rotary control element. For installation in the 1gang, 2gang and 3gang support frame (6346/10-101, 6346/11-101 and 6346/12-101) Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. For the setting and control of the RTR functions and texts of the display RTR, IR, and proximity sensor end strip (6351/0x-821). Stainless steel rotary knob.
Technical Specifications
- Manufacturer part number (MPN)
- 6341-825-101-500
- EAN / GTIN
- 4011395130995
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Modular Components Included
- Cover Plate
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA001373B8687
- Number of Buttons
- 2
- Number of Actuation Points
- 1
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Design Range
- priOn
- Surface Finishing
- Glossy; Untreated
- Material
- Glass
- Color
- black
- Product Net Width
- 107 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 25 mm
- Built-In Depth ( t 2 )
- 33 mm
- Dimension Diagram
- 2CKA000097E0651
- Declaration of Conformity - CE
- 2CKA100000E1471
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0137
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000672 - Touch sensor for bus system
- eClass
- V11.0 : 27143138
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- With anti-theft/dismantling protection
- Yes
- With bus connection
- Yes
- With LED indication
- No
- With label area
- No
- With display
- No
- Surface protection
- Untreated
- Colour
- Black
- Transparent
- No
- With room temperature controller
- No
- With IR sensor
- No
- Min. depth of built-in installation box
- 33 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395130995
- SAP 1000464445
- Code 855879
Product Documentation
More from ABB
ABB

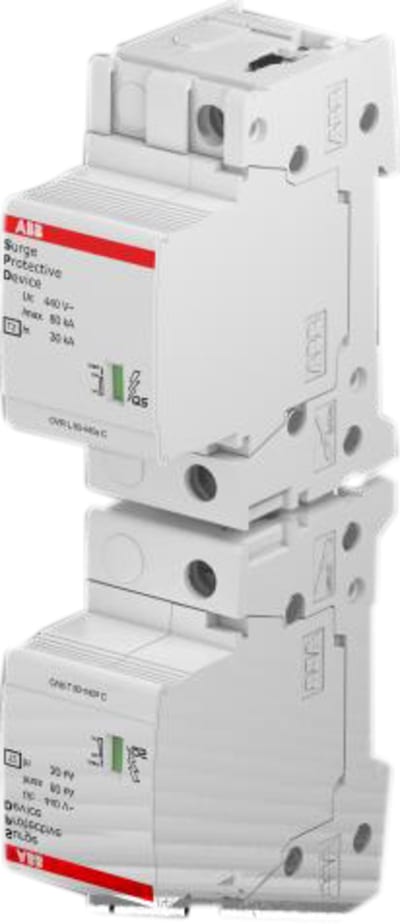

OVR T2 80-440S P QS (2CTB815708R4100)
ABB
ABB S402-D63 Miniature Circuit Breaker — 2P, Type D, 63 A, 10 kA
2CCS572001R0631
ABB

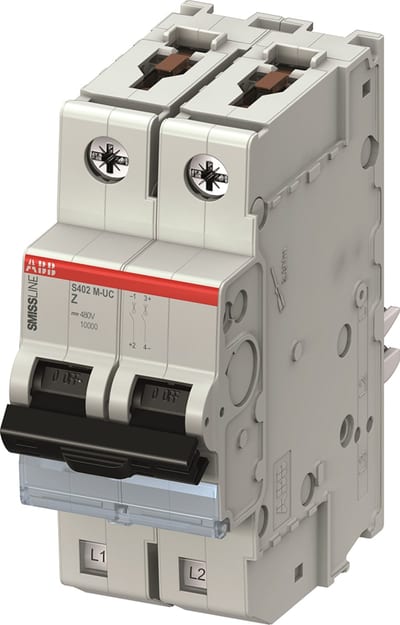

ABB S402-Z13 Miniature Circuit Breaker — 2P, Type Z, 13 A, 10 kA
2CCS572001R1138
ABB
ABB S201M-C63 Miniature Circuit Breaker — 1P, Type C, 63 A, 10 kA
2CDS271061R0634
ABB
LOAD-Break Switch OT63F6
ABB

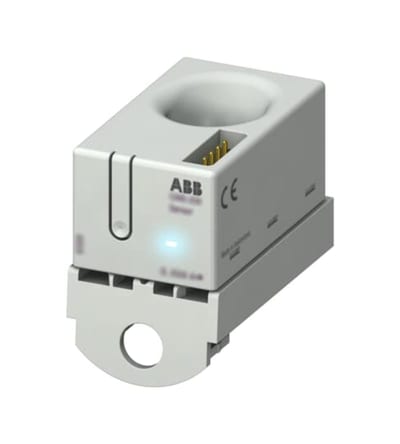

CMS-200S8 Sensor 25mm 160A S800
2CCA880136R0001
ABB

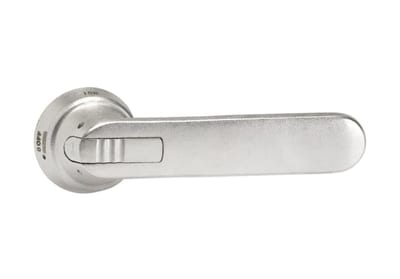

ABB 1SCA022739R1230 OHM175L12 Pistol Handle
ABB

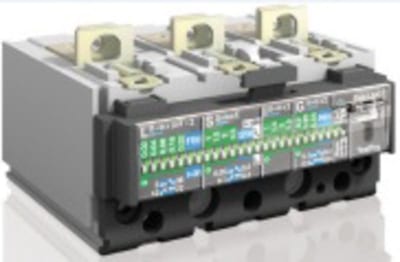

Ekip G-LS/In In=160A XT2 3P
