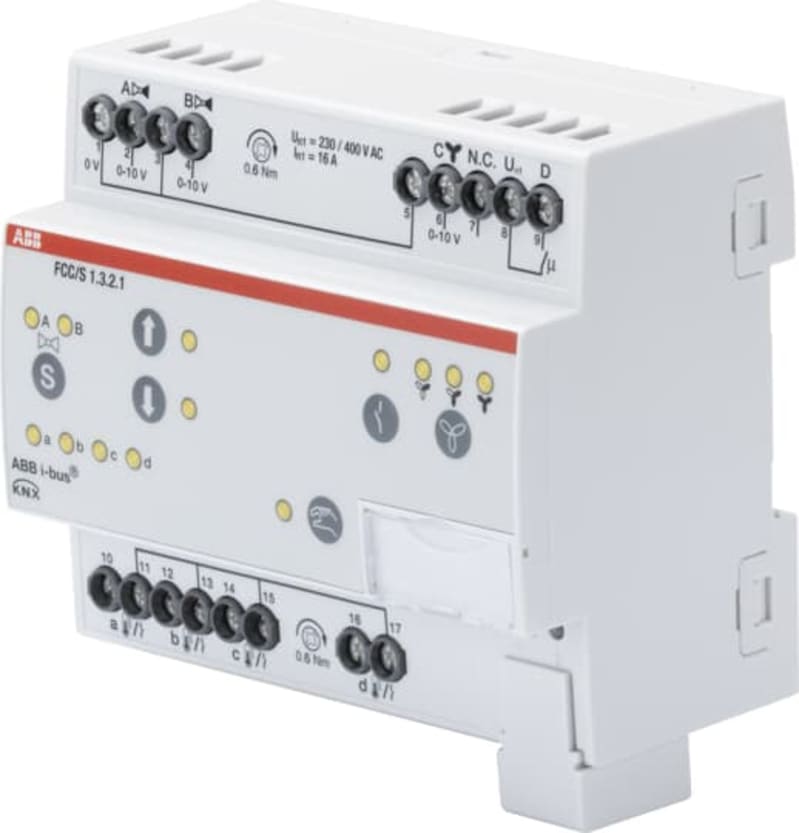

ABB 2CDG110215R0011 FCC/S1.3.2.1 KNX Fan Coil Controller
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB FCC/S1.3.2.1 is a KNX fan-coil actuator for heat-pump-driven fan coil units. It provides three 0-10 V analogue outputs, four binary inputs and four analogue (0-10 V / 4-20 mA) inputs, with local manual operation and valve-protection function. DIN-rail mount, 6 modular units wide (105 x 90 x 63.5 mm), light-grey housing.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110215R0011
- EAN / GTIN
- 4016779011471
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941188P0002
- Wiring Diagram
- 9AKK108464A0370
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC508217D0211
- Special Functions
- Valve Protection
- Number of Outputs
- 4
- Number of Digital Inputs
- 4
- Number of Inputs
- Analog (0 ... 10 V / 4 ... 20 mA) 4
- Compatible Bus Systems
- KNX (TP)
- Manipulated Variable
- Continious
- Product Range
- KNX
- Manual Operation
- Yes
- Number of Batteries
- 0
- Voltage Range
- 0 ... 10 V DC
- Maximum Switching Current
- 16 A
- Power Loss
- 3 W; Total 3 W
- Color
- light grey
- Width in Number of Modular Spacings
- 6
- Product Net Width
- 105 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 63.5 mm
- Dimension Diagram
- 2CDC072026F0017
- EPLAN Data
- 9AAC189188_EPLAN
- CB Certificate
- 9AKK107991A3187
- Declaration of Conformity - CE
- 2CDK508226D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0669
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001586 - Heating actuator for bus system
- eClass
- V11.0 : 27143147
- UNSPSC
- 39121801
- Object Classification Code
- A
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- With bus connection
- Yes
- Bus module detachable
- No
- Correcting variable consistent
- Yes
- Correcting variable switching
- Yes
- Valve protection function
- Yes
- Manual switch
- Yes
- Max. switching current (resistive load)
- 16 A
- Switching voltage
- 0–10 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4016779011471
- SAP 1200146242
- Code 82180633
Product Documentation
More from ABB
ABB

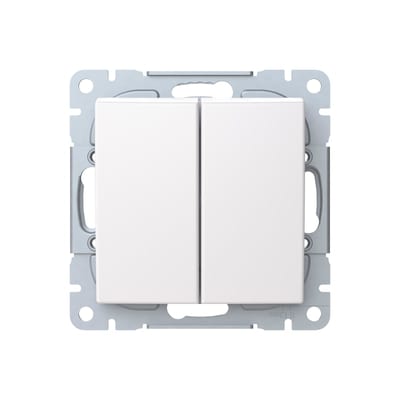

SAGA Switch 5 Flush Series without Frame 50 PK
